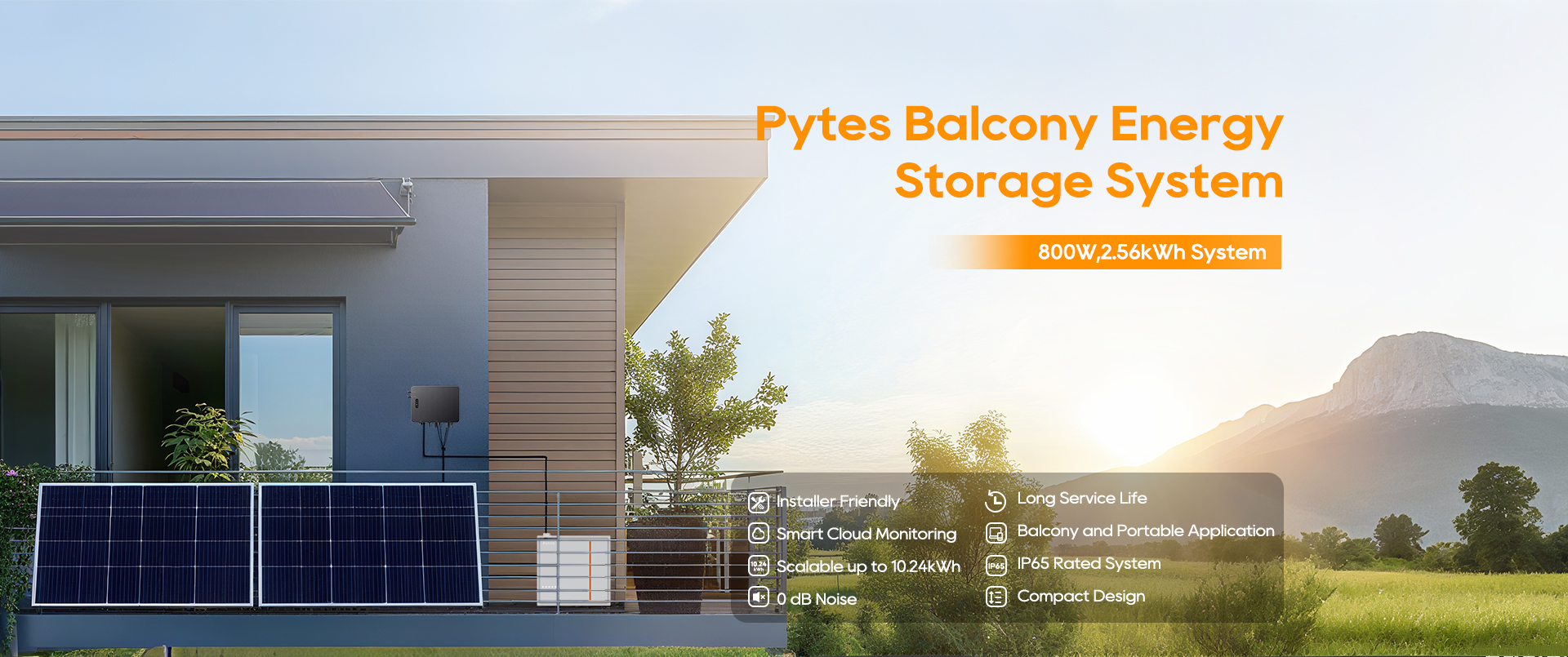

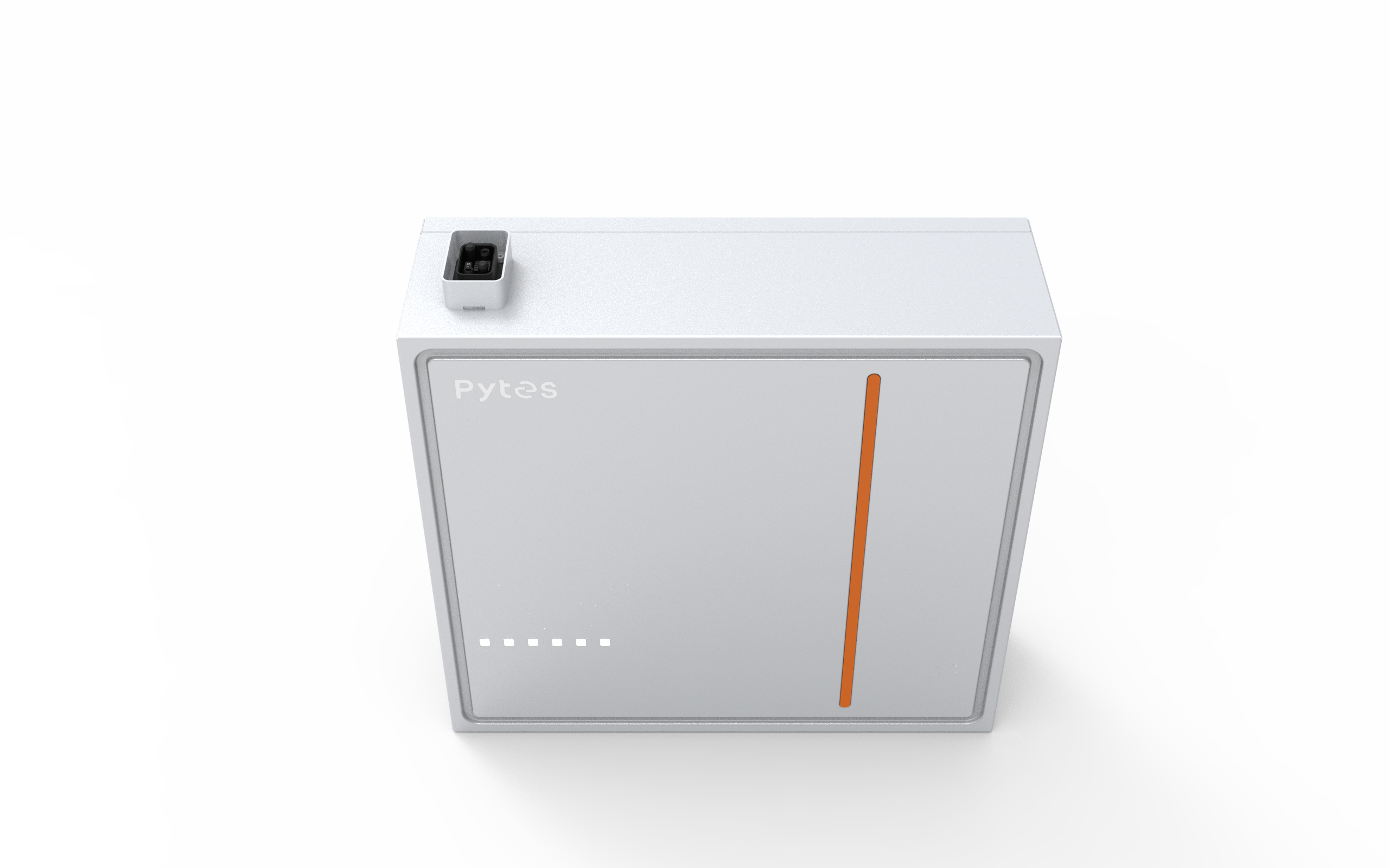

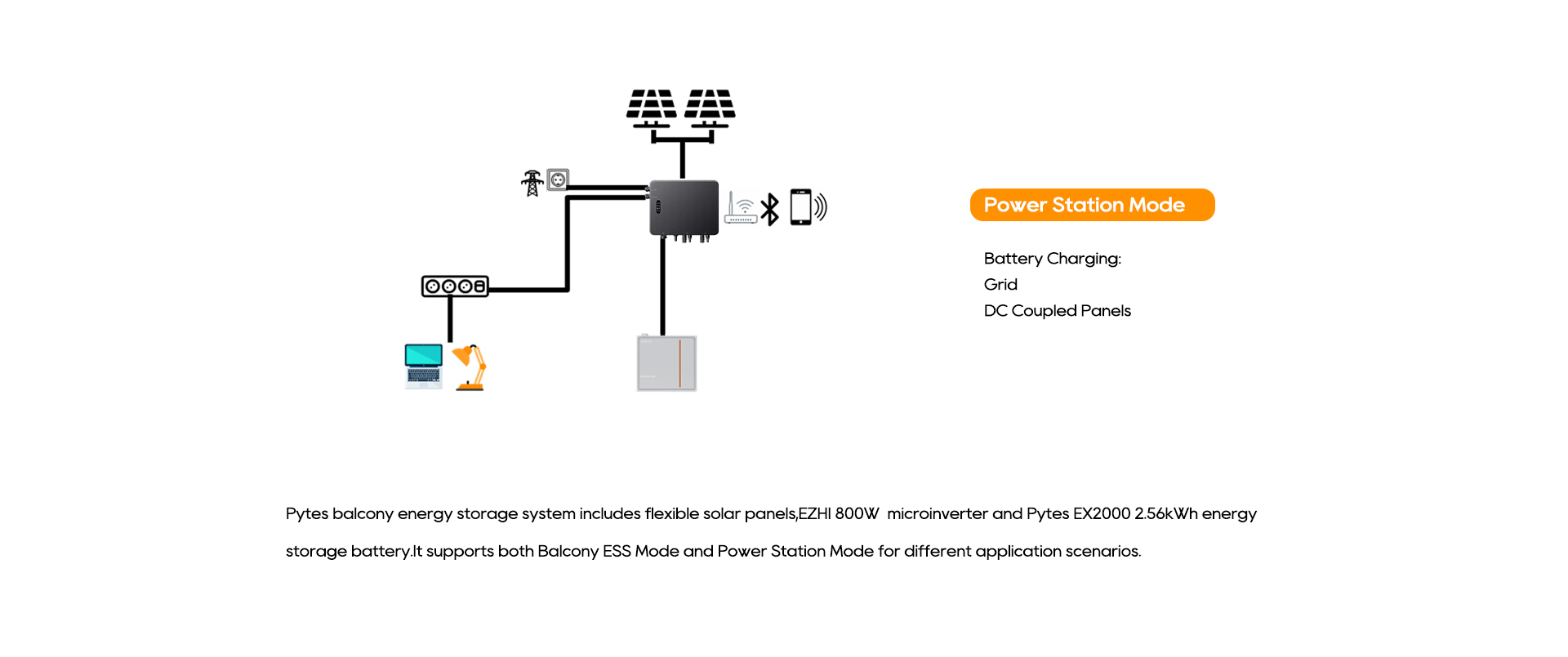

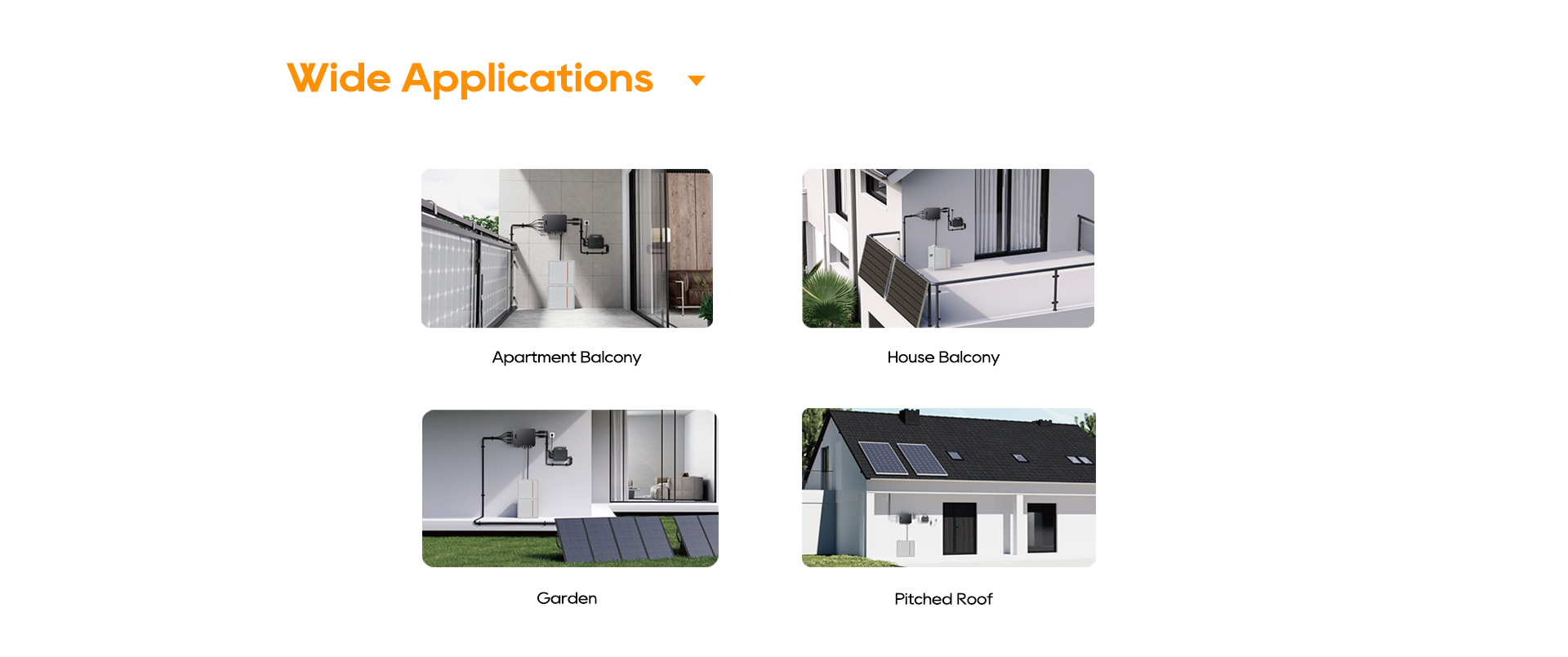

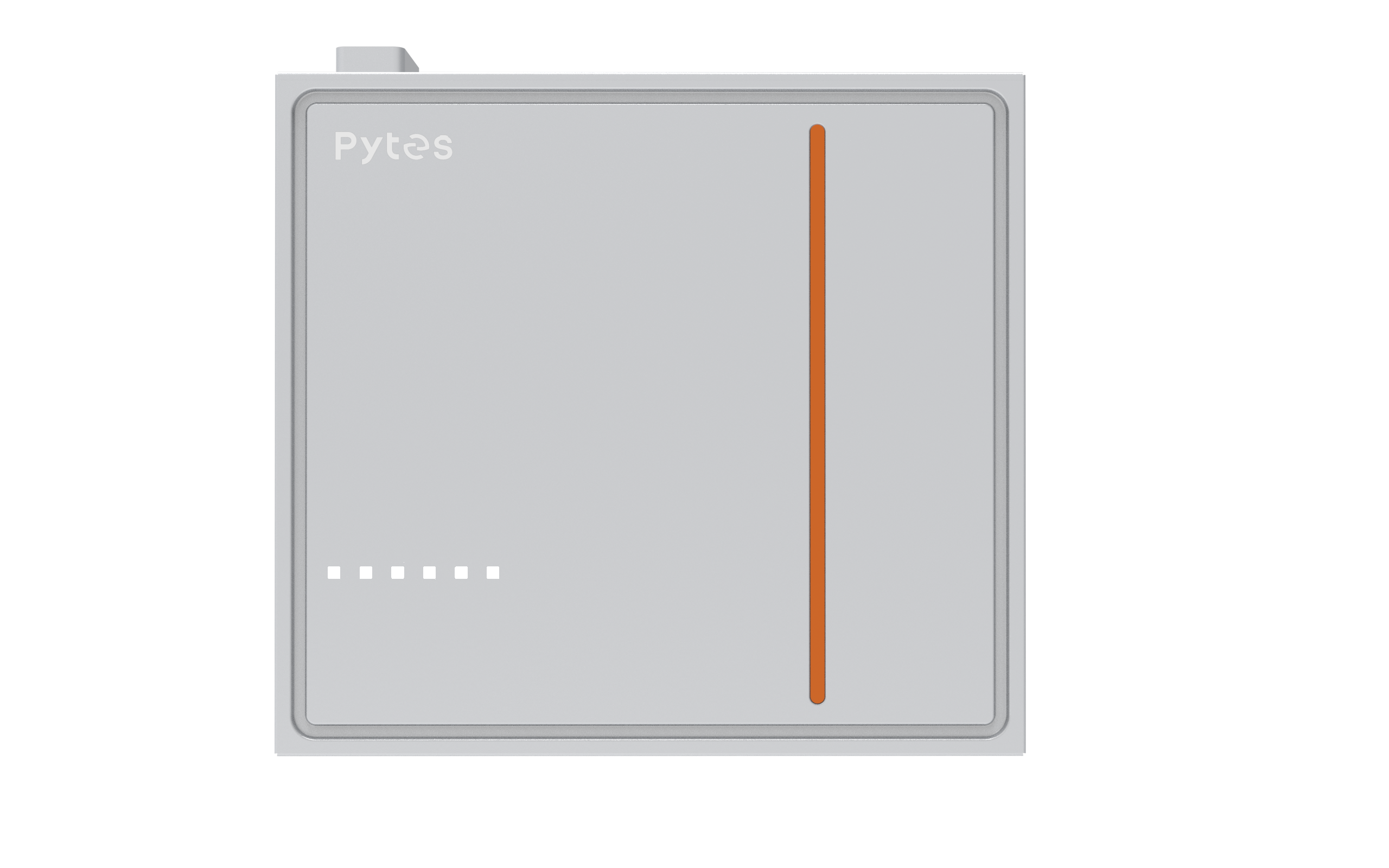

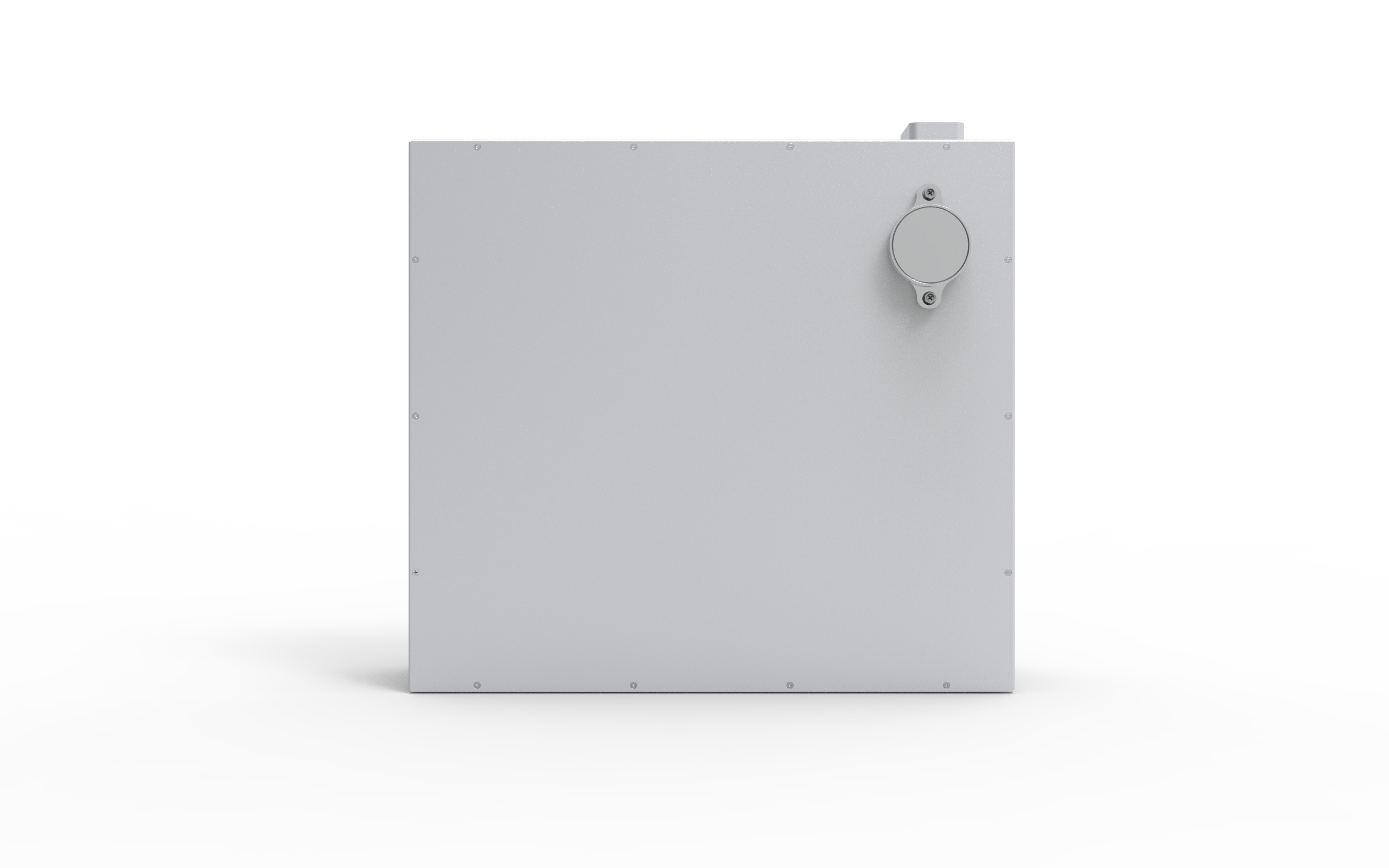

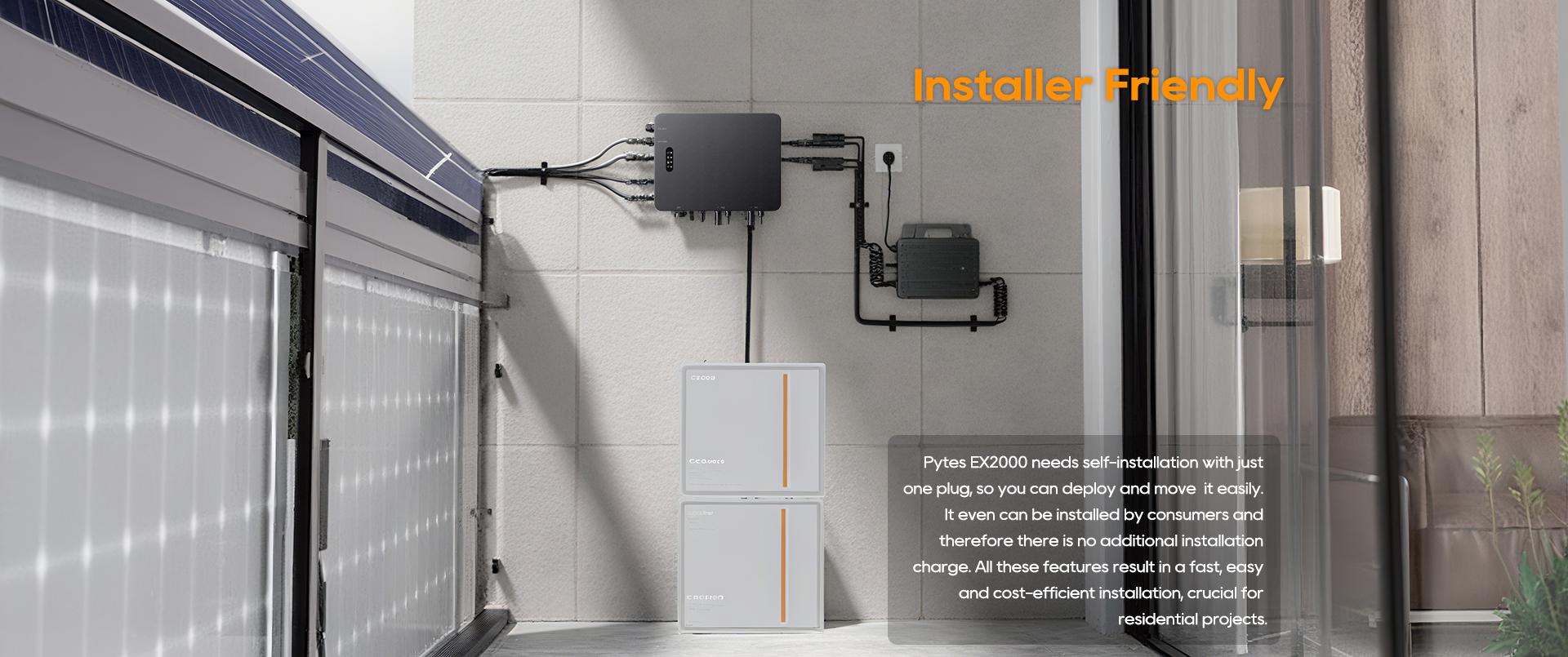

Pytes Balcony Energy Storage System is an all-in-one solar battery solution specially designed for apartment residents and urban users. With 800W output and 2.56kWh capacity, it enables easy energy independence for balconies, small rooftops, and portable scenarios. IP65-rated, silent operation (0 dB), and tool-free installation make it user-friendly and flexible. Scale up to 10.24kWh by adding more units to meet larger household or backup needs. Enjoy real-time monitoring via the Pytes smart cloud platform and harness the power of the sun with minimal space and noise. It’s the perfect choice for energy-conscious households looking to reduce bills and achieve sustainability without roof modifications or permits.

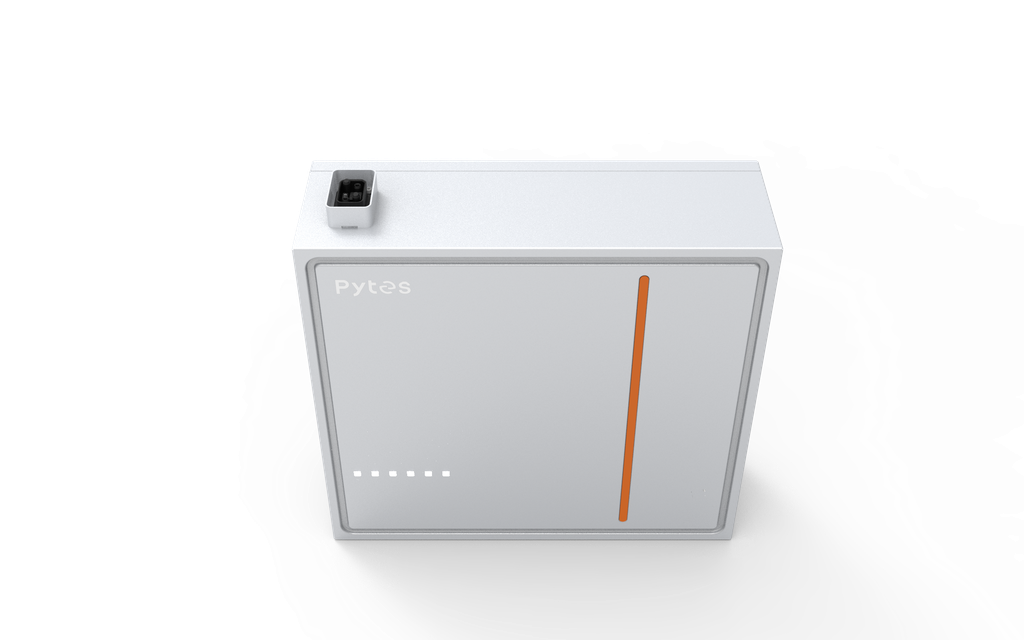

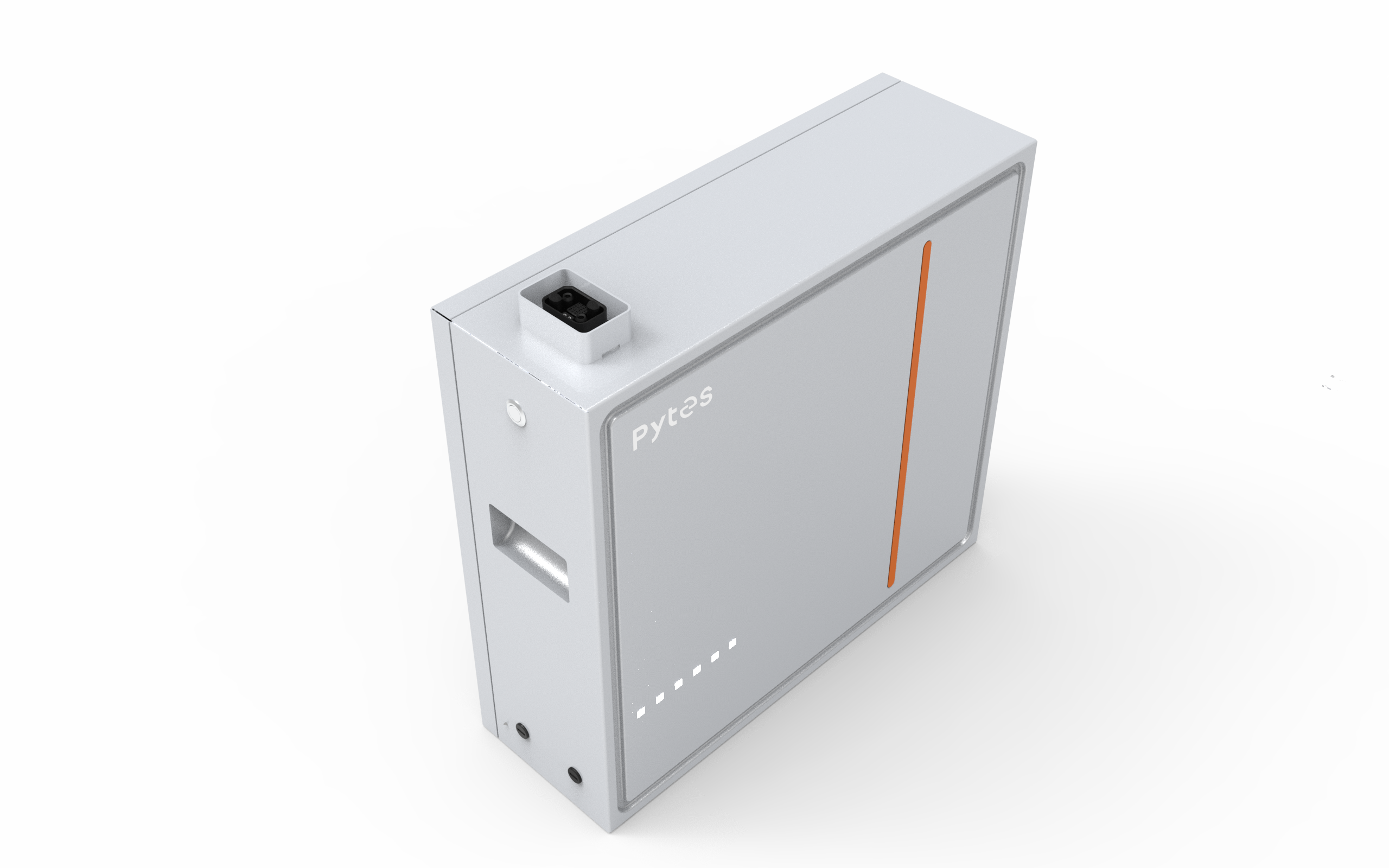

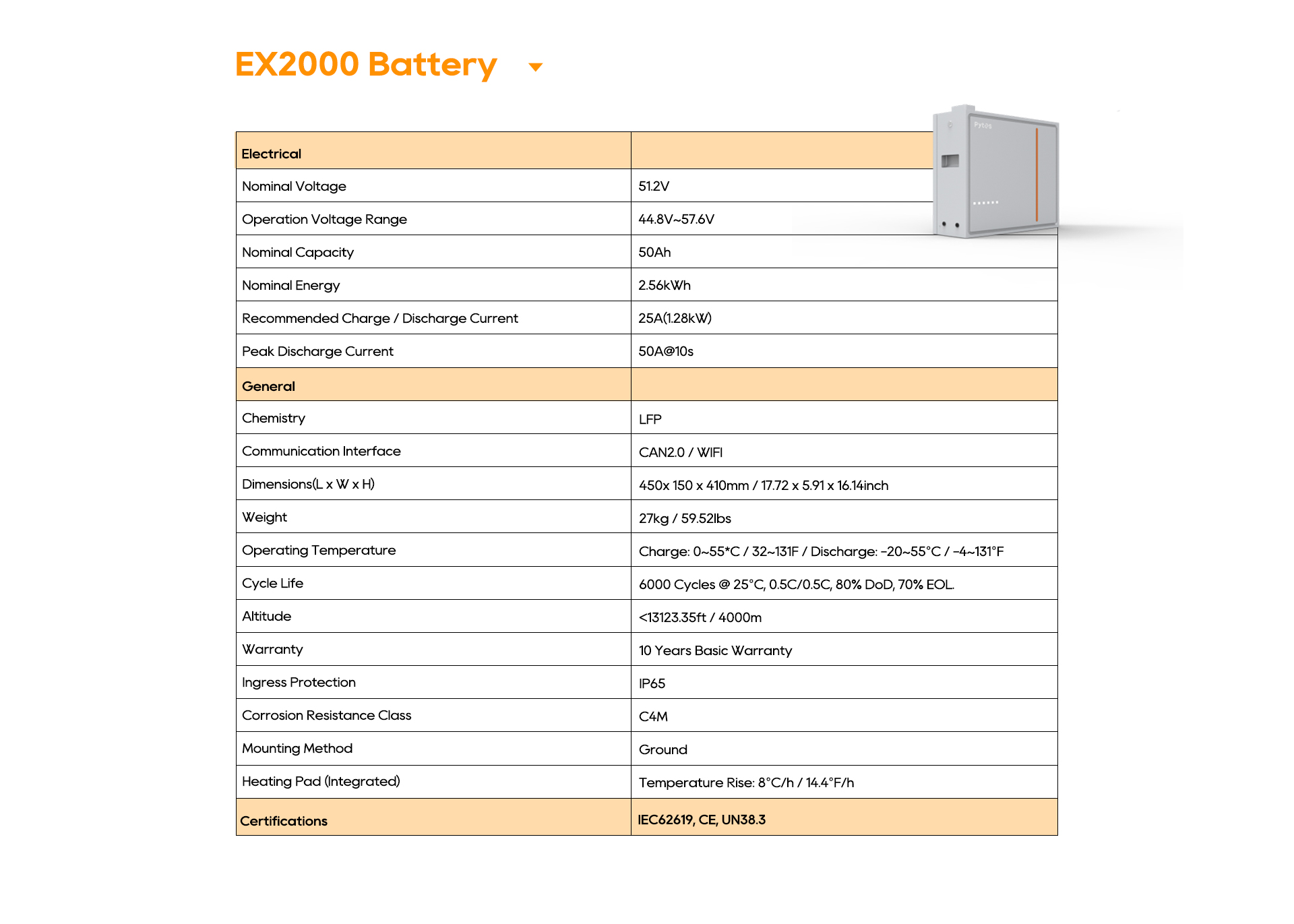

| Battery Model | EX2000 |
|---|---|
| Electrical | |
| Nominal Voltage | 51.2V |
| Operating Voltage Range | 44.8~57.6V |
| Nominal Capacity | 50Ah |
| Nominal Energy | 2.56kWh |
| Recommended Charge/Discharge Current | 25A(1.28kW) |
| Peak Discharge Current | 50A@10s |
| General | |
| Chemistry | LFP |
| Communication Interface | CAN2.0 / WIFI |
| Dimensions(L x W x H) |
450x 150 x 410mm / 17.72 x 5.91 x 16.14inch |
| Weight | 27kg / 59.52lbs |
| Operating Temperature | Charge: 0~55°C / 32~131°F / Discharge: -20~55°C / -4~131°F |
| Cycle Life* | 6000 Cycles@25°C, 0.5C/0.5C,80% DoD, 70% EOL |
| Altitude | <13123.35ft / 4000m |
| Warranty |
10 Years Basic Warranty |

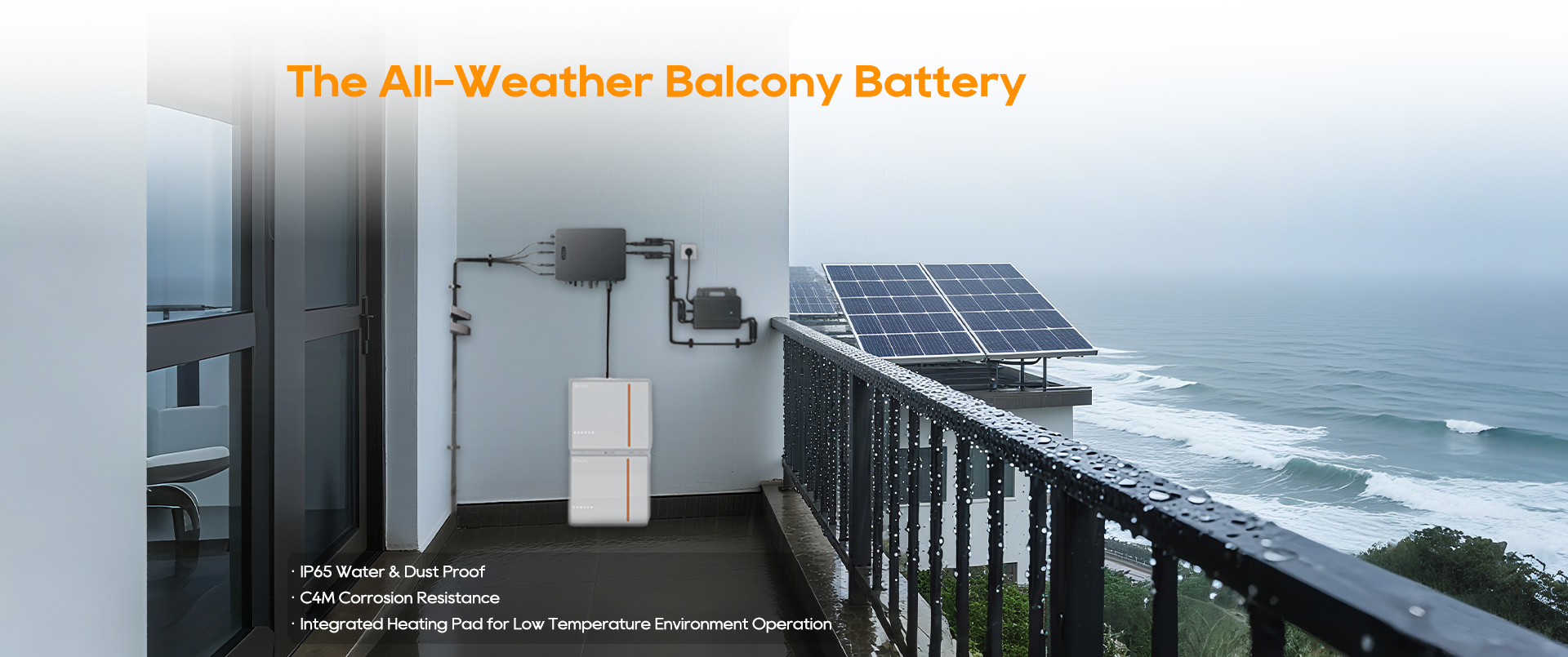

| Ingress Protection | lP65 |
| Corrosion Resistance Class | C4M |
| Mounting Method | Ground |
| Heating Pad (Integrated) | Temperature Rise: 8°C/h / 14.4°F/h |
| Certifications | |
| IEC62619, CE, UN38.3 | |
*Test Conditions: 25°C, 0.5C/0.5C, 90% DoD, 70% EOL.

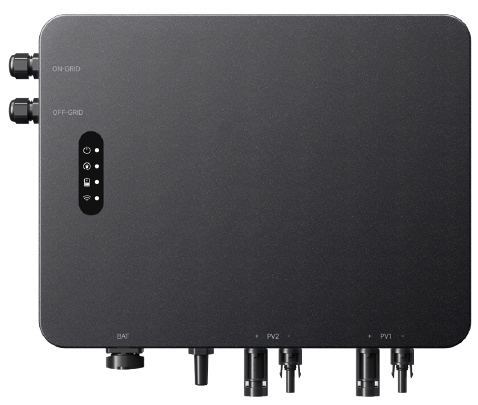

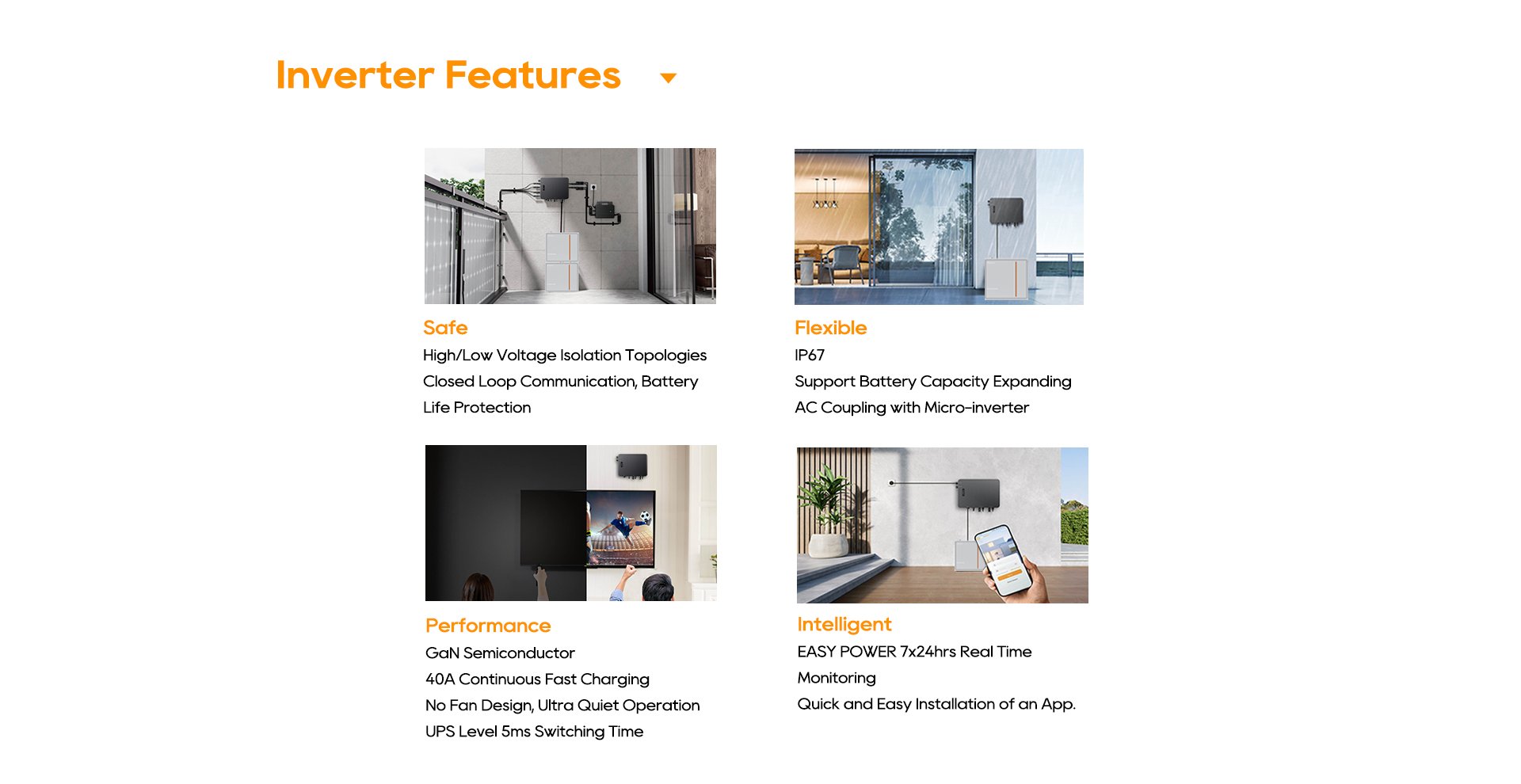

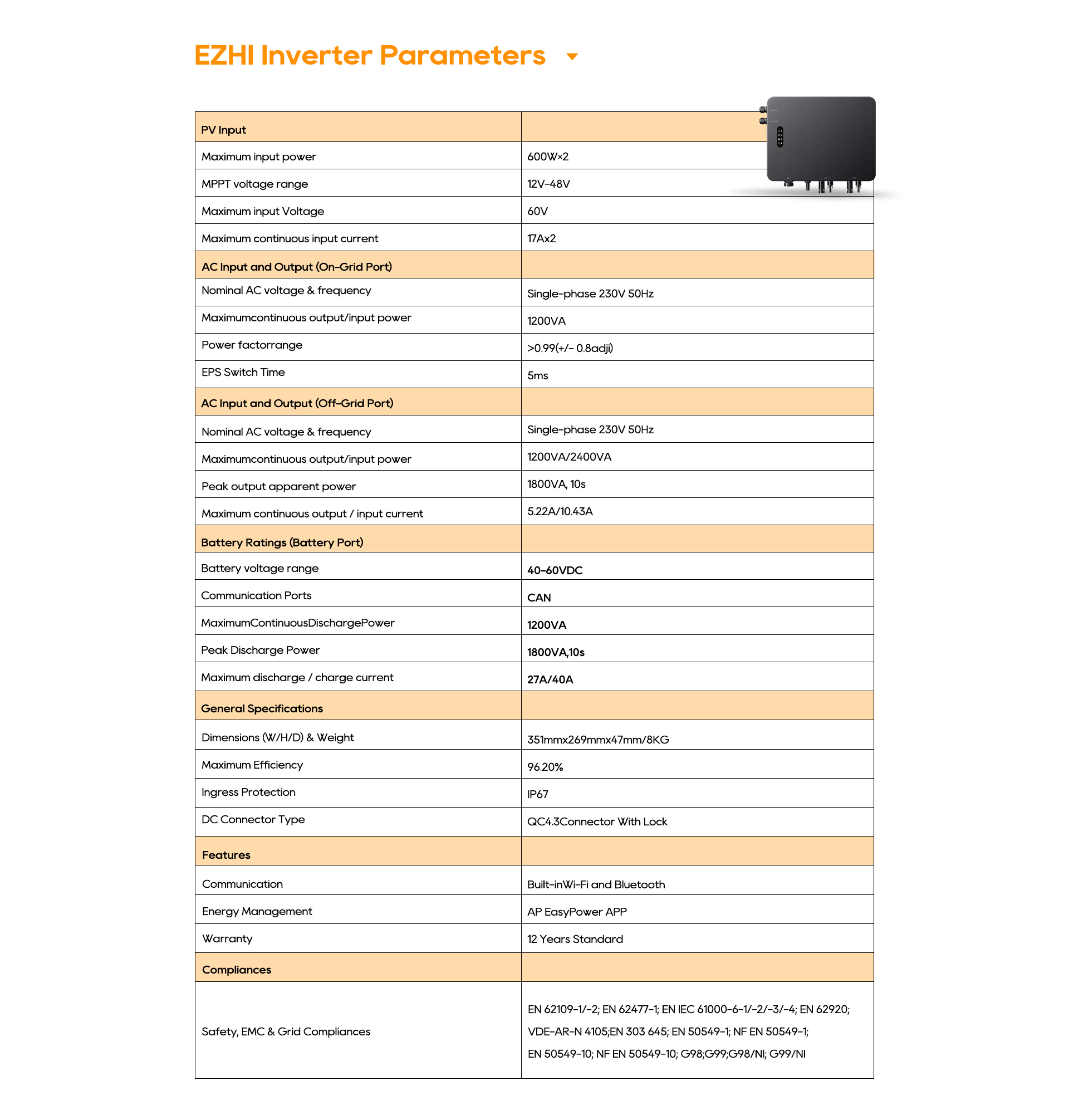

| EZHI Inverter Parameters | |
|---|---|
| PV Input | |
| Maximum input power | 600W×2 |
| MPPT voltage range | 12V~48V |
| Maximum input Voltage | 60V |
| Maximum continuous input current | 17A×2 |
| AC Input and Output (On-Grid Port) | |
| Nominal AC voltage & frequency | Single-phase 230V 50Hz |
| Maximum continuous output/input power | 1200VA |
| Power factor range |
0.99(+/- 0.8adj) |
| EPS Switch Time | Sms |
| AC Input and Output (Off-Grid Port) | |
| Nominal AC voltage & frequency | Single-phase 230V 50Hz |
| Maximum continuous output/input power | 1200VA / 2400VA |
| Peak output apparent power | 1800VA, 10s |
| Maximum continuous output / input current | 5.22A / 10.43A |
| Battery Rating (Battery Port) | |
| Battery voltage range | 40~60VDC |
| Communication Ports | CAN |
| Maximum Continuous Discharge Power | 1200VA |
| Peak Discharge Power | 1800VA,10s |
| Maximum discharge / charge current | 27A/40A |
| General Specifications | |
| Dimensions (W/H/D) & Weight | 351mm×269mm×47mm / 8KG |
| Maximum Efficiency | 96.20% |
| Ingress Protection | IP67 |
| DC Connector Type | QC4.3 Connector With Lock |
| Features | |
| Communication | Built-in Wi-Fi and Bluetooth |
| Energy Management | AP EasyPower APP |
| Warranty | 12 Years Standard |
| Compliance | |
| Safety, EMC & Grid Compliances | EN 62109-1/-2; EN 62477-1; EN IEC 61000-6-1/-2/-3/-4; EN 62920; VDE–AR-N 4105;EN 303 645; EN 50549-1; NF EN 50549-1; EN 50549-10; NF EN 50549-10; G98; G99; G98/NI; G99/NI |

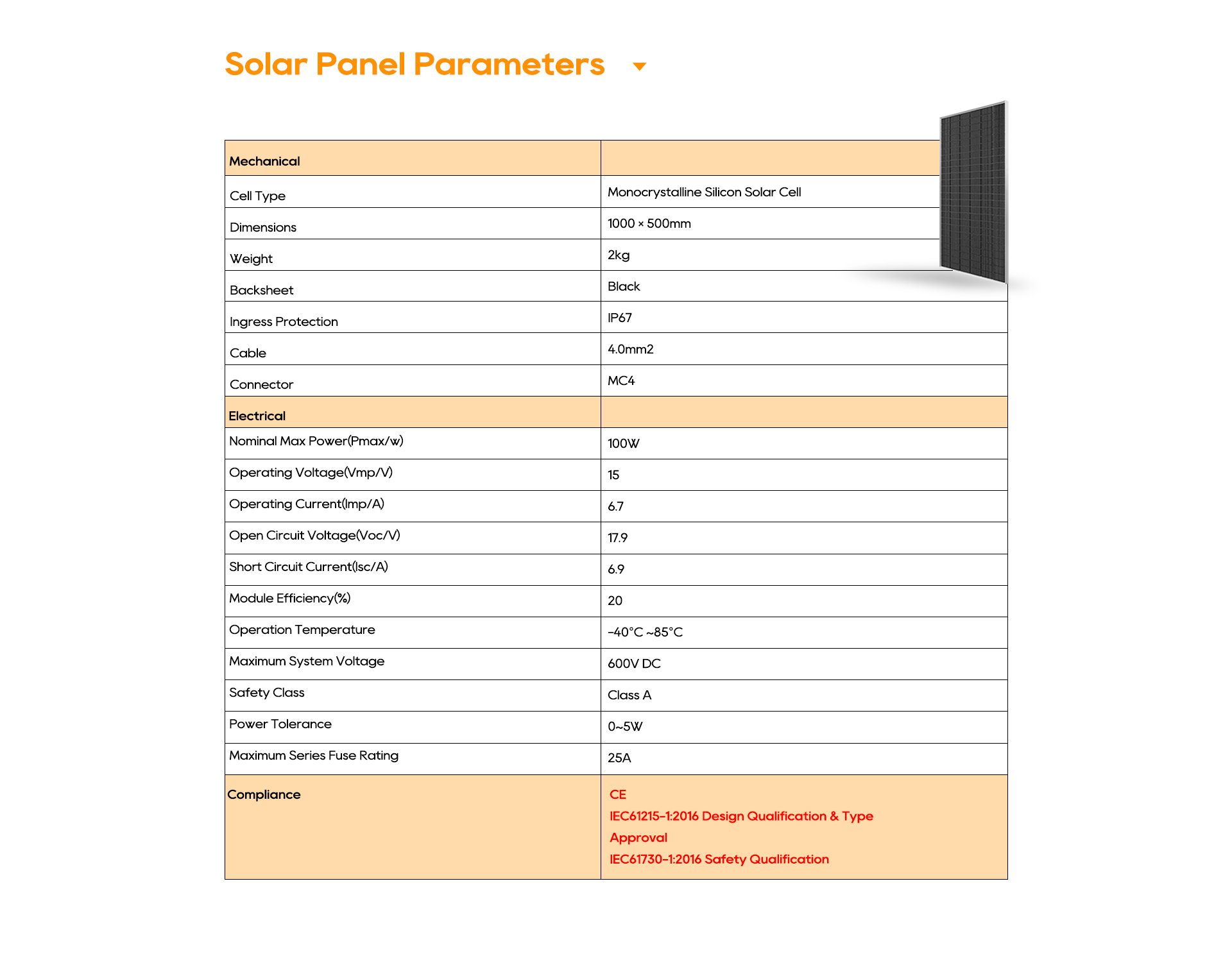

| Solar Panel Parameters | |
|---|---|
| Mechanical | |
| Cell Type | Monocrystalline Silicon Solar Cell |
| Dimensions | 1000 x 500mm |
| Weight | 2kg |
| Backsheet | Black |
| Ingress Protection | IP67 |
| Cable | 4.0mm² |
| Connector | MC4 |
| Electrical | |
| Nominal Max Power (Pmax/W) | 100W |
| Operating Voltage (Vmp/V) | 15 |
| Operating Current (Imp/A) |
6.7 |
| Open Circuit Voltage (Voc/V) | 17.9 |
| Short Circuit Current (Isc/A) | 6.9 |
| Module Efficiency (%) | 20 |
| Operation Temperature | -40°C ~ 85°C |
| Maximum System Voltage |
600V DC |
| Safety Class | Class A |
| Power Tolerance | 0 ~ 5W |
| Maximum Series Fuse Rating | 25A |
| Compliance |
CE IEC 61215-1:2016 (Design Qualification & Type Approval) IEC 61730-1:2016 (Safety Qualification) |
