An innovative battery solution, outperforming lead-acid batteries of the same capacity.
It's lightweight for easy portability and installation, boasts higher charge-discharge
efficiency and configures operation indicator, warning light and SOC indicator to ensure

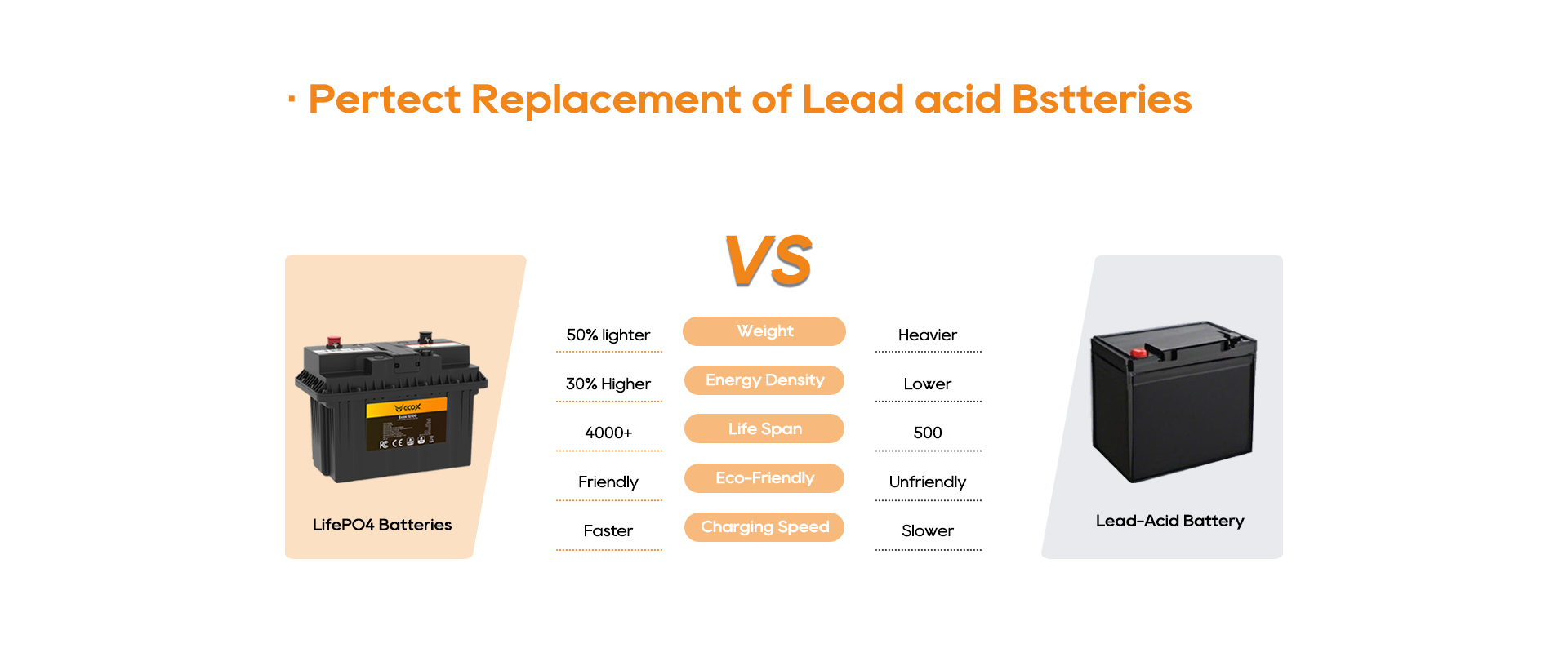

real-time monitoring. It has high cycle life, supports the parallel expansion of 8 batteries, and is equipped with a heating function for low-temperature operation.This battery is ideal for deep-cycle off-grid use in RVs, boats, trucks, and cabins and can replace deep-cycle lead-acid batteries.

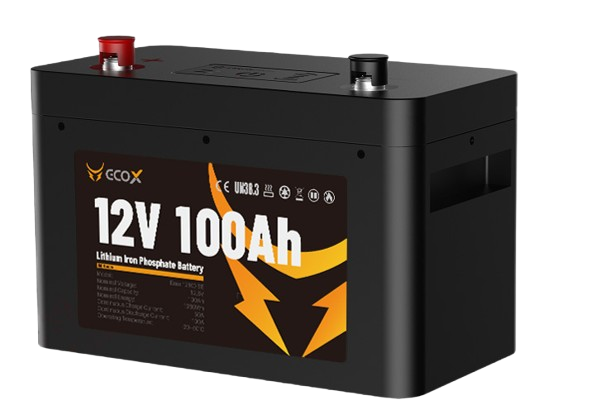

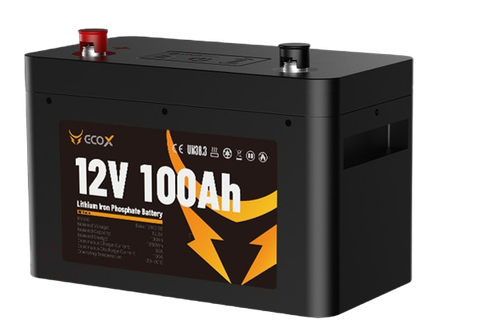

| Battery Model | Ecox 12100 SE |
|---|---|
| Electrical | |
| Nominal Voltage | 12.8VDC |
| Nominal Capacity | 100Ah |
| Internal Resistance | <10mΩ |
| Round-Trip Efficiency | 99% |
|
Self-discharge Rate |
≤3% per month |
| Scalability | 8P |

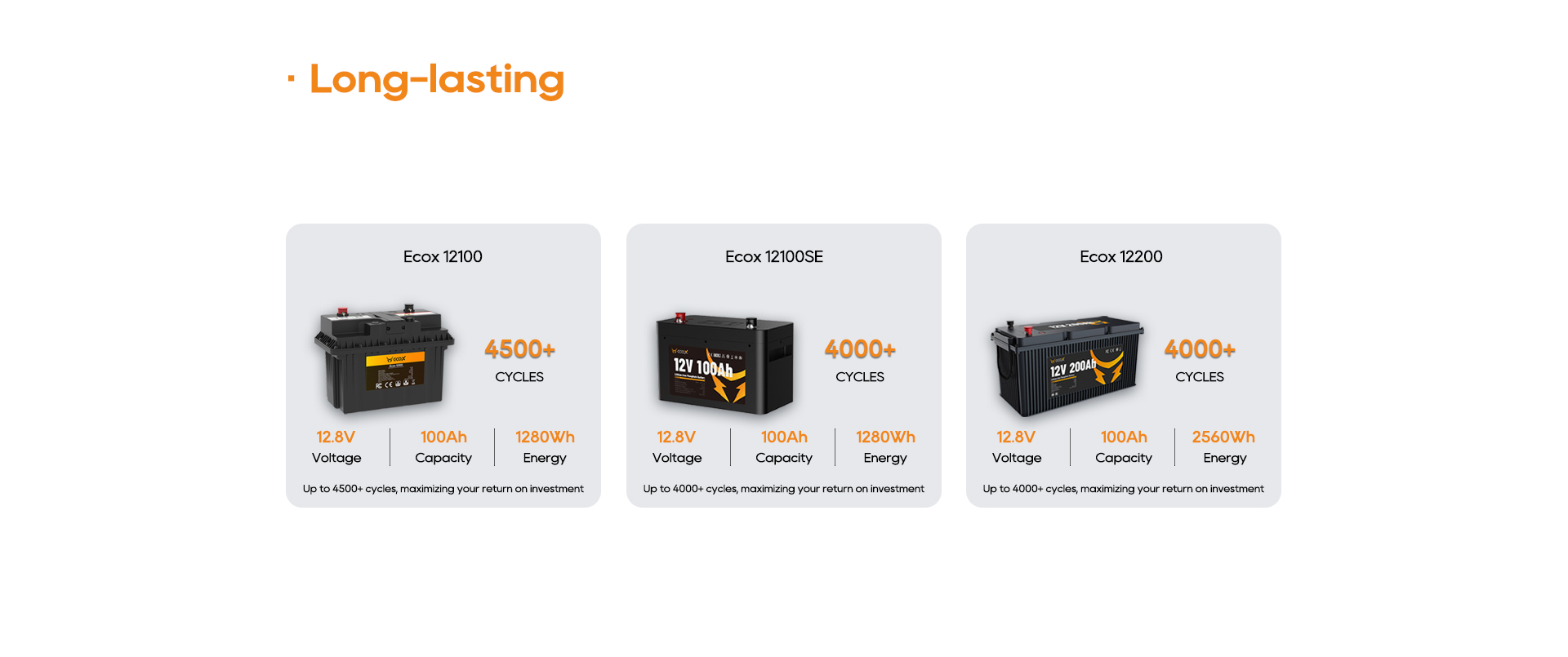

| Cycle Life | >4000 |
| Peak Discharge Current | 200A@10s |
| Maximum Continuous charge Current | 100A |
| Maximum Continuous Discharge Current | 100A |
| Recommended Continuous Charge Current | ≤50A |
| Recommended Charge Voltage | 14V~14.4V |
| Environmental | |
| Recommend Storage Temperature | 5010°C~40°C |
| Storage Temperature | -20°C~60°C |
| Autitude | <4000m |
| Relative Humidity | 5%~95%(no condensation) |
| Mechanical | |
| Dimensions | 300×160×210mm |
| Weight |
approx 12kg |
| Terminal Type | M8×1.25×14mm |
| Terminal Torque | 8±1Nm |
| Housing Material | Metal |
| Ingress Protection | IP20 |
| Battery Type | LFP |
| Cooling | Nature Cooling |
| Certifications | |
| IEC62619,UN38.3,MSDS,CE | |
