Stable detection for any application

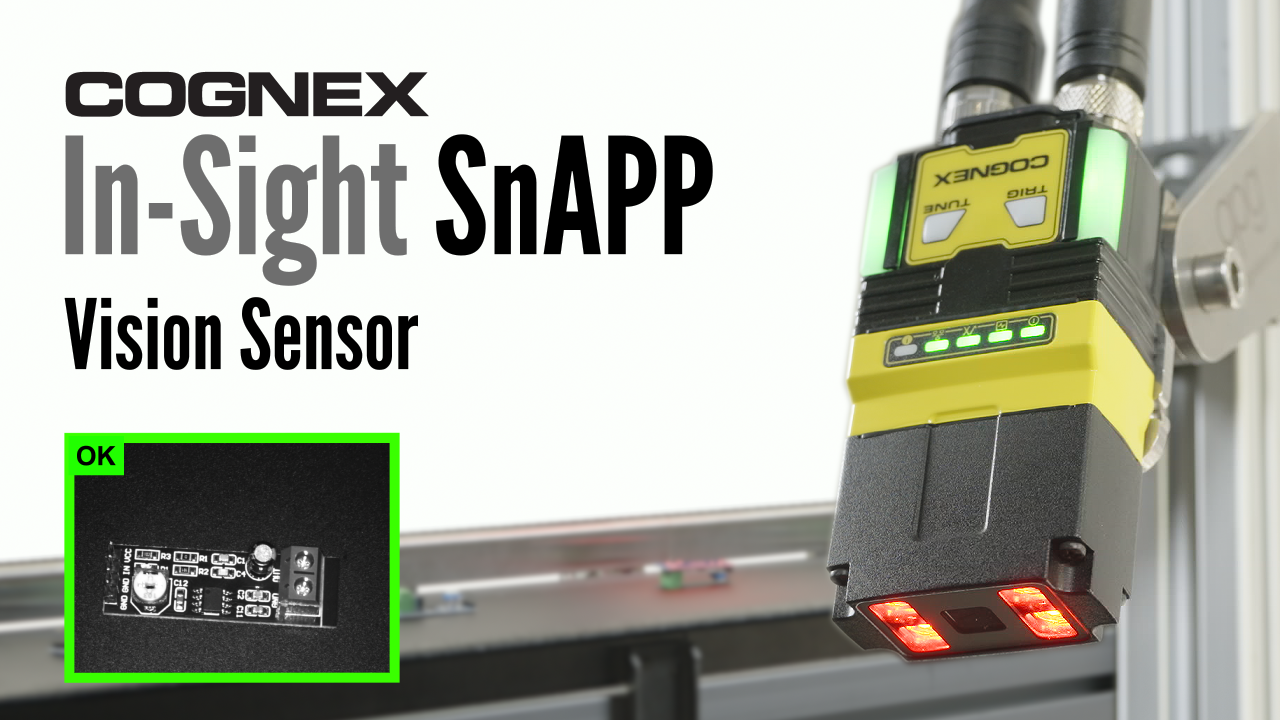

The In-Sight SnAPP vision sensor allows manufacturers to quickly automate processes and quality control tasks, with no experience needed. Using pre-trained AI, these easy-to-use sensors solve a range of error-proofing applications to ensure peak machine performance, support predictive maintenance, and enable continuous improvement.

  • Accurate detection optimizes application performance
  • High ease of use simplifies installation and offers fast deployment
  • Flexible capability solves a range of inspection tasks

Laser-based sensor projecting laser on parts coming down production line and display panel showing linear inspection results

Overcome the limitations of conventional sensors with vision-based technology

Powered by AI and image-based analysis, In-Sight SnAPP vision sensors exceed the capabilities of conventional sensors, like photoelectric (photo eyes), proximity, and optical sensors, to offer higher accuracy and higher performance for any detection task. In-Sight SnAPP allows you to do more than ever before with a sensor:

  • Find subtle anomalies
  • Eliminate false positives/negatives
  • Handle variation
  • Locate features and parts in any position

All of this helps you to achieve more consistent product quality, optimize machine performance, and ensure automated processes are working properly.

Solve applications with ease

In-Sight SnAPP allows anyone to automate quality control tasks. Leveraging pre-trained AI, applications can be built, quickly and easily, with no experience needed.

  • Guided setup – Reduce downtime with fast, intuitive setup
  • Browser-based UI – Plug in and run In-Sight SnAPP from anywhere
  • No code training – Train jobs using a few sample images
  • Simplified installation and retrofits – Easily modify applications or build new ones within the UI, no hardware exchange needed
  • Streamlined integration – Replace multiple laser-based sensors with one vision sensor

Laptop screen displaying SnAPP training interface

Vision sensor inspecting EV battery pouches for dents, scratches and tears. Vision sensor performing quality control checks on bottles of lotion

Automate activities across your facilities

In-Sight SnAPP addresses a range of error-proofing tasks, from simple presence/absence detection to quality inspections. These sensors perform one job at a time but can solve a variety of different applications. Within the intuitive user interface, you can create new jobs to automate more steps in your production process. This keeps your business agile, while reducing costs, increasing efficiency, and eliminating manual errors.

Quickly make changes, even after installation

Conventional sensors, such as photo eyes and proximity sensors, often impose physical constraints, making it difficult to adjust the device once it is deployed on the line or built into a machine or fixture. With In-Sight SnAPP, users can easily make modifications through the web-based UI or VisionView display panel. This offline accessibility simplifies device management and enables real-time process improvements for optimized performance.

View the In-Sight SnAPP in 360 degrees

Get a closer look at the features of In-Sight SnAPP in an interactive 3D tour.

3D rotation animation of the In-Sight SnAPP

Finger pointing at touchscreen panel used for training machine vision applications

Key Features

Embedded AI

Brain icon inside gear

Simplify setup and find subtle, variable anomalies.

Example-based training

Inspection results showing connector insertion check

Train jobs using just a few sample images.

Web-based user interface

In-Sight SnAPP vision sensor training interface

Plug in and run In-Sight SnAPP from anywhere, no software needed.

Real-time training feedback

Mock inspection results showing  OK/green boxes and NG/red boxes

View results in real-time to verify performance and identify potential issues early.

1-click image optimization

Comparison of out of focus and in-focus photos of a printed circuit board

Capture high-resolution images, in a single click.

Web HMI compatibility

Hand pointing at display label showing real-time inspection results for wiring harness

Train and monitor applications directly on the factory floor, without a PC.

Compact size

Hand holding vision sensor in a straight configuration with lights turned on

Easily add automation anywhere in your facility.

Fixturing capabilities

Images showing how fixturing tool works in inspection of wiring harnesses.

Fixture your region of interest to locate parts and features in any position.

IP67 rated

Factory floor showing metal being cut and sparks flying across the work area

Operate in challenging manufacturing environments.

Download Datasheet


Weight 6.2 mm: 141 g
16 mm: 169 g
Right angle configuration adds 50 g
Power 24 V DC +/- 10% and Power over Ethernet (PoE)
Power Consumption ≤7.5W
Operating Temperature 0–40 °C (32–104 °F)
Storage Temperature -10–60 °C (14–140 °F)
Humidity <95% non-condensing
Environmental IP67
Shock (Shipping and Storage) IEC 60068-2-27: 1000 shocks, semi- sinusoidal, 11 g, 10 ms
ISTA-1A standardized testing - packaged products 150 lb or less
Vibration (Shipping and Storage) IEC 60068-2-6: vibration test in each of the three main axis for 2 hours
@ 10 Gs (10 to 500 Hz at 100m/s2 / 15 mm)
FedEx vibration testing for packaged products 150 lbs or less
High-Speed Outputs 0, 1, 2, 3 IMAX: 50 mA
VOL: ≤ ± 3 V @ 50 mA
Inputs 0 (Trigger), 1, 2, 3 VIL: ≤ ± 6 V
VIH: ≥ ± 12 V
ITYP: 4.2 mA @ 24 V
Ethernet 10/100/1000. Full duplex or half duplex.
Program Storage 20 for each application
Image Sensor 1/2.8-inch CMOS monochrome and color
Image Sensor Properties Pixel size: 2.8 μm (H) x 2.8 μm (V)
Pixels 1440 x 1080 (1.6 MP)
Lens Type Autofocus: 6.2 mm, 16 mm (high speed liquid lens)

Array of FOV diagrams for In-Sight SnAPP

Access user training materials

Learn about your In-Sight SnAPP with how-to videos on installing your device, setting up an application, updating firmware, connecting to a PLC, and more.

In-Sight SnAPP on table with computer

Take the complexity out of training

In-Sight SnAPP vision sensors are trained through a web-based user interface (UI), which eliminates the need to download and install software. Using the browser of your choice, you can access the training UI from anywhere and immediately begin building your application.

The user-friendly interface guides you step-by-step through setup, from image capture to final result. Jobs can be trained using just a few sample images and embedded AI takes care of the rest, learning to recognize anomalies and correctly predict the output.

 Download the Cognex Device Discovery Utility


Access user training materials

Learn about your In-Sight SnAPP with how-to videos on installing your device, setting up an application, updating firmware, connecting to a PLC, and more.

Setting up your In-Sight SnAPP Sensor

Pre-setup: Find the device

Locate your device using the Cognex Device Discovery Utility.

Step 1: Open device and access the home screen

Manage settings and switch between available applications.

Step 2: Adjust image

Define the acquisition area.

Step 3: Set the region of interest

Move and size the bounding box to the area within the image you would like to inspect.*

Step 4: Train

Label images as OK or NG (approximately 3-5 for each class). Add new, unlabeled images and verify results based on the confidence indicator.

Step 5: Finalize

Select trigger mode settings. Choose from either self (sensor triggers itself based on the acquisition rate) or single (sensor is triggered externally).

Post-setup: Enter monitoring view

Switch to the monitoring screen and view the results live.

*Note: If your part location is not stable, you may enable fixturing. Fixturing is a method that follows a part in the field of view and moves the vision tools to the correct location to perform the inspection.

Expand your automation possibilities

In-Sight SnAPP automates a wide range of quality control tasks, so you can do more than ever before with a sensor. View the examples below to see how you can use this powerful yet easy-to-use solution to solve problems across your production facilities.

Anomaly Detection

Verify proper assembly


Inspect packaged items for debris


Binary Classification

Confirm presence/absence of parts

Automate process control

Multi-Class Classification

Verify product completeness

Inspect labels on final packaging
