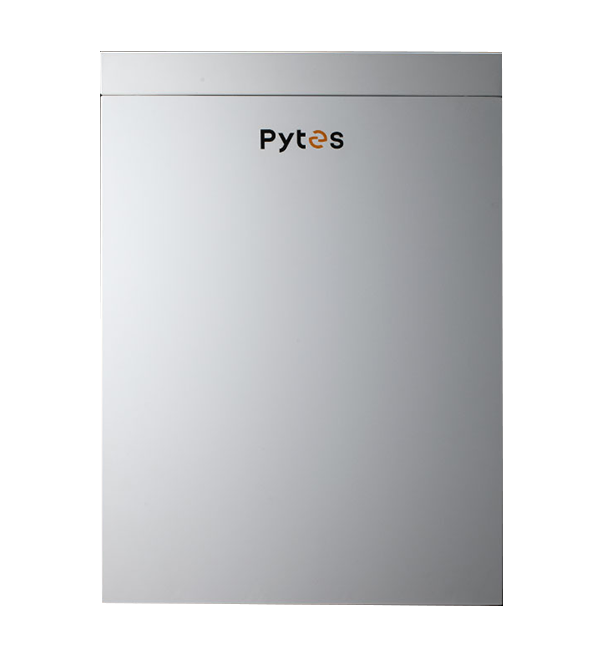

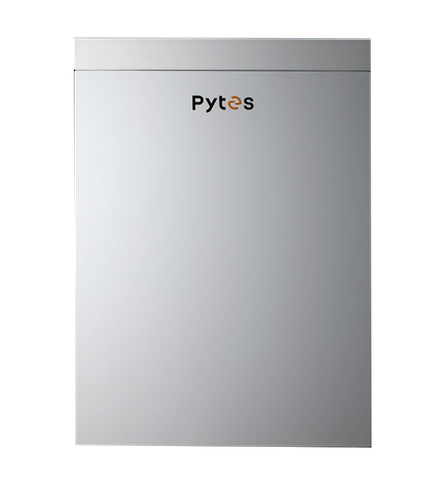

A state-of-the-art home energy storage system solution with a total capacity up to 10kWh.
Quick and easy installation, a compact and elegant home style design and great extensibility.
R-BOX provides smart configurable backup power during outage and power smart homes with solar energy, day and night.
| Model | R-Box |
|---|---|
| Total capacity | 10.24kWh |
| Usable capacity | 9.22kWh |
| Chemistry | Lithium iron phosphate (LFP) |
| Nominal voltage | 51.2V |
| Max. charge/discharge current | 100A |
| Communication | CAN, RS485 |
| Certificate | UL1973, CE, UN38.3 |
| Operating Temperature | Charge: 32~113°F Discharge: 14~122°F |
| Altitude | ＜6562ft (2000m) |
| Mechanical Design | Parameter |
|---|---|
| Dimensions (LxWxH) | 11.0" x 20.1" x 27.5" (30.8" H w/ holder) |
| Weight | 264 lbs |
| Mount | Wall / Floor mount |
| Enclosure rating | IP20 |
| Enclosure material | Cool-rolled steel |
| Cooling | Natural convection |
| Warranty | 6000 cycles or 10 years |
E-Box-48100R Installation Guide
