JS Series Hybrid Inverters

Thương hiệu: Pytes
Tình trạng: Còn hàng
Liên hệ

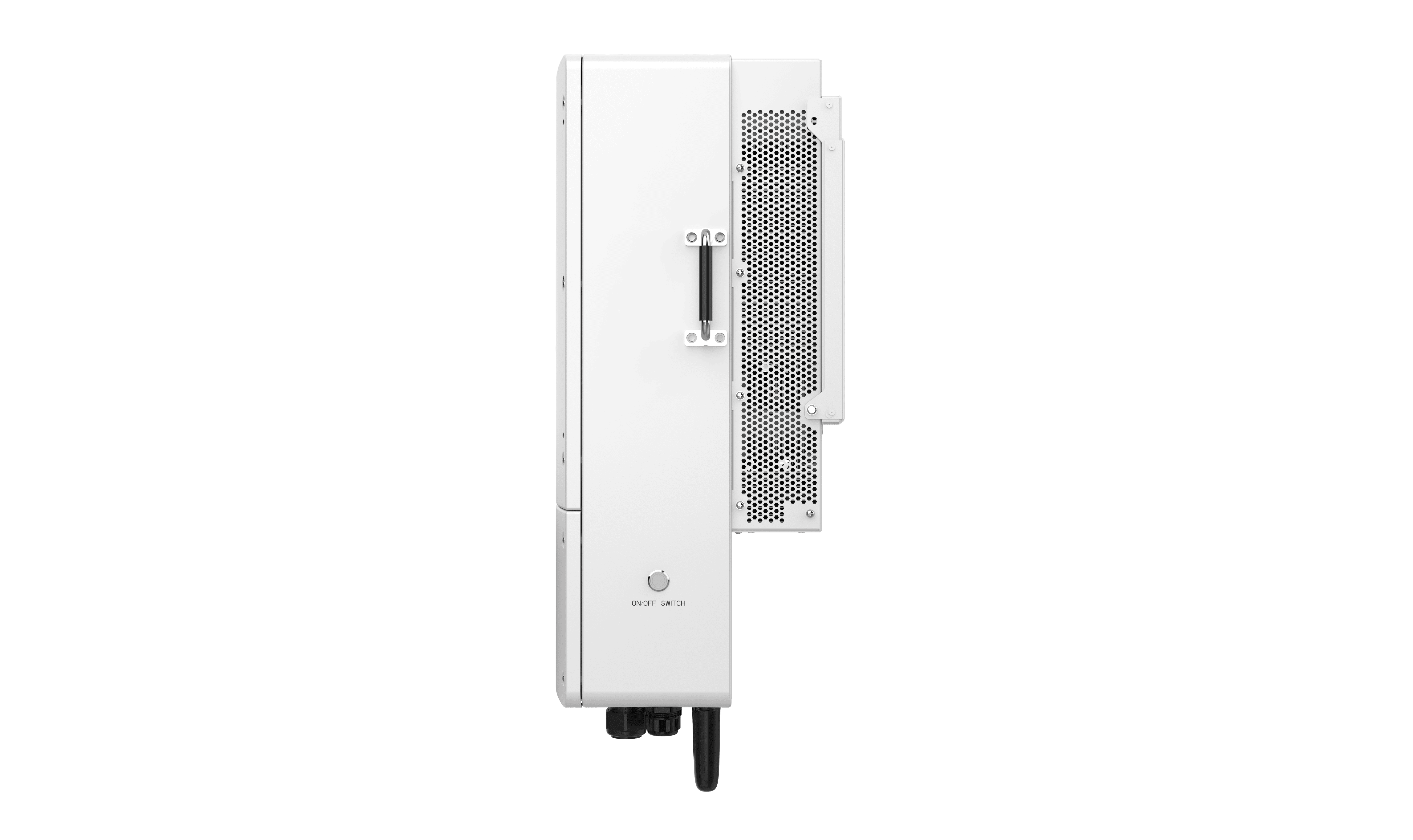

JS Series Hybrid Inverters

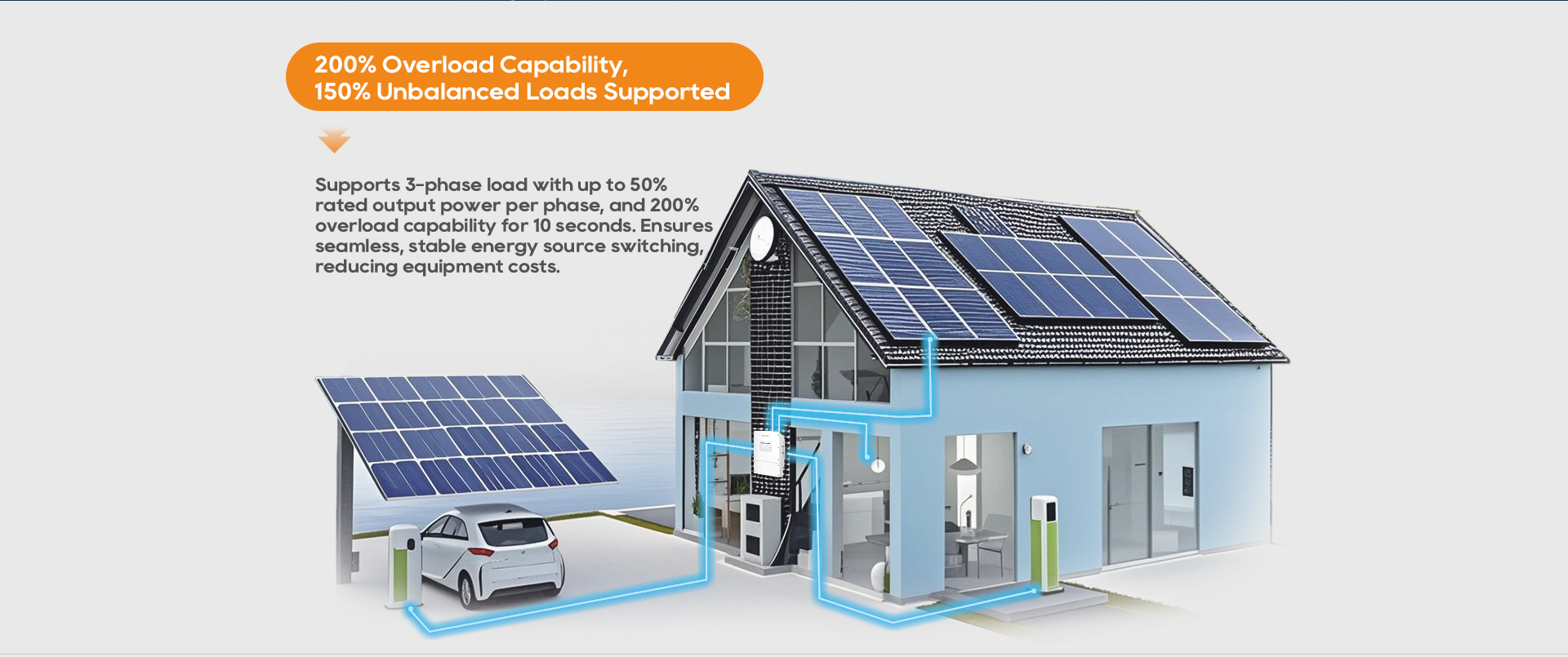

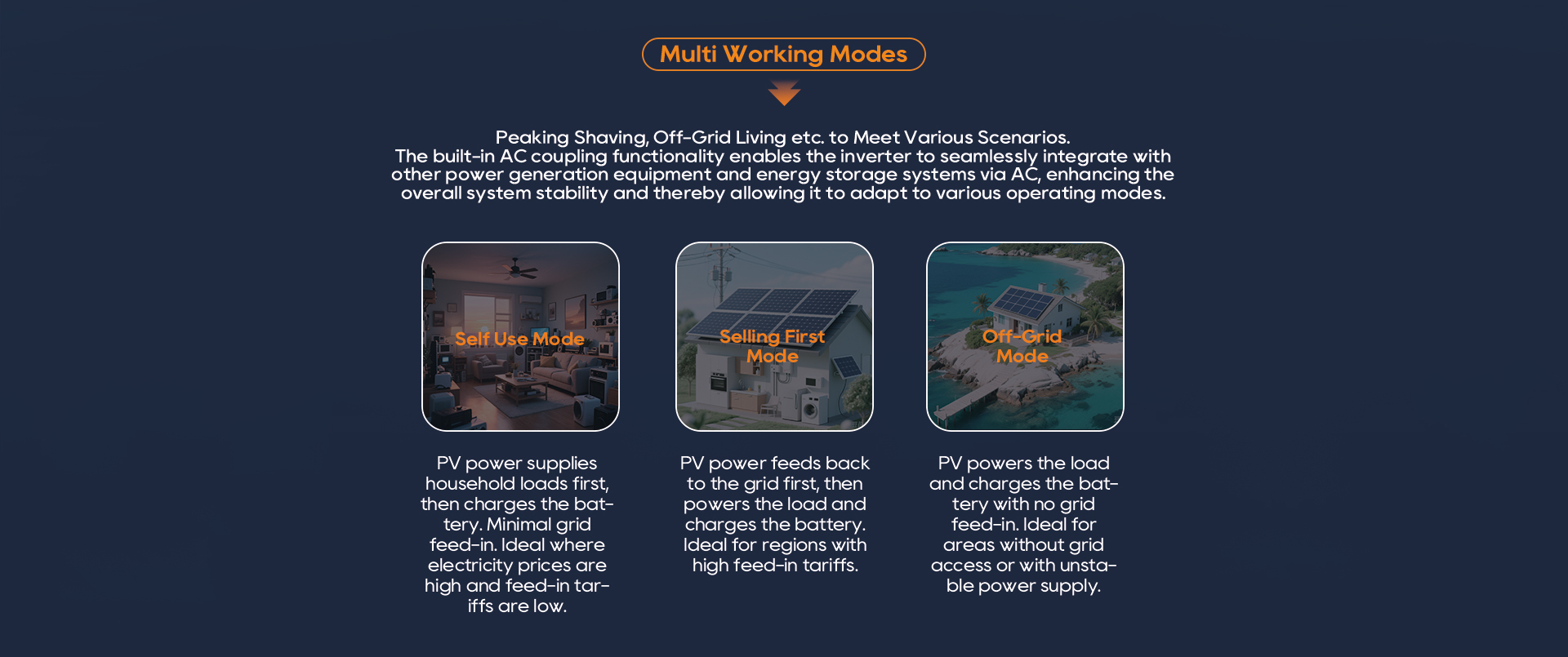

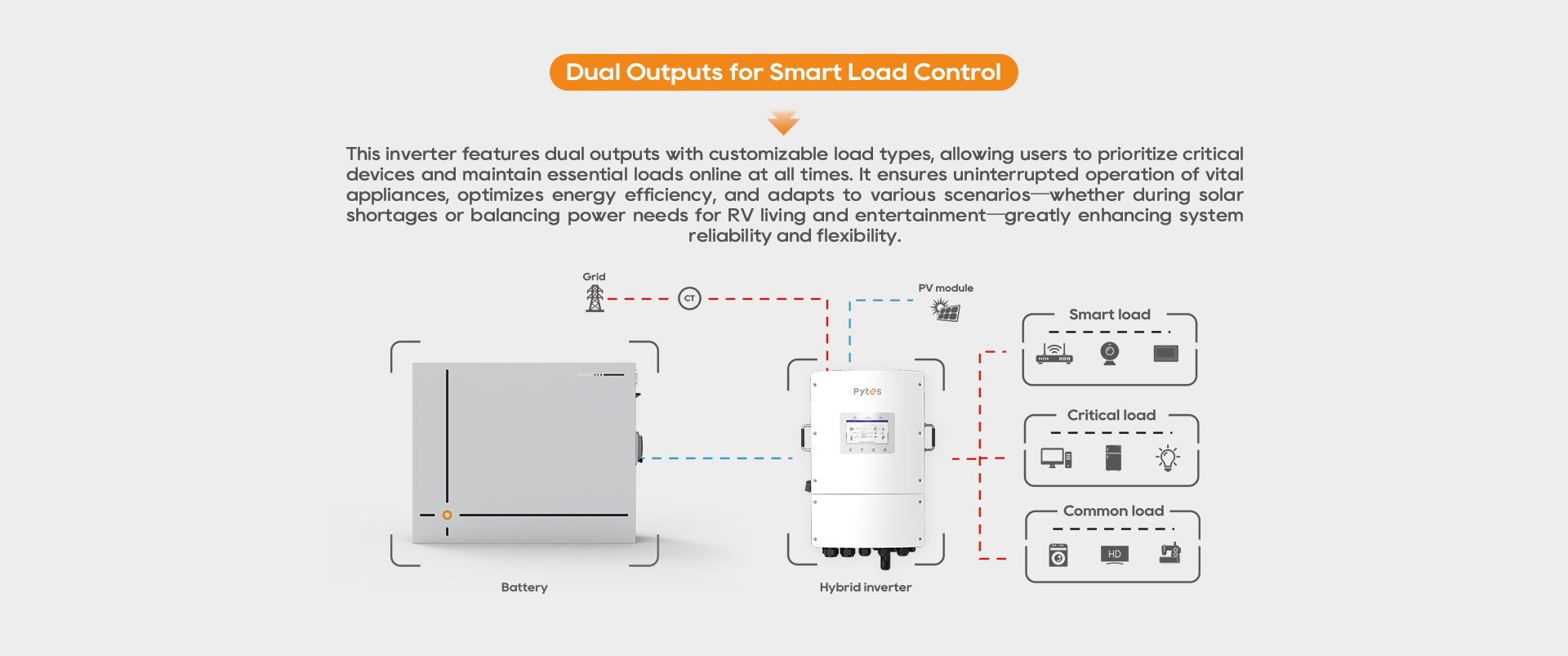

Pytes JS Series Hybrid Inverter is a powerful 3-phase solar inverter designed for flexible and resilient energy storage systems.Available in 10kW, 12kW, and 15kW models, it supports both on-grid and off-grid operations with seamless backup switching in under 10ms. Featuring up to 200% overload capacity and smart load management, it’s ideal for households, small businesses, or microgrids.

  • Specifications
Models                   JS3PL10K                   JS3PL12K                   JS3PL15K
Input DC (PV side)
Max. usable PV input power                 16 kW                 19.2 kW                 24 kW
Max. input voltage                 1000 V
Rated voltage                 550 V
Start-up voltage                 160 V
MPPT voltage range                 200 - 850 V
Max. input current                 20A / 40A                 40A / 40A
Max. short circuit current                 30A / 50A                 50A / 50A
MPPT number / Max. input strings number                 2 / 3                 2 / 4
Battery
Battery type                 Li-ion / Lead-acid
Battery voltage range                 40 - 60 V
Max. charge / discharge current                 220A                 250A                 290A
Communication                 CAN / RS485
Output AC (Grid side)
Rated output power                 10 kW                 12 kW                 15 kW
Max. apparent output power                 10 kVA                 12 kVA                 15 kVA
Operation phase                 3/N/PE
Rated grid voltage                 380 V / 400 V
Rated grid frequency                 50 Hz / 60 Hz
Rated grid output current                 15.2A / 14.4A                 18.2A / 17.3A                 22.8A / 21.7A
Max. output current                 15.2A / 14.4A                 18.2A / 17.3A                 22.8A / 21.7A
Power factor                 > 0.99 (0.8 leading - 0.8 lagging)
THDi < 3%
Input AC (Grid side)
Input voltage range                 323 - 460 V
Max. input current                 22.8A / 21.7A                 27.3A / 26.0A                 34.2A / 32.5A
Frequency range                 45 - 55 Hz / 55 - 65 Hz
Input Generator
Max. input power                 10 kW                 12 kW                 15 kW
Max. input current                 15.2A                 18.2A                 22.8A
Rated input voltage                 3/N/PE, 380 V / 400 V
Rated input frequency                 50 Hz / 60 Hz
Output AC (Back-up)
Rated output power                 10 kW                 12 kW                 15 kW
Max. apparent output power                 2 times of rated power, 10s
Back-up switch time < 10 ms
Rated output voltage                 3/N/PE, 380 V / 400 V
Rated frequency                 50 Hz / 60 Hz
Rated output current                 15.2 A / 14.4 A                 18.2 A / 17.3 A                 22.8 A / 21.7 A
Max. continuous output current                 15.2 A                 18.2 A                 22.8 A
Max. continuous AC passthrough current                 50 A
THDv (@linear load) < 3%
Efficiency
Max. efficiency                 97.60%
EU efficiency                 97.00%
Protection                 Anti-islanding , Output over current, Short circuit, DC reverse-polarity, Surge
General Data
Dimensions (W × H × D)                 430 × 660 × 305 mm
Weight                 42 kg
Topology                 Non-isolated
Operating ambient temperature                 -40 ~ +60°C
Ingress protection                 IP66
Noise emission (typical) < 65 dB(A)

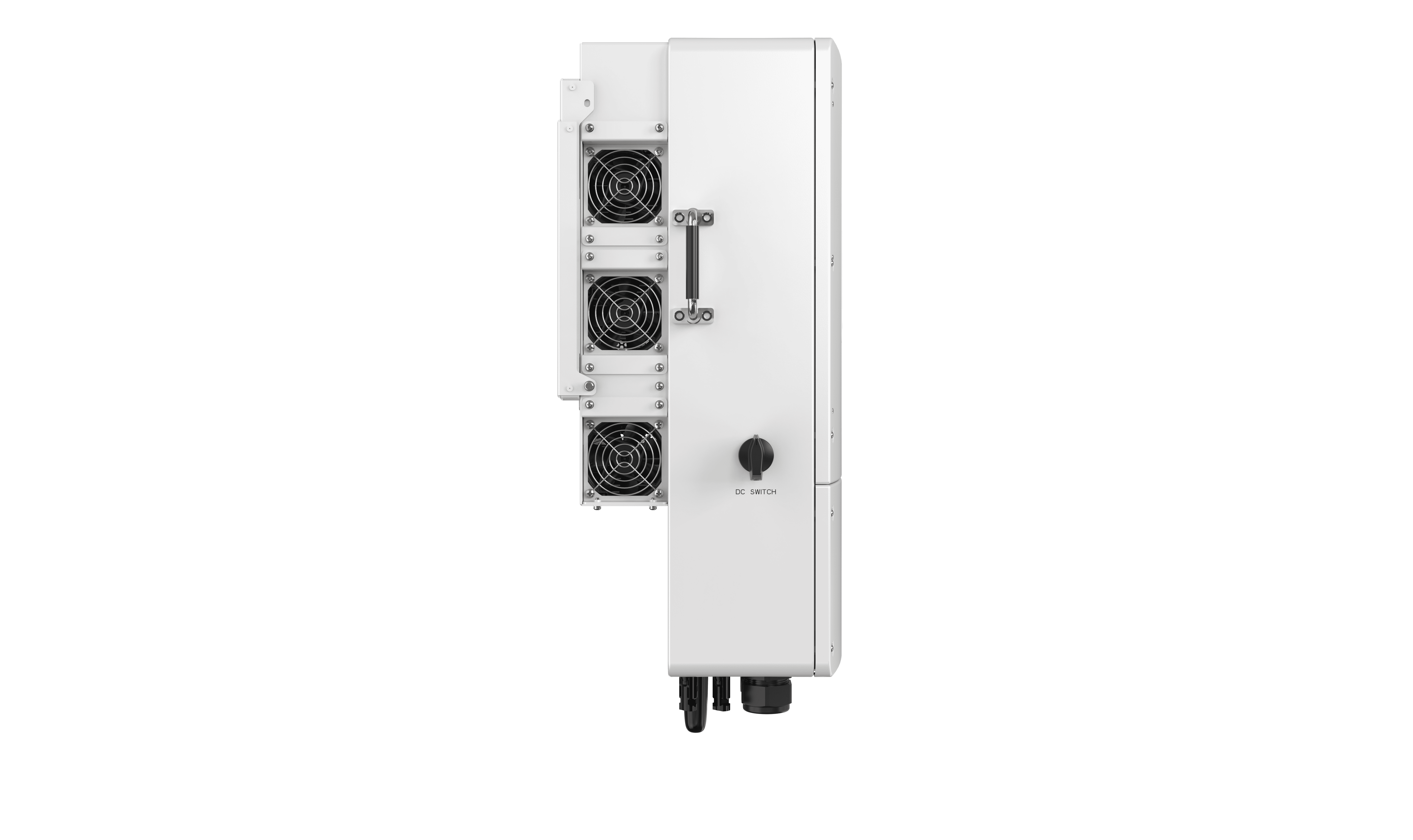

Cooling concept                 Intelligent fan-cooling
Max. operation altitude                 4000 m

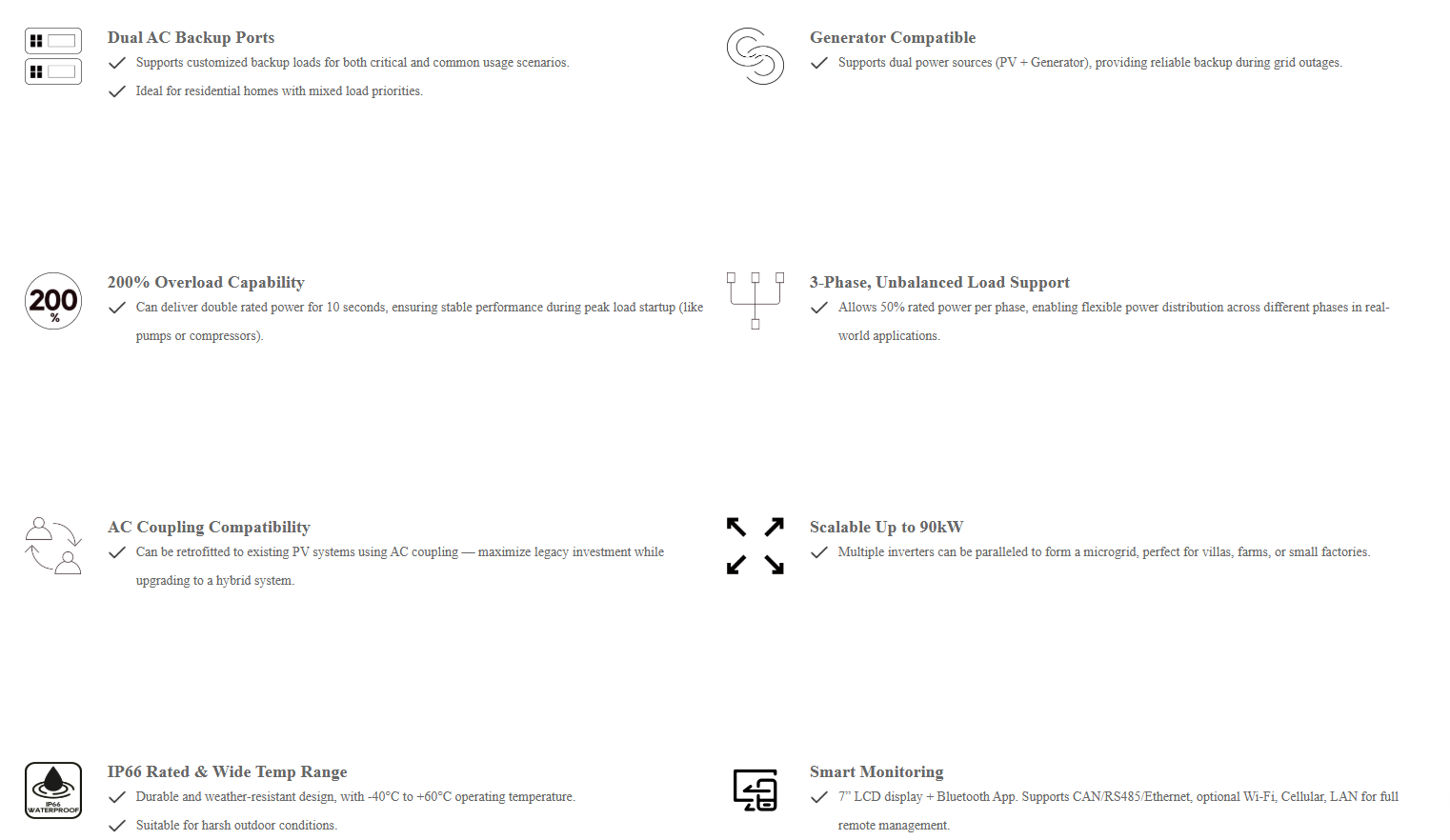

Features

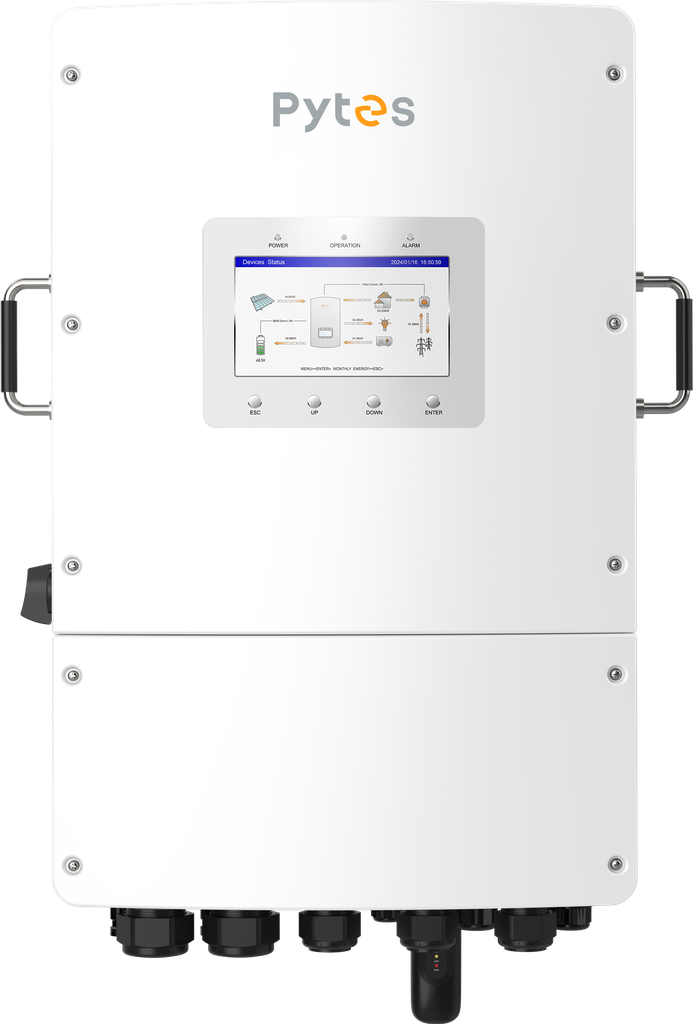

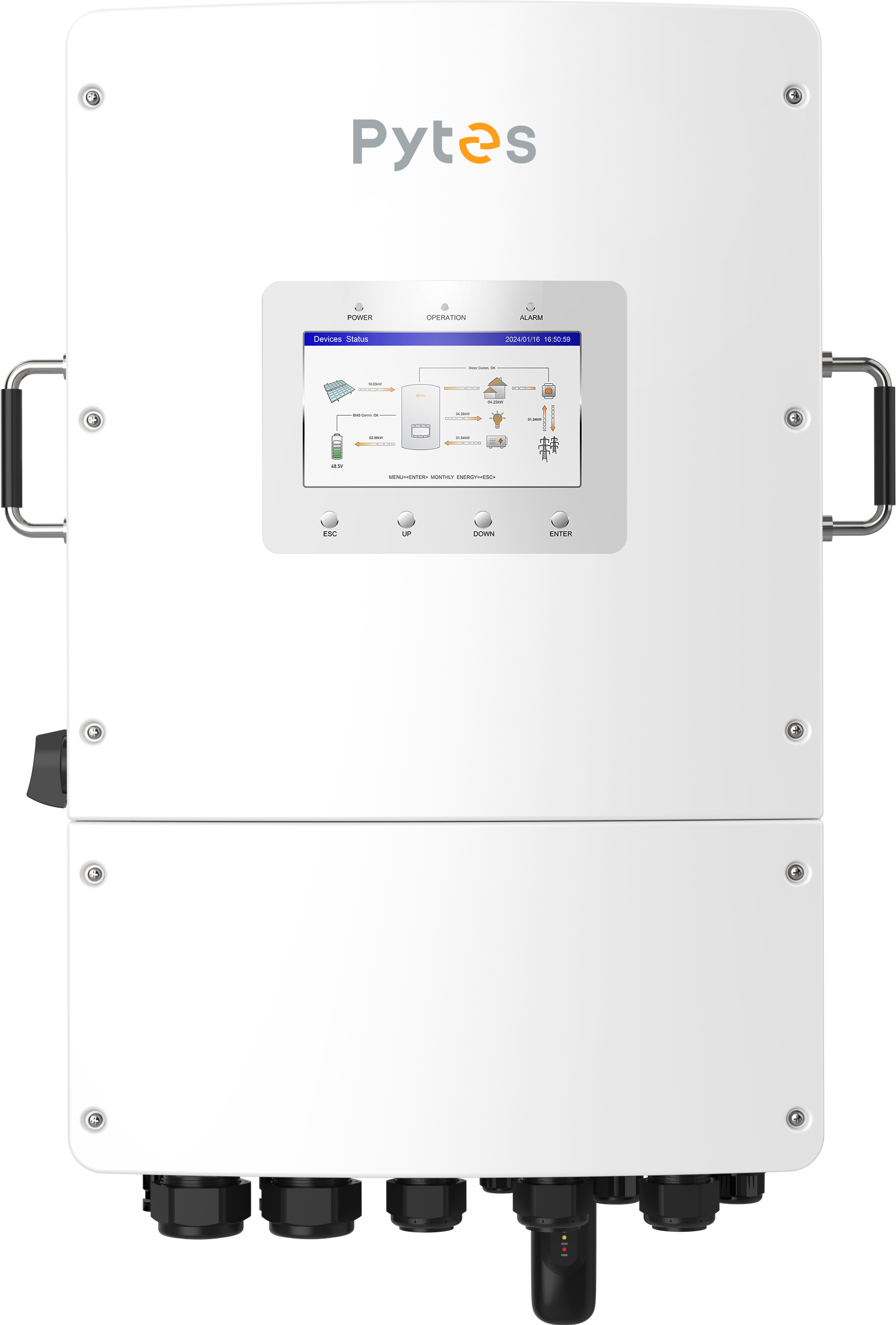

Display                 7.0" LCD display & Bluetooth + APP
Communication                 CAN, RS485, Ethernet, Optional: Wi-Fi, Cellular, LAN
  • Documentation

JS Series Inverters Datasheet V250106

PYTES JS Series LV Hybrid (8-15)K User Manual V1.1 EN 20250415
