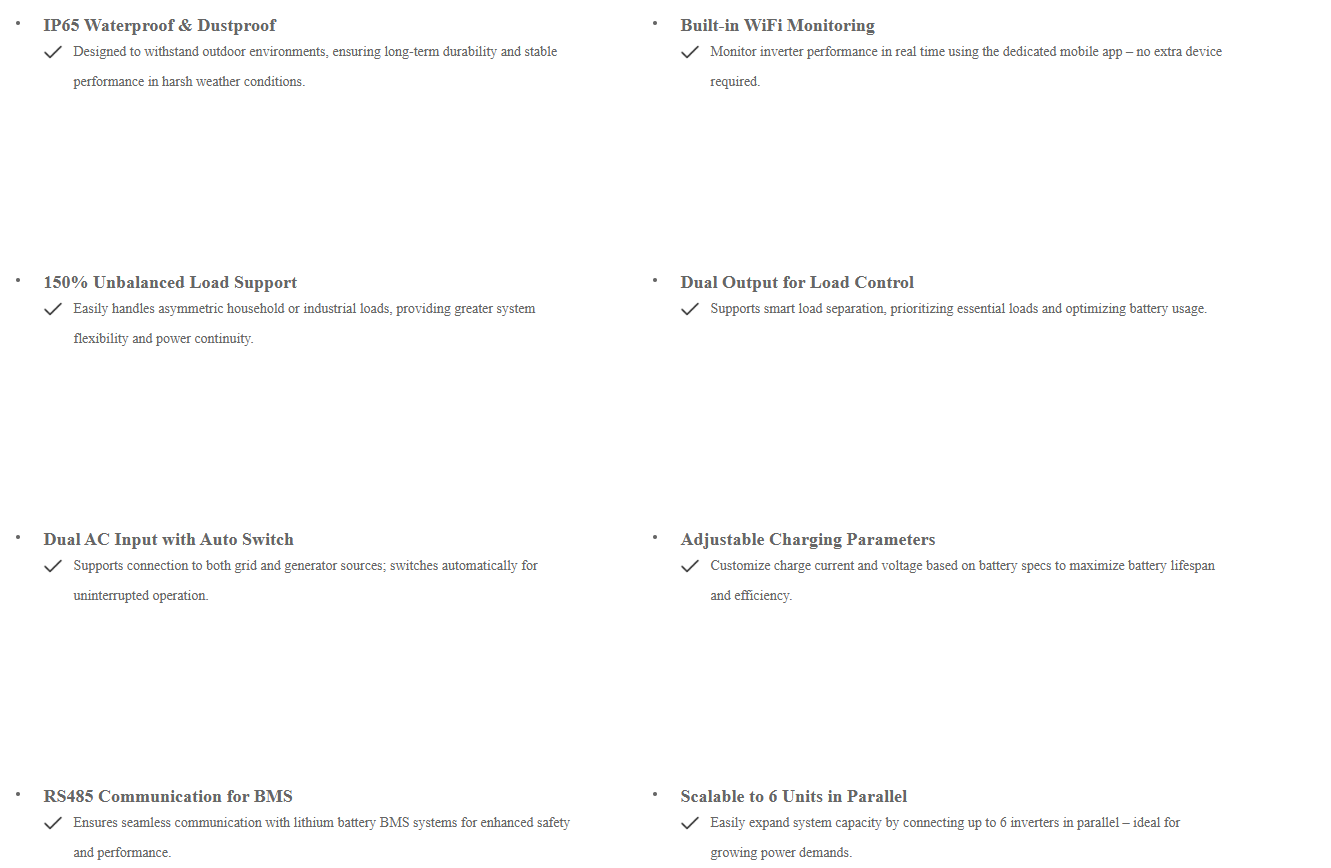

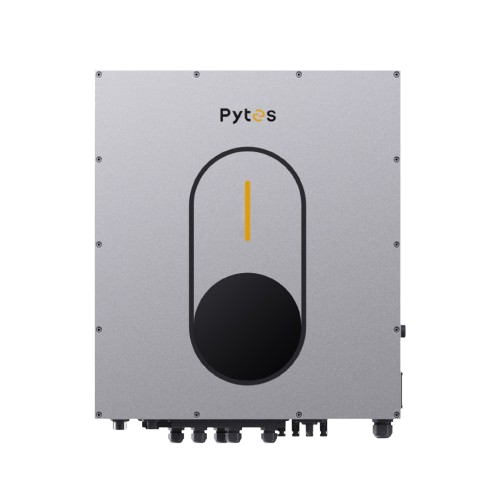

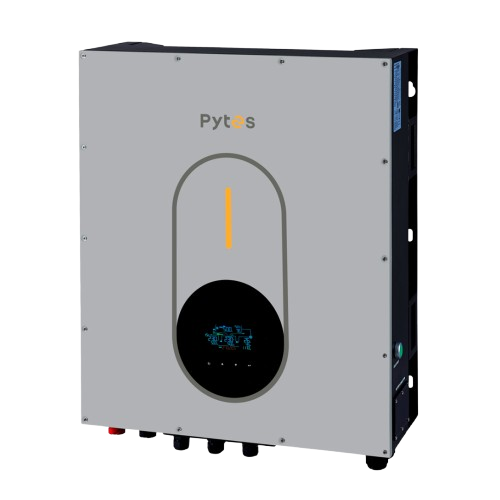

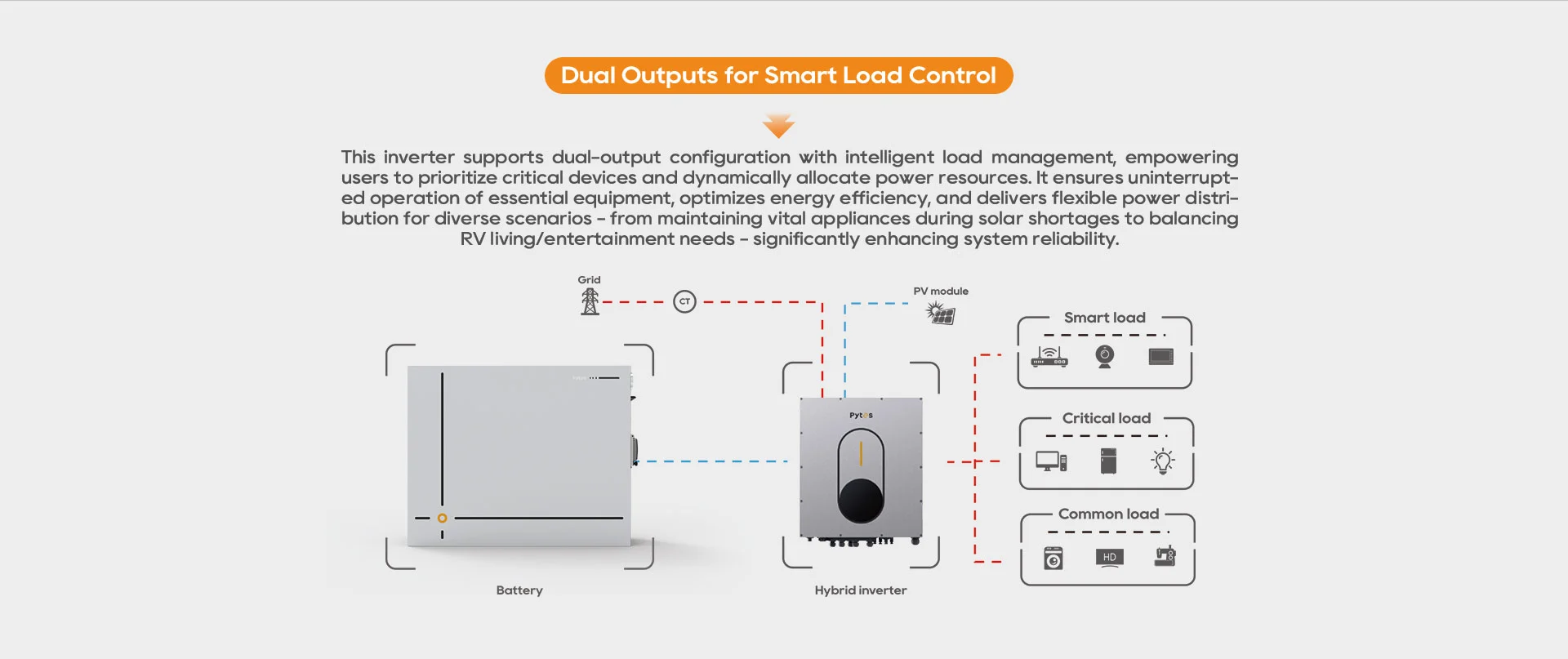

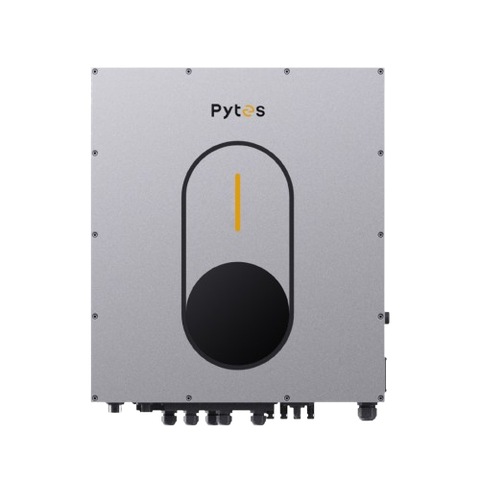

Pytes V3PL(8-15)K is a high-performance 8-15 kW hybrid inverter designed to meet the demands of both residential and small commercial energy storage systems. With IP65 waterproof protection, dual AC input, and smart load management, it ensures stable power supply under various conditions. Built-in WiFi monitoring, scalable parallel operation, and customizable charging settings make this inverter a flexible, reliable, and future-ready solution for off-grid and hybrid solar applications.
| MODEL | V3PL8K | V3PL10K | V3PL12K | V3PL15K |
|---|---|---|---|---|
| RATED POWER | 8000 W | 10000 W | 12000 W | 15000 W |
| PV INPUT (DC) | ||||
| Maximum DC Power | 12000 W | 15000 | 18000 W | 22500 W |
| Nominal DC Voltage | 720 VDC | |||
| Maximum DC Voltage | 900 VDC | 1000 VDC | ||
| Working DC Voltage Range | 150 VDC ~ 900 VDC | 300 VDC ~ 1000 VDC | ||
| Start-up Voltage / Initial Feeding Voltage | 150 VDC / 150 VDC | 320 VDC / 350 VDC | ||
| MPP Voltage Range / Full Load MPP Voltage Range | 150 VDC ~ 850 VDC / 400VDC ~ 850 VDC |
150 VDC ~ 850 VDC / 420VDC ~ 850 VDC |
150 VDC ~ 850 VDC / 400VDC ~ 850 VDC |
350 VDC ~ 950 VDC / 348 VDC ~ 900 VDC |
| Number of MPP Trackers / Maximum Input Current | 2 /A: 15A, B:15A | 2 /A: 18A, B:18A | 2 /A: 27A, B:18A | 2 / A: 26A, B:26A |
| GRID OUTPUT (AC) | ||||
| Nominal Output Voltage | 230 VAC (P-N) / 400 VAC (P-P) | |||
| Output Voltage Range | 184 - 265 VAC per phase | |||
| Output Frequency Range | 47.5 ~ 51.5 Hz or 59.3~ 60.5Hz |
|||
| Nominal Output Current | 11.6A per phase | 14.5A per phase | 17.4A per phase | 21.7A per phase |
| Inrush Current/Duration | 22 A per phase / 20ms | |||
| Maximum Output Fault Current/Duration | 66 A per phase / 1ms | |||
| Maximum output Overcurrent Protection | 66 A per phase | |||
| Power Factor Range | 0.9 lead – 0.9 lag | |||
| AC INPUT | ||||
| AC Start-up Voltage | 120-140 VAC per phase | |||
| Auto Restart Voltage | 180 VAC per phase | |||
| Acceptable Input Voltage Range | 170 - 290 VAC per phase | |||
| Nominal Frequency | 50 Hz / 60 Hz | |||
| AC Input Power | 8KVA/8KW | 10KVA/10KW | 12KVA/12KW | 15KVA/15KW |
| Maximum AC Input Current | 40 A | |||
| Inrush Input Current | 40 A / 1ms | |||
| BATTERY MODE OUTPUT (AC) | ||||
| Nominal Output Voltage | 230 VAC (P-N) / 400 VAC (P-P) | |||
| Output Frequency | 50 Hz / 60 Hz (auto sensing) | |||
| Output Waveform | Pure sine wave | |||
| Output Power | 8KVA/8KW | 10KVA/10KW | 12KVA/12KW | 15KVA/15KW |
| Efficiency (DC to AC) | 93% | 91% | ||
| BATTERY & CHARGER (Lead-acid/Li-ion) | ||||
| DC Voltage Range | 40 – 60 VDC | 40 – 62 VDC | ||
| Nominal DC Voltage | 48 VDC | |||
| Maximum Battery Discharging Current | 200A | 220A | 240 A | 375 A |
| Maximum Charging Current | 160A | 200A | 240 A | 300 A |
| GENERAL | ||||
| PHYSICAL | ||||
| Dimension, D X W X H (mm) | 247 x 500 x 650 | |||
| Net Weight (kgs) | 50 | 54 | 73 | |
| INTERACE | ||||
| Communication Port | RS-232/USB/RS485/CAN/WI-FI | |||
| Intelligent Slot | Optional SNMP, Modbus cards available | |||
| ENVIRONMENT | ||||
| Protective Class | I | |||
| Ingress Protection Rating | IP65 | |||
| Humidity | 0 ~ 100% RH (No condensing) | |||
| Operating Temperature | -25 to 60°C (Power derating above 45°C) | |||
| Altitude | Max. 1000m* | |||
