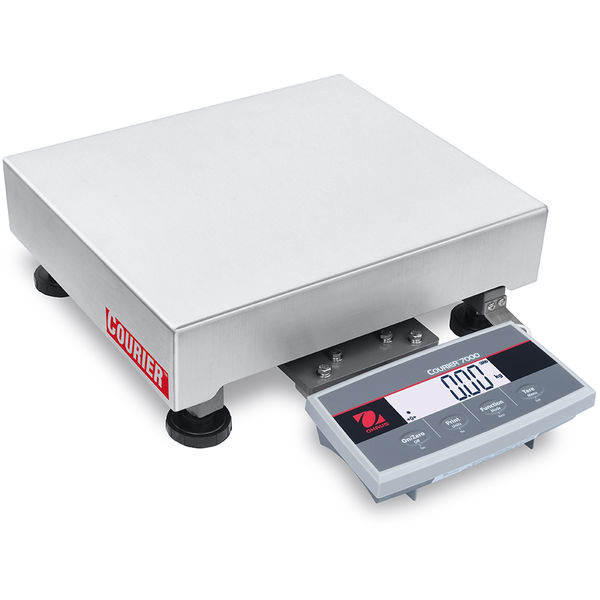

COURIER™ 7000
Precise Standard Scales for Dedicated Shipping Applications
COURIER™ 7000
Precise Standard Scales for Dedicated Shipping Applications
| C71M15R | C71M75R | C71M125L | |
| Maximum Capacity | 15 kg | 60 kg | 150 kg |
| Readability | 2 g | 10 g | 20 g |
| Readability (Certified) | 5 g | 20 g | 50 g |
| Item Number: | 30745967 | 30745968 | 30745970 |
OVERVIEW
| The Courier 7000 Series is designed specifically for the needs of manufacturing, distribution, and office shipping. The Courier 7000 Series features intuitive integration with PC-based shipping software so that data is captured accurately and efficiently – every time. |
Applications Weighing, Dynamic Weighing/Display Hold, Weight Alert, Totalization |
|
Display 6-digit, 7-segment LCD display with white backlight, 1.1 in./28 mm-high digits |
|
|
Operation Standard AC adapter with USB type C cable detachable (included) or 4 AA batteries (not included) |
|
|
Communication Easy access communication ports including standard RS232 and USB type C. Ethernet or 2nd RS232 or WiFi/Bluetooth (available as accessories sold separately) |
|
|
Construction ABS indicator, 304-stainless steel platform, powder-coated frame, aluminum load cell, non-slip adjustable rubber feet. |
|
|
Design Features 150% overload protection |
SPECIFICATIONS
| C71M15R | C71M75R | C71M125L | |
| Maximum Capacity | 15 kg | 60 kg | 150 kg |
| Readability | 2 g | 10 g | 20 g |
| Readability (Certified) | 5 g | 20 g | 50 g |
| Platform Size | 305 mm x 355 mm | 457 mm x 457 mm | |
| Battery Life | 70 Hours with Disposable Batteries | ||
| Legal for Trade | Not Applicable | ||
| Dimensions | 457.8 mm x 121.8 mm x 355 mm (LxHxW) | 597.8 mm x 111.5 mm x 457 mm (LxHxW) | |
| Tare Range | To capacity by subtraction | ||
| Working Environment | -10°C – 40°C, 85%RH, non-condensing | ||
| Platform Construction | Stainless Steel | ||
| Net Weight | 8 kg | 14 kg | |
| Second Scale Input | Not Applicable | ||
| Protection Rating | Not Applicable | ||
| In-Use Cover | No | ||
| Transportation Case | Not applicable | ||
| Communication | 2nd RS232 (Available as an Accessory); Ethernet (Available as an Accessory); USB (Included); RS232 (Included); WiFi/Bluetooth (available as an accessory); Mini Din (Included) | ||
| Power | USB Cable (Included); 4 AA (LR6) Batteries (Not Included); AC Adapter (Included) | ||
| Units of Measurement | Kilogram; Gram | ||
| Display | 7 segment LCD with backlight | ||
| Outputs | Not Applicable | ||
ACCESSORIES
|
Item Number 30472063 Description Auxiliary display AD7-MD |
|
|
Item Number 30045641 Description Printer, Impact, SF40A |
|
|

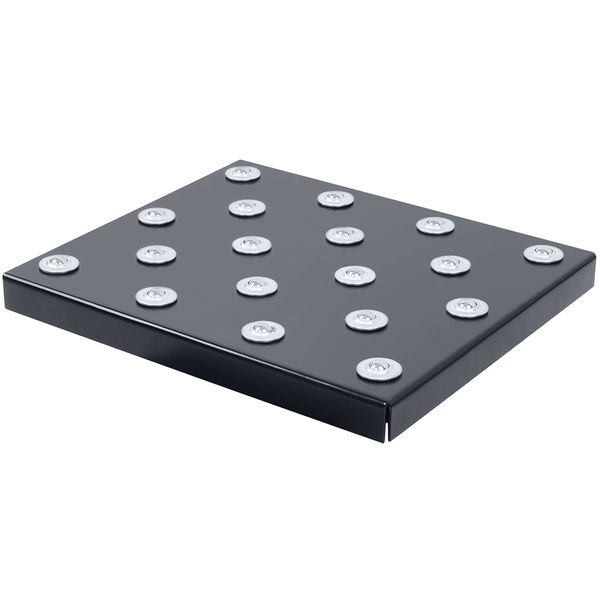

Item Number 30819627 Description Ball Top i-C71 458x458 mm |
|
|
Item Number 80500525 Description Cable RS232 IBM 9P Male-to-Female |
|
|

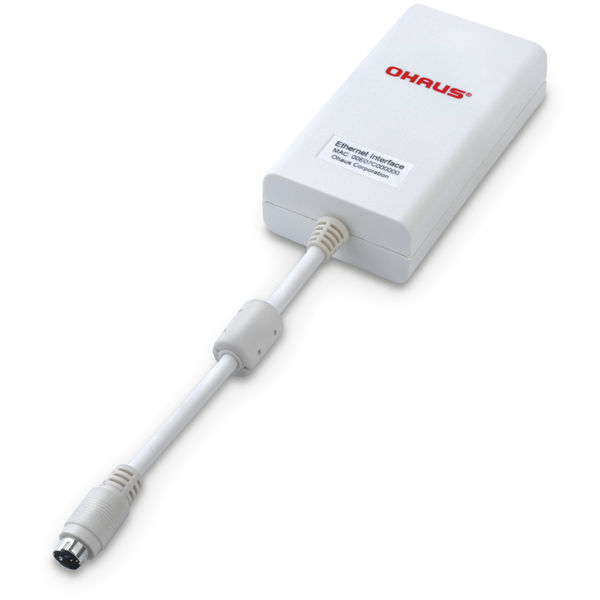

Item Number 30745882 Description Ethernet Kit i-C71 |
|
|

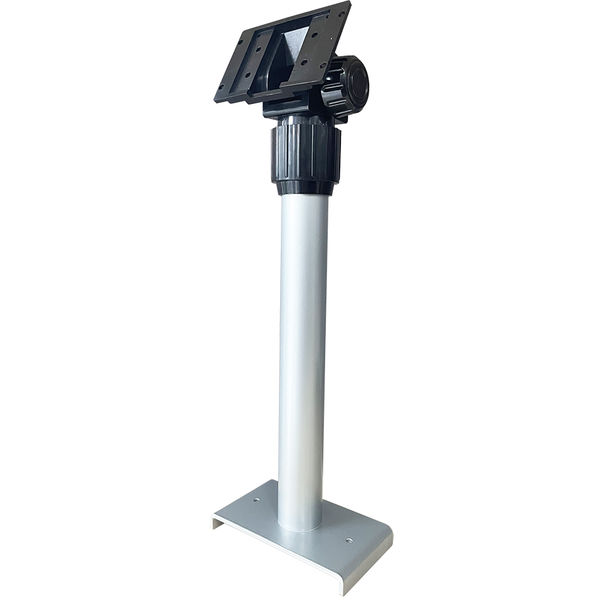

Item Number 30800931 Description Remote Column Kit i-C71_i-C52 CS 330 mm |
|
|

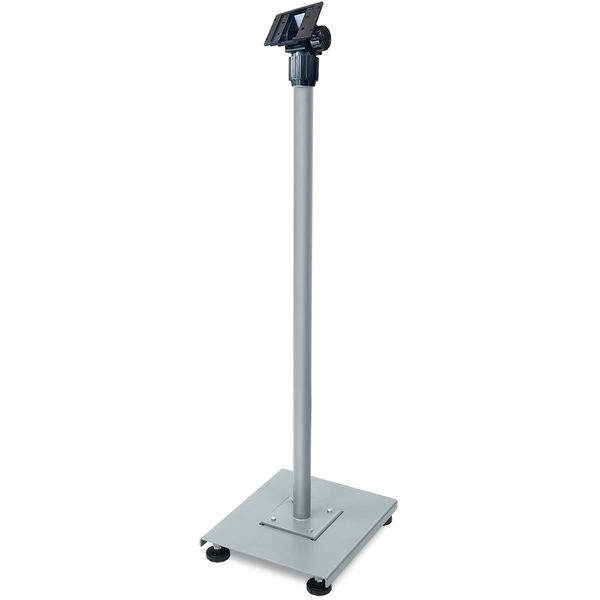

Item Number 30795819 Description Remote Column Kit i-C71_i-C52 CS 980 mm |
|
|

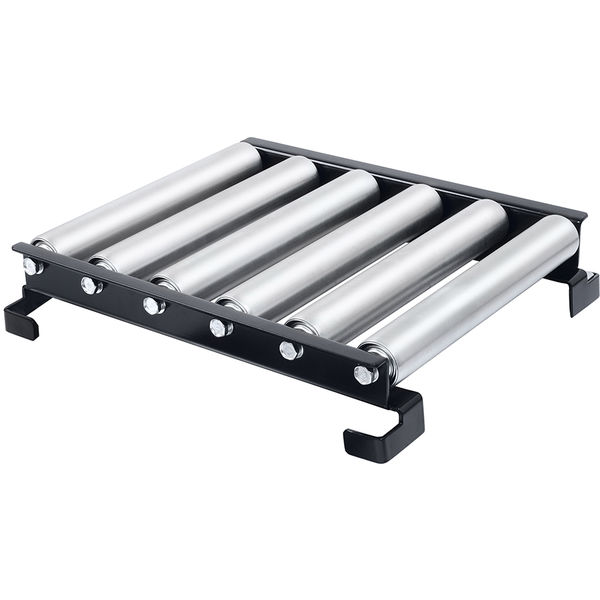

Item Number 30819649 Description Roller Top i-C71 458*458 |
|
|

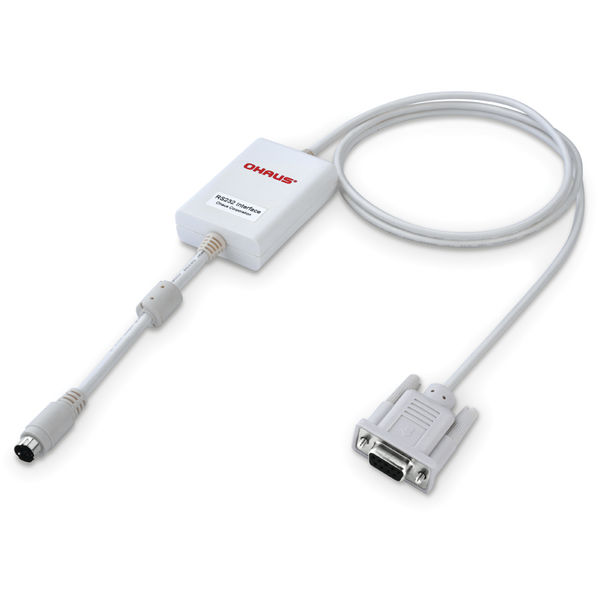

Item Number 30745880 Description RS232 Kit i-C71 |
|
|

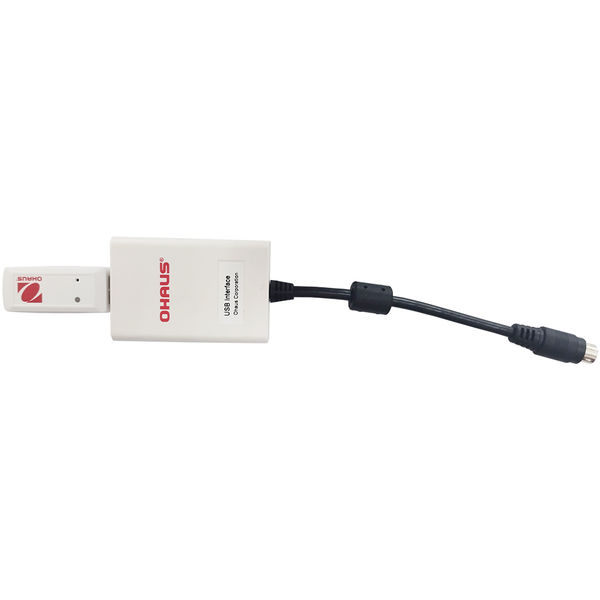

Item Number 30745881 Description Wifi-BT Kit i-C71 (USB Host + Dongle) |
DOCUMENTS
