VE SERIES PALLET PLATFORMS
Economical painted steel pallet scale with and without T31P indicator
| Maximum Capacity | 1,500 kg |
| Readability | 0.5 kg |
| Readability (Certified) | 0.5 kg |
| Item Number: | 80251476 |
OVERVIEW

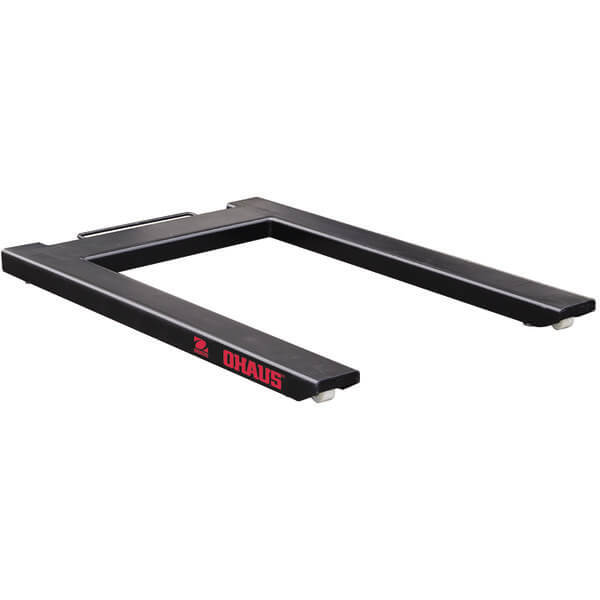

| The OHAUS VE Series U-Frame Pallet Scales are the value solution for your dry or washdown weighing needs in industrial and commercial applications. Their high-quality material and construction are designed for years of trouble-free service. Together with mobility features such as lifting handle and front-mounted rollers, the OHAUS VE Series U-Frame Pallet Scales offers a unique combination of convenience, value and quality that your company can depend on |
Applications Weighing (5 units), basic parts counting |
|
Display N/A |
|
|
Operation N/A
|
|
|
Communication N/A |
|
|
Construction ABS Indicator, painted carbon steel U-frame, 4 x H8C IP67 OIML R60 alloy steel load cells, IP65 stainless steel junction box |
|
|
Design Features Indicator with reversible rear cover for cable exit above or below the indicator housing, integrated key-hole mounts on back cover. U-frame with handle and front wheels |
SPECIFICATIONS
| Maximum Capacity | 1,500 kg |
| Readability | 0.5 kg |
| Readability (Certified) | 0.5 kg |
| Platform Size | 1,260 mm x 840 mm |
| Dimensions | 49.6 in x 3.5 in x 60 in (1,260 mm x 90 mm x 840 mm) (LxHxW) |
| Legal for Trade | EC Type Approvable |
| Net Weight | 51 kg |
| Platform Construction | Painted Steel Diamond Plate |
| Protection Rating | IP67 |
| Working Environment | -10°C – 40°C, 85%RH, non-condensing |
ACCESSORIES
|
Item Number 30047153 Description Column Kit, Painted, Floor Scale |
|||
|
Item Number 30047154 Description Column Kit, SST, Floor Scale |
|||
