E-Box 48100R

Thương hiệu: Pytes

Tình trạng: Còn hàng

Liên hệ

Description
Specifications
Documents

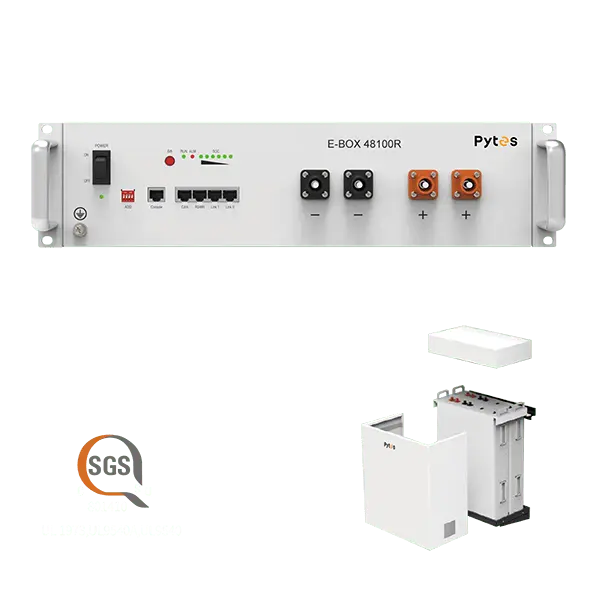

E-Box 48100R

The advanced Lithium Ferro Phosphate (LFP) chemistry battery, delivers safer and more efficient energy storage.
Compatible with all leading inverters, E-Box 48100R is a smart choice for battery replacement, expansion or a new installation.

certificate authentication

	Safe and Reliable Tier 1 Automotive Grade A prismatic LiFePO4 cells Self-developed BMS (Dual active MCU protection) State-of-the-art battery pack design achieves market-leading performance and safety		Long-lasting and Efficient ≥6000 cycles @90%DOD, ret@70%, 25℃ ≥95% Round-trip efficiency 10 years warranty, Up to 20 years design life Product Liability Insurance for North and Latin America
	Certifications UL9540, UL1973, UL9540A, CEC, SGIP, UN38.3		Wide Compatibility Compatible with most inverter brands on the market
	Compact, Flexible and Easy Install Slimmer than most 5kWh server rack batteries Can be installed vertically and horizontally Brackets and battery enclosures available Wall mount, floor-stand or server rack mount		Wide Applications Off-grid, Back-up, Zero Export, Time-of-Use, Demand Response, Peak Shaving, and Virtual Power Plant Home Appliances, Electric Power Systems, Uninterrupted Power Supply

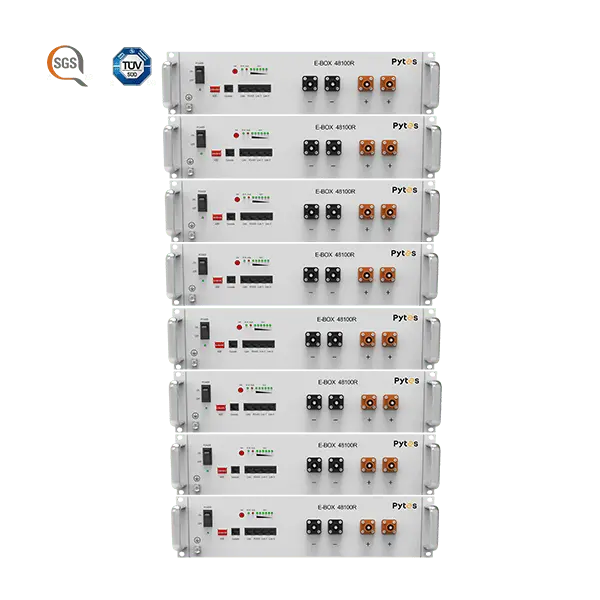

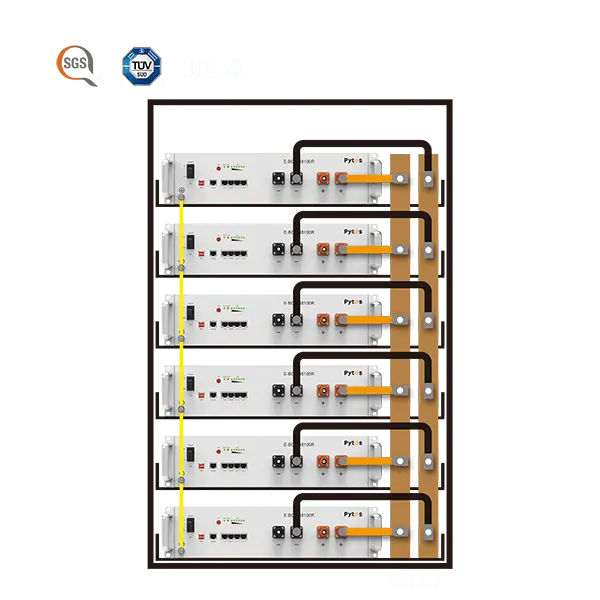

	Scalable for Demand Expandable up to 491.52kWh Max support 96 units parallel connection		Local Delivery & Services Local stock for faster delivery Local team provides comprehensive services

Electrical
Nominal Voltage	51.2V
Voltage Range	47.5V~57.6V
Nominal Capacity	100Ah
Nominal Energy	5.12kWh
Recommended Charge/Discharge Current	50A (2.56kW DC)
Maximum Charge/Discharge Current	50A (2.56kW DC)
Peak Discharge Current	102A (5.22kW@15s)

General
Chemistry	LFP
Communication Protocol	CAN/RS485
Dimensions (LWH)	440 * 620 * 117mm (2.6U) / 17.3 * 24.4 * 4.6 inch (2.6U)
Weight	51 kg / 112.5 lbs
Ambient Temperature	-10°C~50°C / 14°F~122°F
Round-Trip Efficiency	≥95%
Cycle Life*	≥6000cycl
Warranty	10 Years
