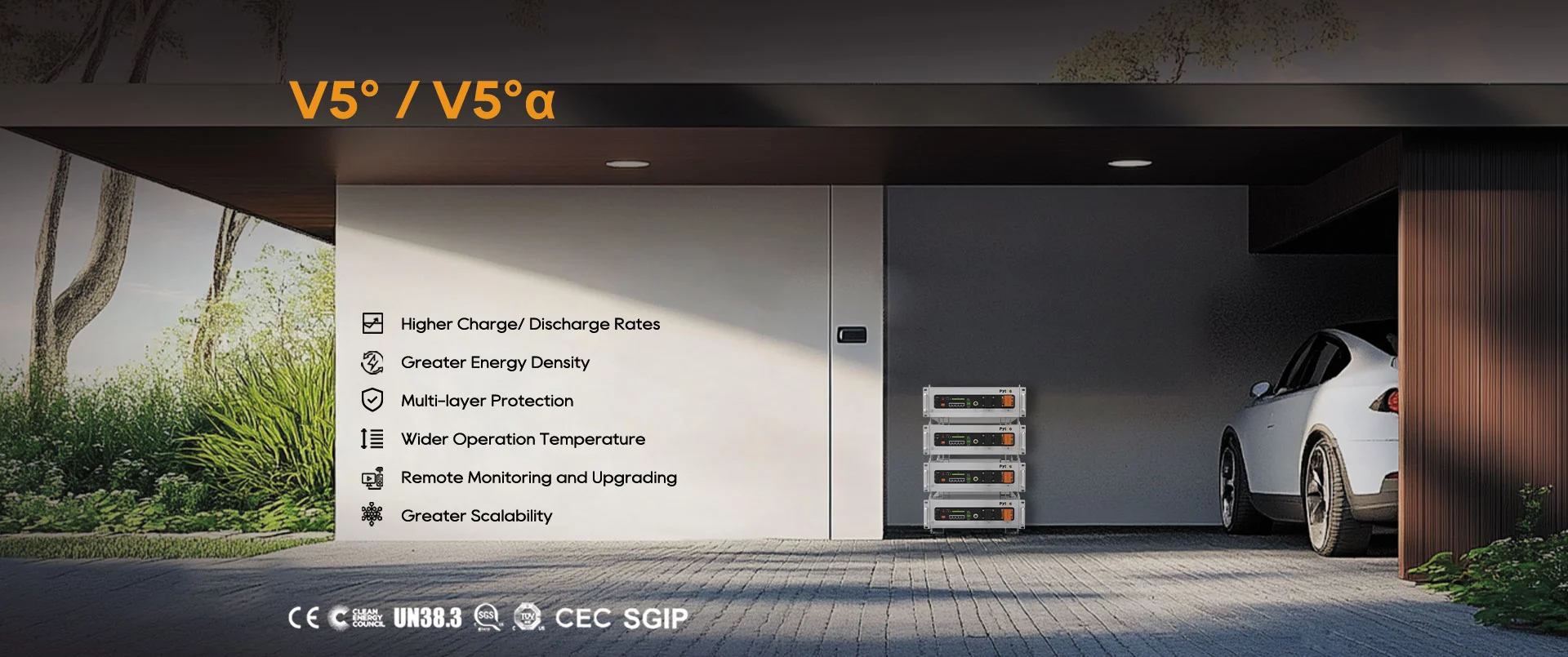

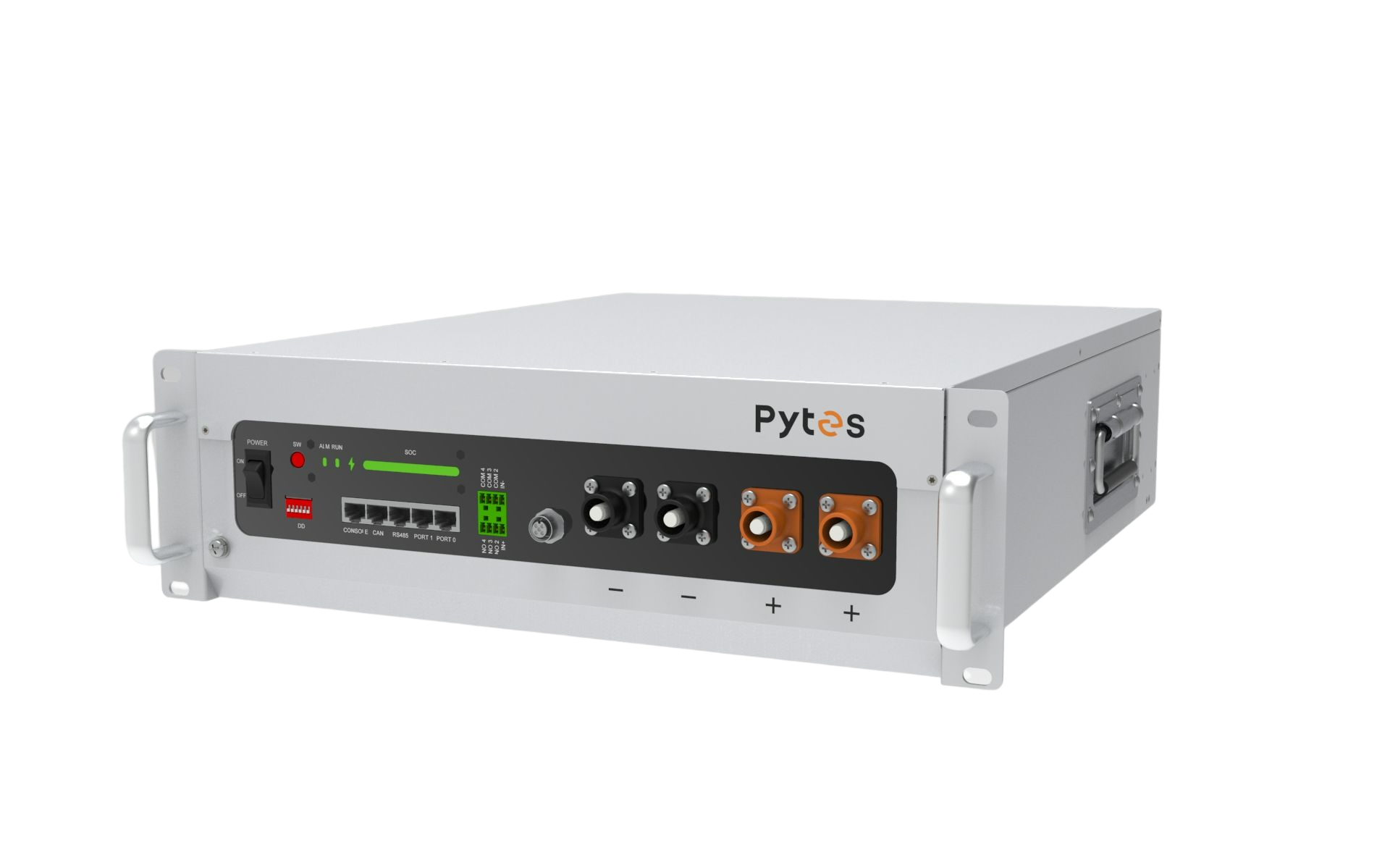

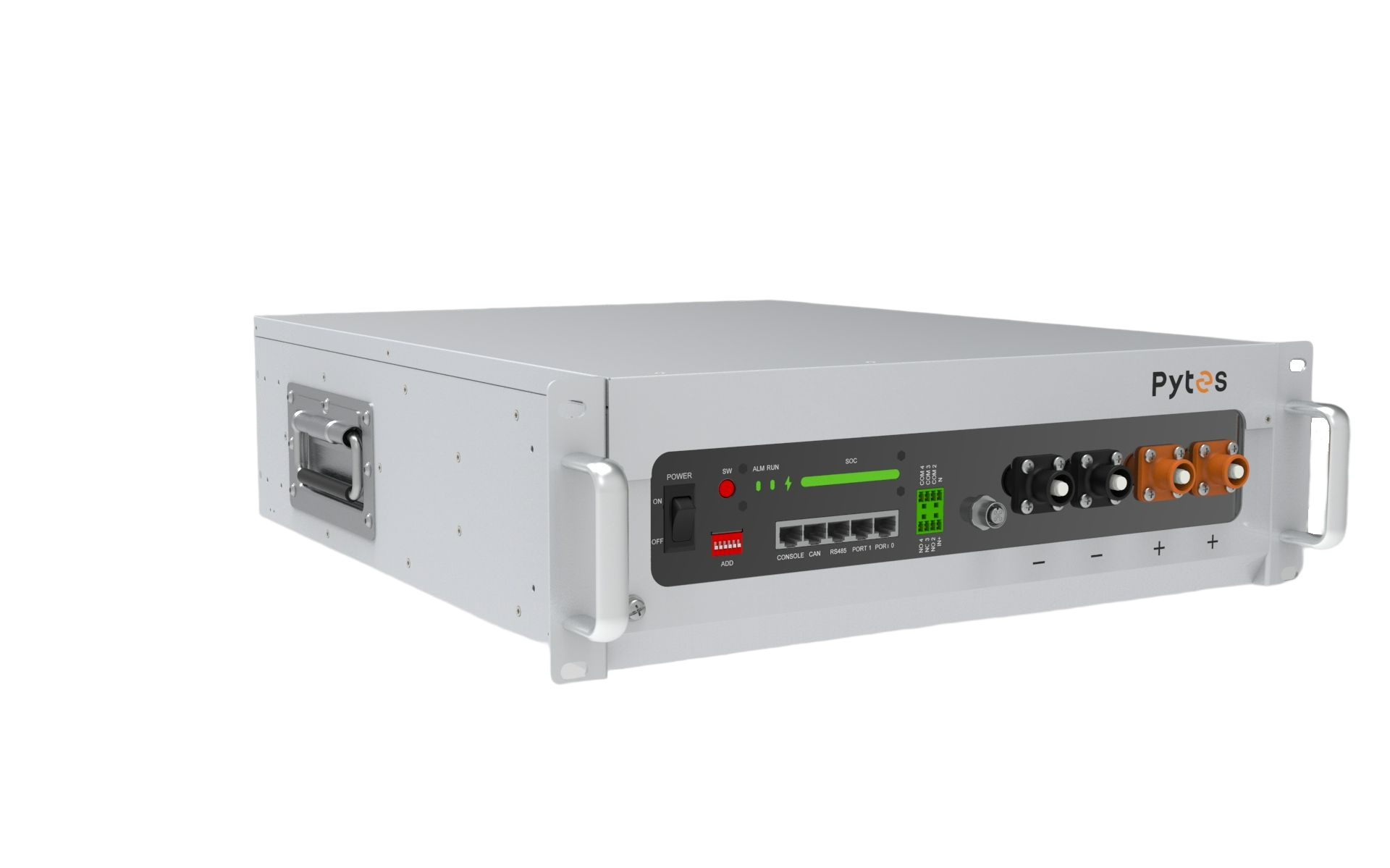

V5°/V5°α

The new LFP battery for home energy storage system.
It helps to save your money on electric bill when use during peak, and make you feel confident facing outage, with electricity stored either from solar panels or grid.

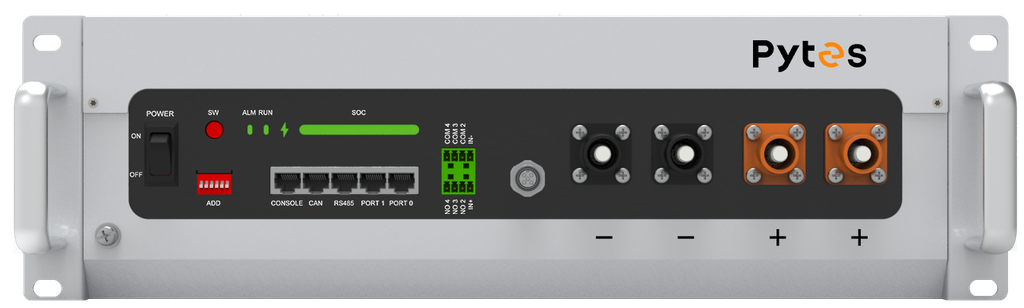

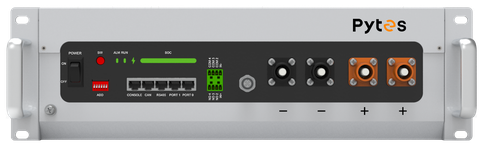

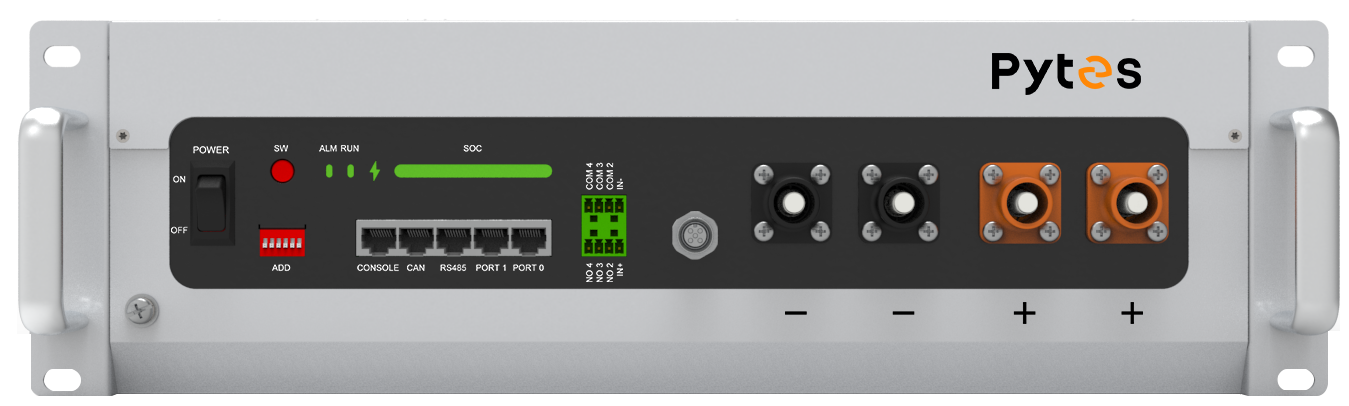

Connection Options
V5°: PHOENIX M6 Bolt
V5°α: Amphenol SurLok Plus 8.0mm

certificate authentication

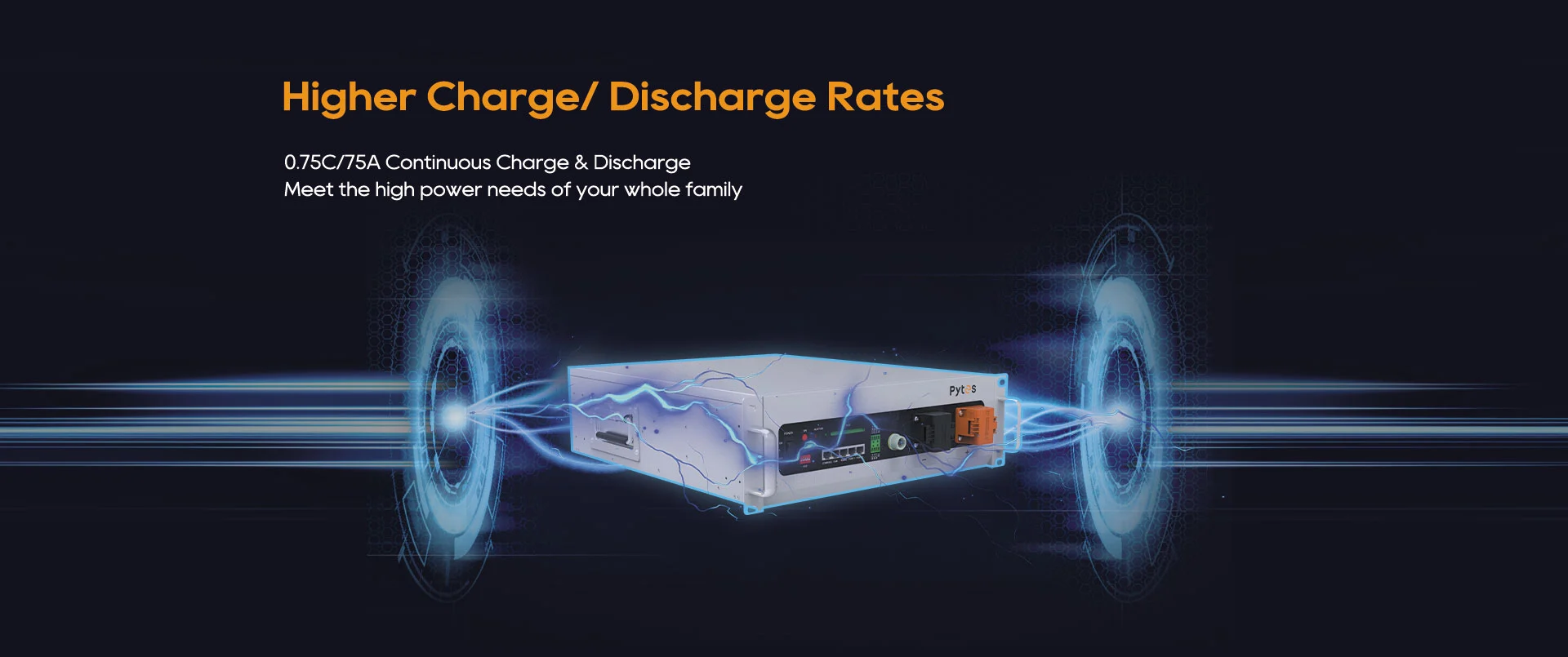

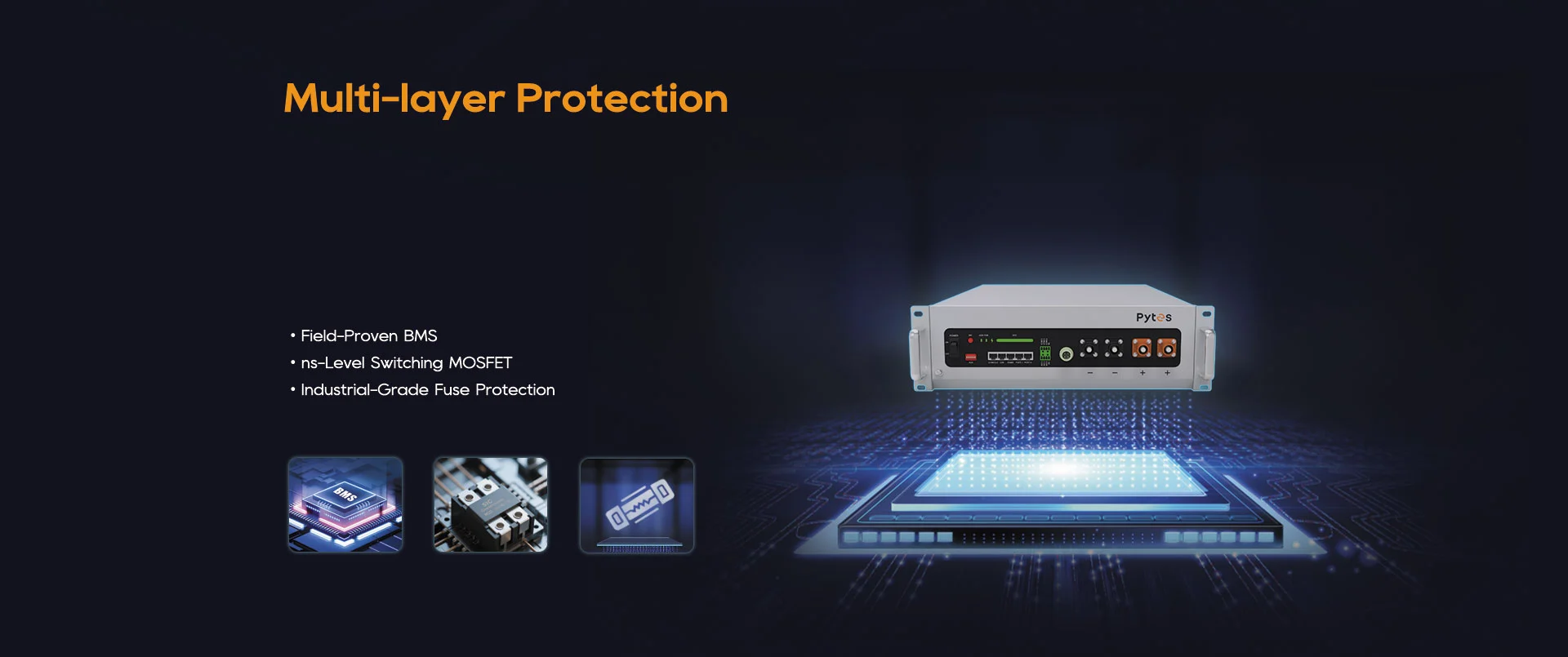

	Higher Charge/Discharge Rate Recommended Charge Current 75A Maximum Charge Current 100A Recommended Discharge Current 75A Maximum Discharge Current 100A Peak Discharge Current 101-120A (3min) Peak Discharge Current 121-200A (15sec)		Multiple Protection BMS Over Current Alarm Short Current Protection FUSE 360A
	Heating System Keep the Battery Working in the Optimal Temperature Range Wider Battery Operating Temperature Range Multiple Protections -- Software & Hardware Low Power Consumption - 170W Over 10 Years Design Life		WEB/APP Real-time Monitoring Remote Upgrading Alarm Notification Data Visualization Error Detection

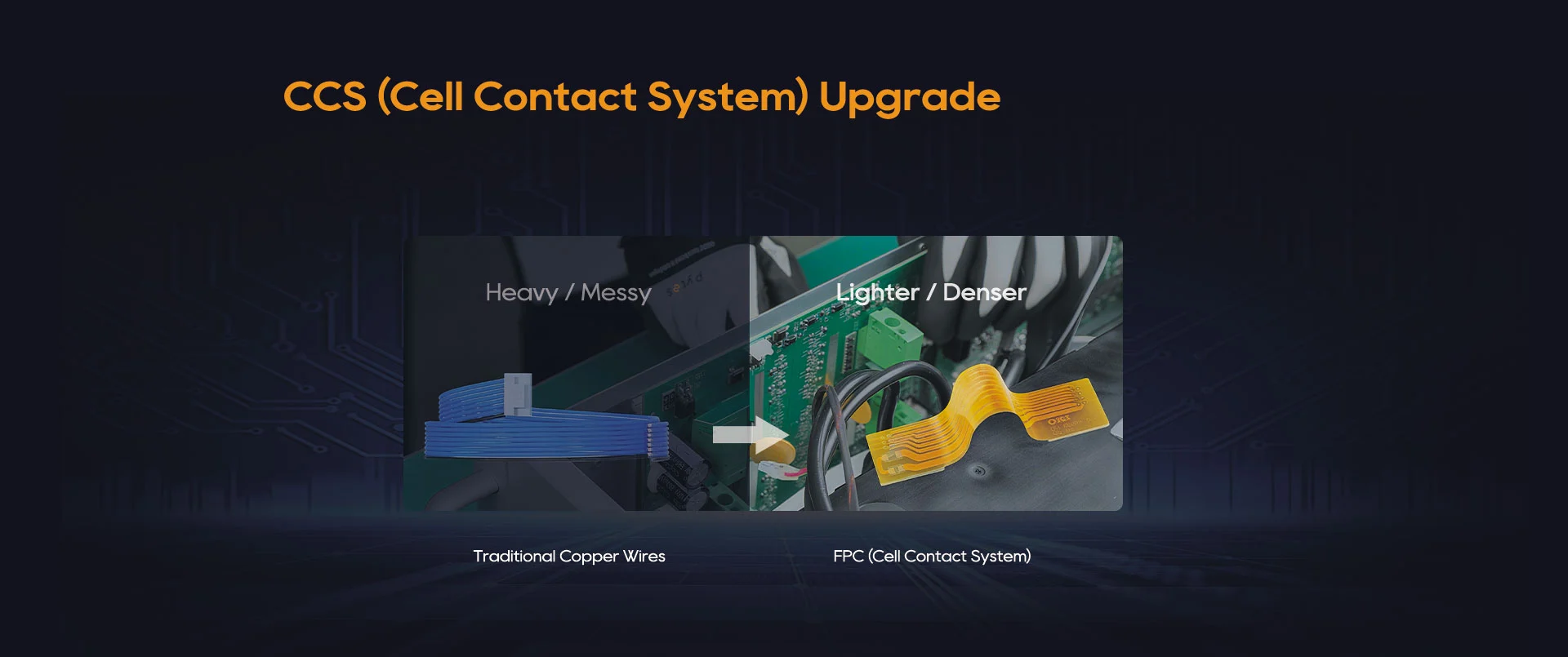

	Cell Contact System High Reliability Highly Integrated High Energy Density High Security		Wide Compatibility Compatible with most inverter brands on the market
	Certifications UL9540 Ed.2 (2020), UL9540A, UL1973, CEC, SGIP, CE, IEC62619, UN38.3 OEM Co-Listing available		Long-lasting and Efficient ≥6000 cycles @90%DOD, ret@70%, 25℃ >95% Round-trip efficiency 10 years warranty, Up to 20 years design life

Battery Model	V5°/V5°α
Electrical
Nominal Voltage	51.2V
Voltage Range	100Ah
Nominal Energy	47.5V~57.6V
Recommended Charge/Discharge Current	75A
Max Continuous Charge/Discharge Current	75A
Peak Charge/Discharge Current	101A~120A (3min); 121A~180A (15sec)
General

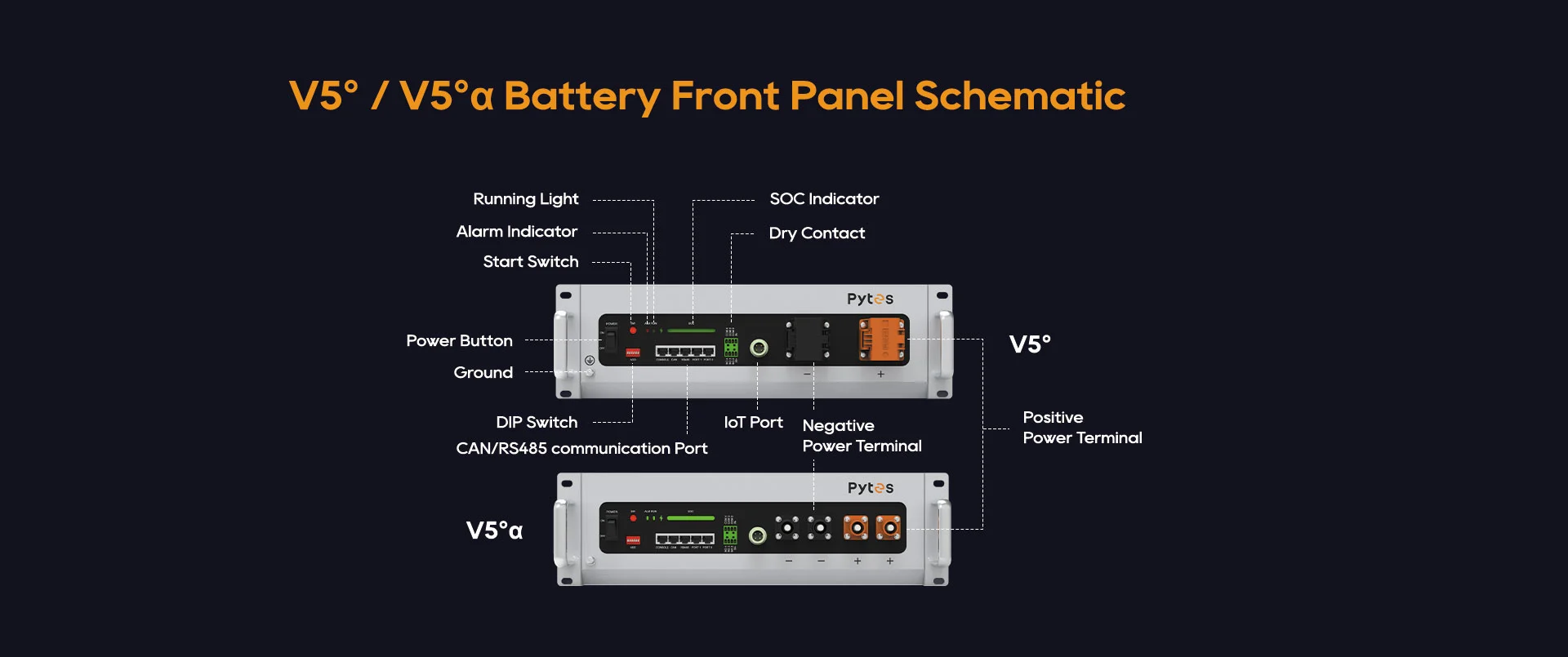

Connection Options	V5°: PHOENIX M6 Bolt V5°α: Amphenol SurLok Plus 8.0mm
Chemistry	LFP
Communication Protocol	CAN/RS485
Dimensions(L x W x H)	442530140mm/17.4020.875.51inch(3.2U)
Weight	44kg/97lbs
Ambient Temperature	-10°C~50°C/14°F~122°F
Cycle Life*	≥6000 cycles
Warranty	10 Years

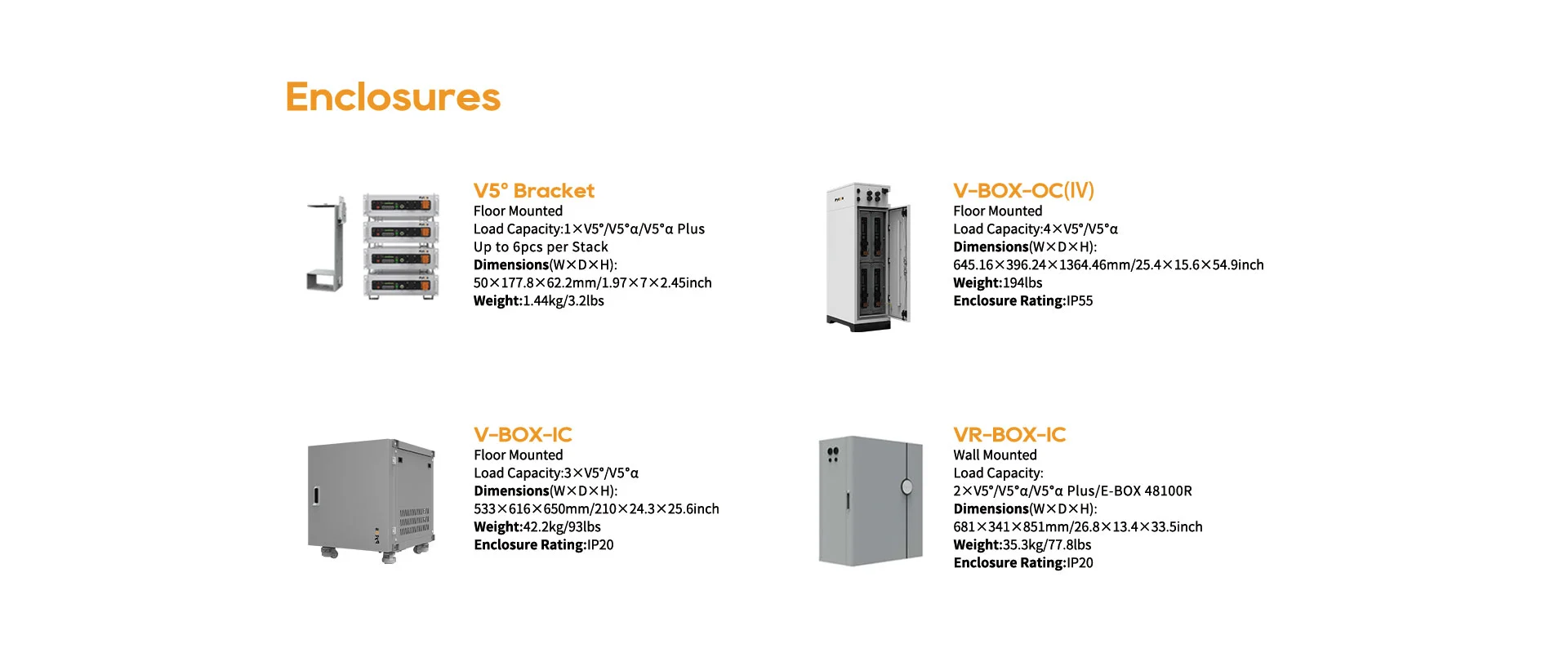

Mounting Method	Wall / Ground (W/ Optional Battery Tray)
Heating Pad (Integrated)	Temperature Rise: 14.4°F/h / 8°C/h

Add-on Functionalities

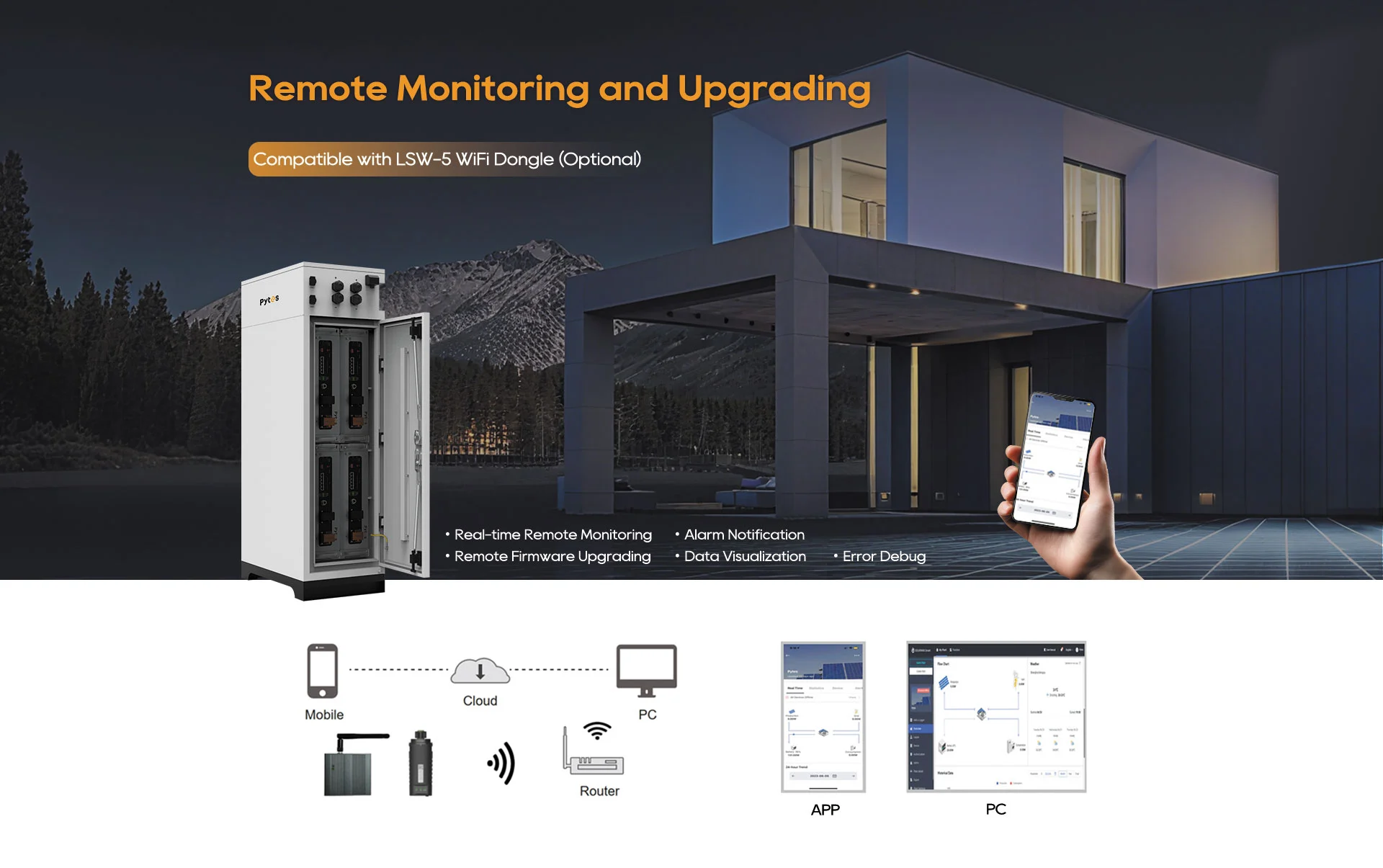

WIFI Connection	Remote monitoring and upgrade
Heating Pad	Temperature Rise: 10°C/h / 18°F/h Operation Temperature: -18°C~10°C/-0.40°F~50°F

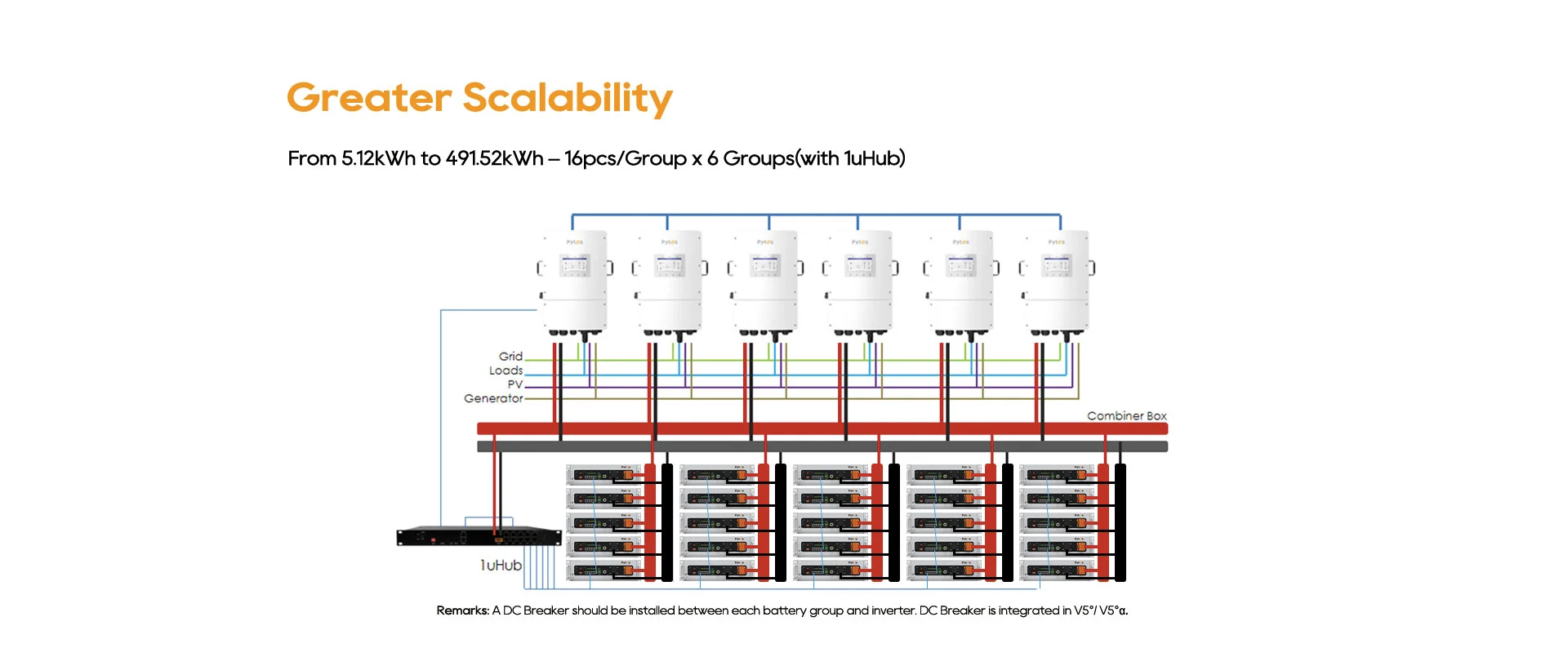

Scalability	16 pcs (81.92kWh) in a group 6 groups (491.52kWh) in a system w/a Hub

V5° & V5°α Quick User Manual 20250724

V5° Datasheet 20241111

Certifications
UL9540 Ed.2 (2020), UL9540A, UL1973, CEC, SGIP, CE, IEC62619, UN38.3
