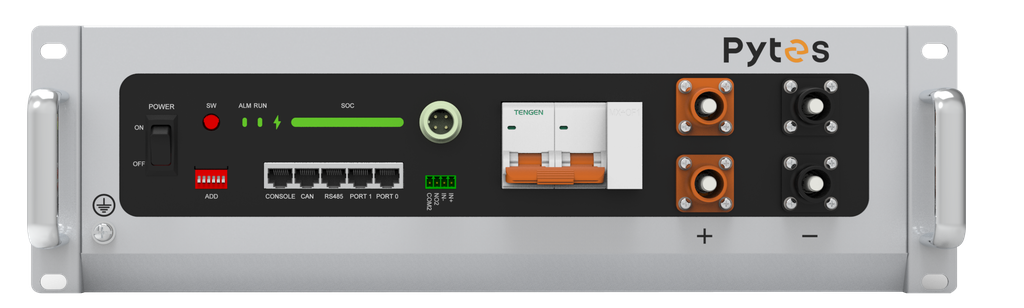

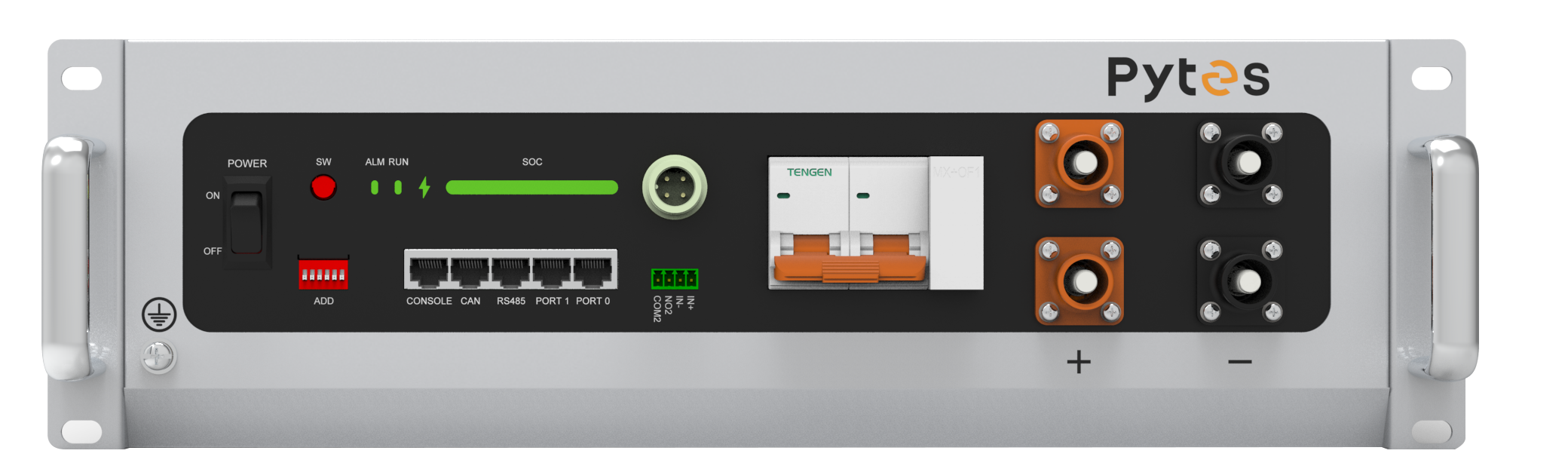

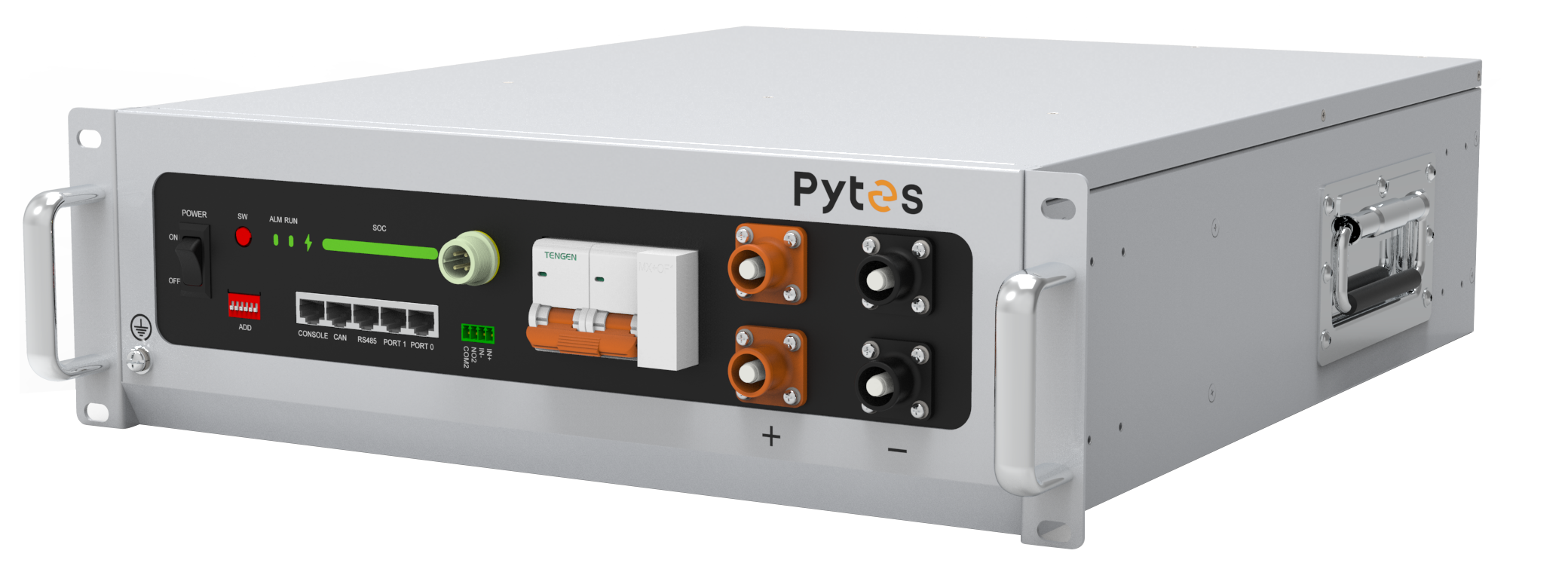

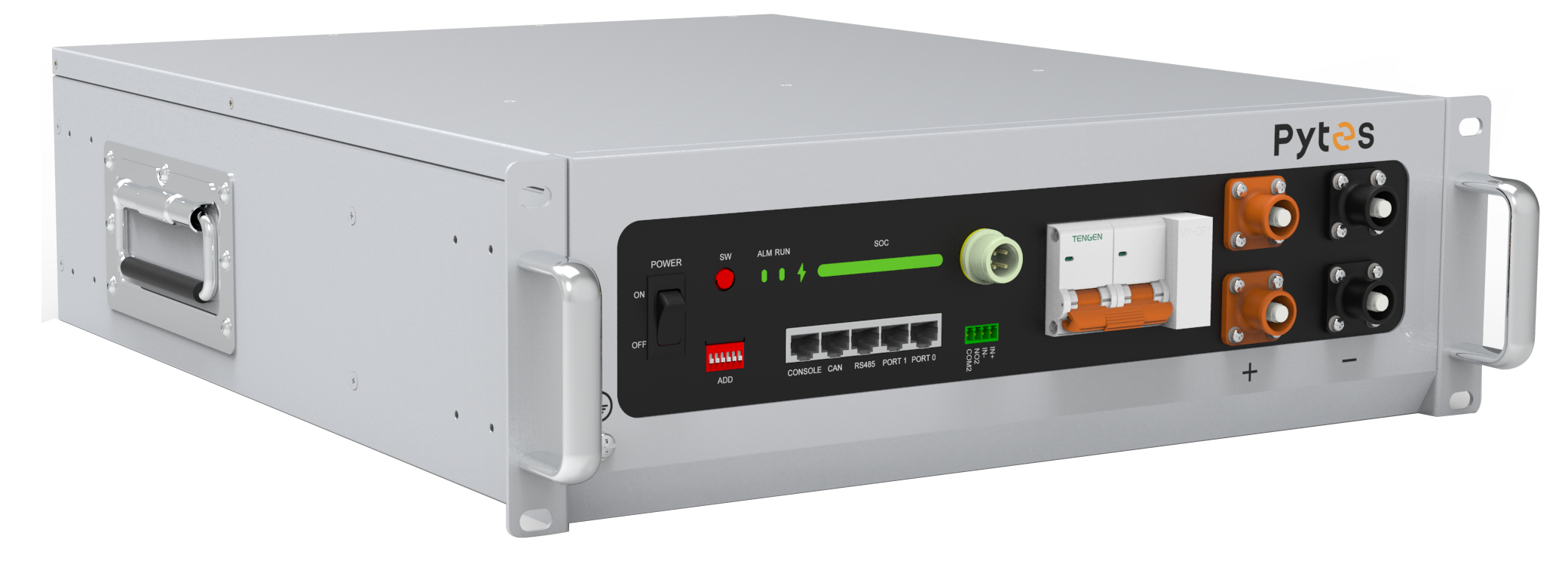

Pytes V5°α Plus is a high-performance 51.2V 5.12kWh LiFePO₄ battery module, purpose-built for home and small business energy storage needs. Designed for rack-mounted installations, this battery features advanced BMS protection, fire suppression, remote monitoring, and easy parallel scalability — from a single unit to large capacity setups. Whether you're going off-grid, using solar backup, or enhancing self-consumption, V5°α Plus provides long-lasting power, industry-grade safety, and plug-and-play expansion.
 |
Higher Charge/Discharge Rate
|
 |
Tripple Safe Protections
|
 |
Heating System
|
 |
WEB/APP
|
 |
Cell Contact System
|
 |
Wide Compatibility
|
 |
Certifications
|
 |
Long-lasting and Efficient
|
| Battery Model | V5°α Plus |
|---|---|
| Electrical | |
| Chemistry | LFP |
| Nominal Voltage | 51.2V |
| Nominal Energy | 47.5V~57.6V |
| Voltage Range | 100Ah |
| Recommended Charge/Discharge Current[1] | 75A |
| Max Continuous Charge/Discharge Current[2] | 75A |
| Peak Charge/Discharge Current |
101A~120A (3min); |
| Integrated Breaker | DC 125V/125A |
| General | |
| Connection Options |
Amphenol SurLok Plus 8.0mm |
| Chemistry | LFP |
| Communication Protocol | CAN/RS485 |
|
Dimensions(L x W x H) |
484*578.2*140mm/19.05*22.76*5.51inch(3.2U) |
| Weight | 45.34kg/100lbs |
| Ambient Temperature | -10°C~50°C/14°F~122°F |
| Round-Trip Efficiency | ≥95% |
| Cycle Life* | ≥6000 cycles |
| Warranty | 10 Years |
| Mounting Method | Wall / Ground (W/ Optional Battery Tray) |
| Add-on Functionalities | |
|---|---|
| WIFI Connection | Remote monitoring and upgrade |
| Heating Pad |
Temperature Rise: 10°C/h / 18°F/h |
| Scalability | 16 pcs (81.92kWh) in a group
6 groups (491.52kWh) in a system w/a Hub |
| Certifications | |
|---|---|
| UL9540 Ed.2 (2020), UL9540A, UL1973, CEC, SGIP, CE, IEC62619, UN38.3 |
