Drive Through Floor Scale Large Platform 5x5 Floor Scale 15000 Lb Waterproof

Drive Through Floor Scale Large Platform 5x5 Floor Scale 15000 Lb Waterproof

Thương hiệu: SMARTWEIGH

Tình trạng: Còn hàng

Liên hệ

Description
Specifications
Documents

Product Details:

Place of Origin:	CHINA
Brand Name:	SMARTWEIGH
Certification:	ISO , CE
Model Number:	PFA226

Payment & Shipping Terms:

Minimum Order Quantity:	10 set
Price:	Negotiable
Packaging Details:	Carton box with wooden pallet
Delivery Time:	3-4 weeks
Payment Terms:	LC,T/T, Weston Union, MoneyGram
Supply Ability:	1000 sets per month

Detailed Product Description

Size::	1.2x1.2M; ( Can Customized)	Capacities:	3000Kg;
Platform Height:	Low Profile 60mm	Division::	0.5Kg;
Material:	Carbon Steel Q235B	Surface Finish:	Tread-plate With Epoxy Baking Paint
Power Supply:	110V-240V;50-60Hz	Connection:	5m Signal Cable With Standard Plug
High Light:	industrial floor pallet scale, heavy duty floor scales

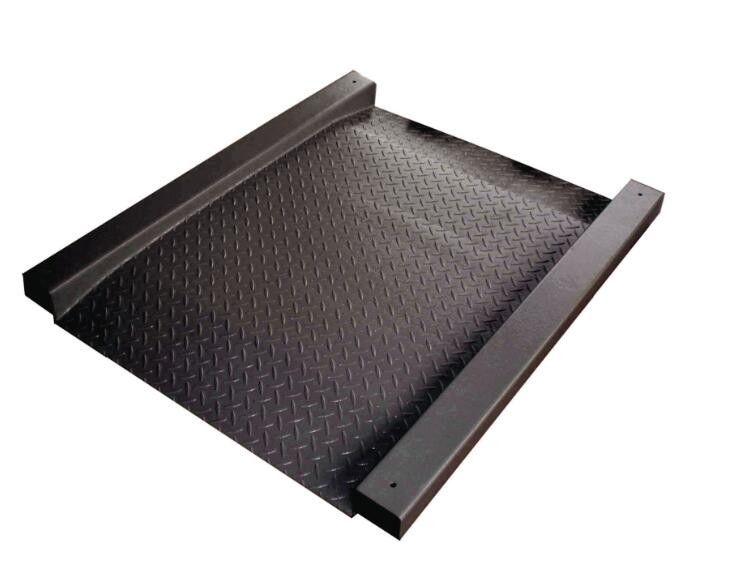

Drive Through Floor Scale Low Profile Platform Scales 5x5 Floor Scale 15000 Lb

Smartweigh floor scales are designed to meet a wide range of industrial weighing needs. They provide reliable weighing for users that demand proven performance in batching, filling, weigh-out, counting, and other operations.The heavy channel reinforced construction is ideal for demanding operations, including heavy forklift traffic. Standard products: painted mild steel and stainless steel models in 0.6x0.6M to 1.5x1.5M sizes and 500Kg to 5000Kg capacities. the integral ramps allow the cargo to roll on and down easily, and the Zinc handle and rubber wheels make the roll on platform scales to be portable anywhere. Our capabilities let you specify a custom floor scale for your application.

Speficication of the Drive Through Floor Scales:

Floor Scale Model PFA226Series	Size(Meter)	Capacity(Kg)	Loadcells	Indicator
PFA226-1010	1.0x1.0M	500-1000Kg	High precision C3 alloy steel or stainless steel load cells four pieces	Digital LED / LCD out-stand indicator with RS232 output, connect to PC
PFA226-1212	1.2x1.2M	1000-3000Kg
PFA226-1212	1.2x1.2M	3000-5000Kg
PFA226-1515	1.5x1.5M	1000-3000Kg
PFA226-1215	1.5x1.5M	3000-5000Kg
PFA226-1215	1.2x1.5M	1000-3000Kg
PFA226-2020	2.0x2.0M	1000-3000Kg
PFA226-2020	2.0x2.0M	3000-5000Kg
PFA226-2020	2.0x2.0M	5000-8000Kg

Features and Advantages

1.Available in a range of standard sizes and capacities.
2.Can be made to any custom size, shape or capacity to meed unique needs.
3.Built for strength, reliability and repeatable accuracy.
4.Carbon steel and baking epoxy paint.
5.Standard Capacity: 500Kg-5000Kg.
6.Checkered top plate to skid proof.
7.High precision shear beam load cells with adjustable feet and locating plates.
8.Threaded eyebolt holes on top plate of each corner for easy adjusting feet height.

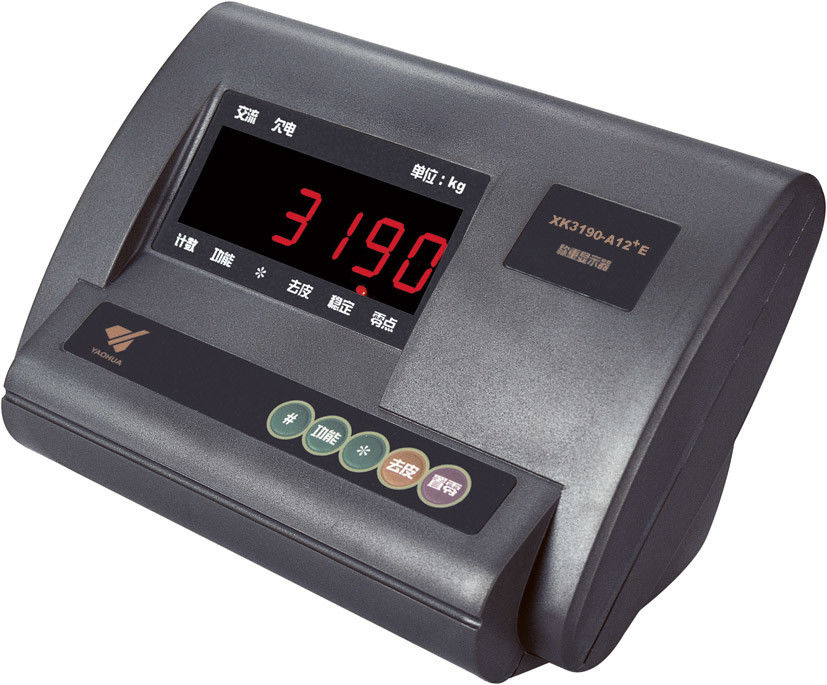

9.Digital out-stand indicator (LCD / LED) with high accuaracy.

10.The integral ramps allow the cargo to roll on and down.

11.the Zinc handle and rubber wheels make scales to be portable anywhere.
12.All purposed basic weighing functions, date and time, animal weighing, counting, and accumulation etc.
13.Ideal for daily, constant usage and heavy duty applications.

Options:

1. Free-standing columns

2. Two Side Hand Rails

Drive Through Floor Scale Large Platform 5x5 Floor Scale 15000 Lb Waterproof 0
