Hot Dipped Galvanized Heavy Duty Weighbridge Scale Test Truck Modular Movable

Thương hiệu: SMARTWEIGH
Tình trạng: Còn hàng
Liên hệ

Hot Dipped Galvanized Heavy Duty Weighbridge Scale Test Truck Modular MovableProduct Details:

Place of Origin: CHINA
Brand Name: SMARTWEIGH
Certification: ISO/CE/SGS
Model Number: HWTS 7573

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Scales body with plastic film package, electronic parts with carton box
Delivery Time: 3-8 weeks
Payment Terms: LC,TT, Weston Union, MoneyGram
Supply Ability: 100 sets per month

Detailed Product Description

Max Capacity: 30-300T Verification Scale Value: 10-100Kg
Weighing Platform Width: 3/3.4/4/4.5( Can Customized) Weighing Platform Length: 7-24m (can Customized)
Civil Work Type: Shallow Foundation Relatively Humidity: <95%
CLC: Max Axle Load 30% Of Total Capacity Hazardous Condition: Yes
High Light:

pit mounted weighbridge

weighbridge load cell





Hot Galvanized Truck Scales Hot Dipped Galvanized Weighbridge in Hazardous Condition Robust Weighing Systems

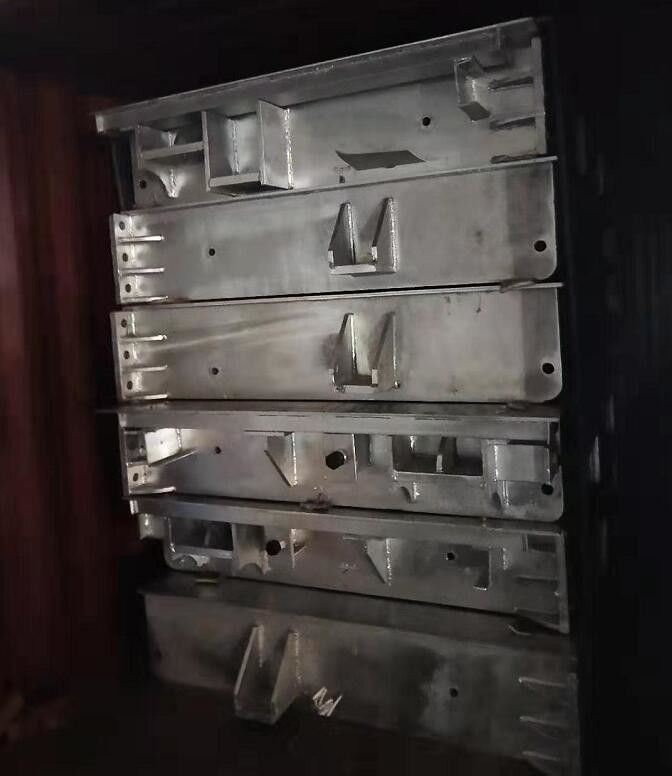

Rust and corrosion can shorten the life of a weighbridge. A painted finish is suitable for most industrial applications, but extremely corrosive environments require greater protection. For demanding applications, we offer a galvanized finish for truck scales. Hot-dip galvanizing is a process used to coat steel with a protective layer of zinc.The galvanizing process causes a metallurgical reaction, forming an alloy that acts as a barrier between the steel and the outside atmosphere.It is far longer than the life span of most vehicle scales, a galvanized weighbridge is essentially maintenance free.


Specification of Hot Galvanized Truck Scales:

Truck Scale Capacity Section Parts Load cell TEU Container
3*6M 20-50t 1 2 4 20GP
3*7M 20-50t 1 2 4 40GP
3*8M 20-50t 2 4 6 20GP
3*9M 30-60t 2 4 6 20GP
3*10M 30-60t 2 4 6 20GP
3*12M 30-60t 2 4 6 20GP or 4GP
3*14M 50-100t 3 6 8 20GP
3*15M 60-100t 3 6 8 20GP
3*16M 60-100t 3 6 8 20GP
3*18M 60-150t 3 6 8 40GP
3*20M 60-150t 4 8 10 40GP
3*24M 60-150t 4 8 10 40GP
3.4*12M 30-60t 2 4 6 20GP or 40GP
3.4*14M 50-100t 3 6 8 20GP
3.4*16M 60-100t 3 6 8 20GP
3.4*18M 60-150t 3 6 8 40GP
3.4*20M 60-150t 4 8 10 40GP
3.4*24M 60-150t 4 8 10 40GP

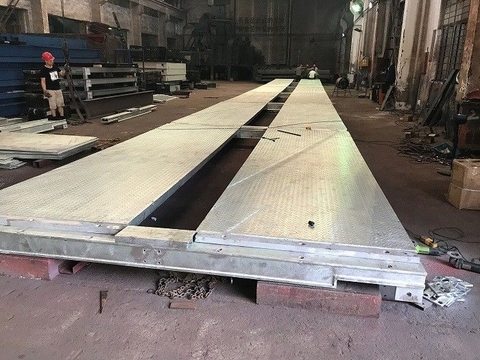

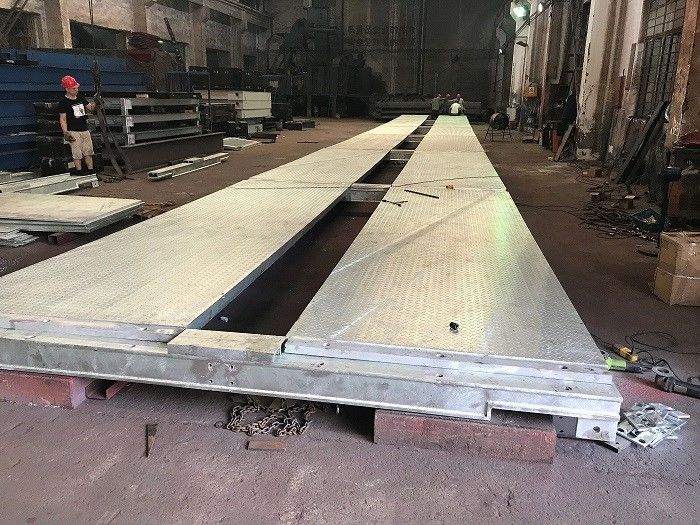

Hot Dipped Galvanized Heavy Duty Weighbridge Scale Test Truck Modular Movable 0


Features and Advantages:

  1. The modular design of these products allow for customization to suit your exact needs.
  2. Completely anti corrosion of the finish and longer life span than most of the scales
  3. Over 30 years of maintence finish free.
  4. Every new weighbridge design undergoes rigorous lifecycle testing.
  5. Proven design of the bridge type U-type welded ribs help direct the pressure of a heavy load away from areas .
  6. Automatic professional welding along the seam of each rib to the deck ensure lasting strength.
  7. High performance load cells, good accuracy and reliability make clients maximum income.
  8. Stainless house of the controller, stable and reliable, different kinds of interfaces
  9. Many storage functions: Vehicle number, Tare storage, Accumulation storage and many data report output.

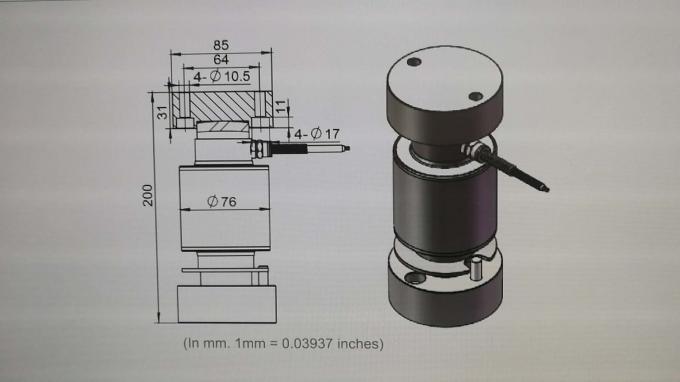

Our High Accuracy Loadcells:


Hot Dipped Galvanized Heavy Duty Weighbridge Scale Test Truck Modular Movable 1

  • Nickel plated alloy steel IP68 column shear load cell
  • Hermetically sealed
  • Suitable for truck, track, hopper and other electronic weighing
  • devices
  • High accuracy
  • Protected against lightning surges
  • Current calibrated (sc option).


Digital Display fitted with Dipped Galvanized Weighbridge:


Hot Dipped Galvanized Heavy Duty Weighbridge Scale Test Truck Modular Movable 2

XK3190-DS10 display
The is suitable for static weighing systems with 1 to 16 digital sensors, such as electronic ground scales, electronic truck scales, and static rail scales. Cooperate with “balance housekeeper” software to manage weighing records anytime and anywhere, monitor the health and safety status of weighing system, remote diagnosis and other Internet of Things functions.

◆Equipped with GPRS Internet of Things interface, with the "balance management" software to achieve Internet of Things function
◆ Equipped with a variety of anti-cheat functions to protect metering safety
◆ Equipped with a variety of health detection functions, large data scale analysis, to ensure the healthy use of scales
◆It can be connected to a simple unattended system such as camera, light curtain, card reader, gate, traffic light, etc.
◆It can be used for calibration and debugging, setting parameters, etc. by connecting to the mobile phone via Bluetooth.
◆Optional: Ethernet, 4~20mA, switch, Modbus, wireless large screen interface, etc.


  Standard accessories of electronic parts:

  1. Load cells
  2. Indicator
  3. Junction Box with signal cables

Optional accessories of electronic parts:

  1. Big scoreboard to see the big digits more conveniently.
  2. PC and Printer or printing Weight Bill
  3. Management weighing system software
  4. Camera, traffic lights, barrier gate, louder speaker.

Optional parts for the weighing platforms:

  1. Big scoreboard.
  2. PC and Printer or Weight Bill
  3. Management weighing system software
  4. Unattended Systems for the vehicle sale (Camera, traffic lights, barrier gate, louder speaker etc) .

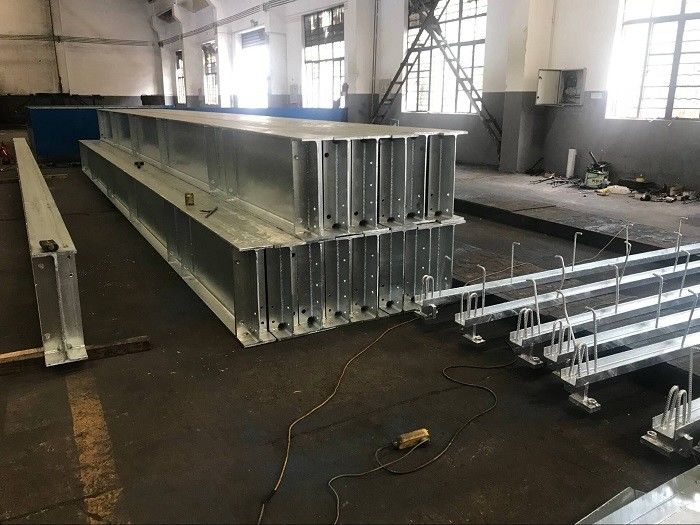

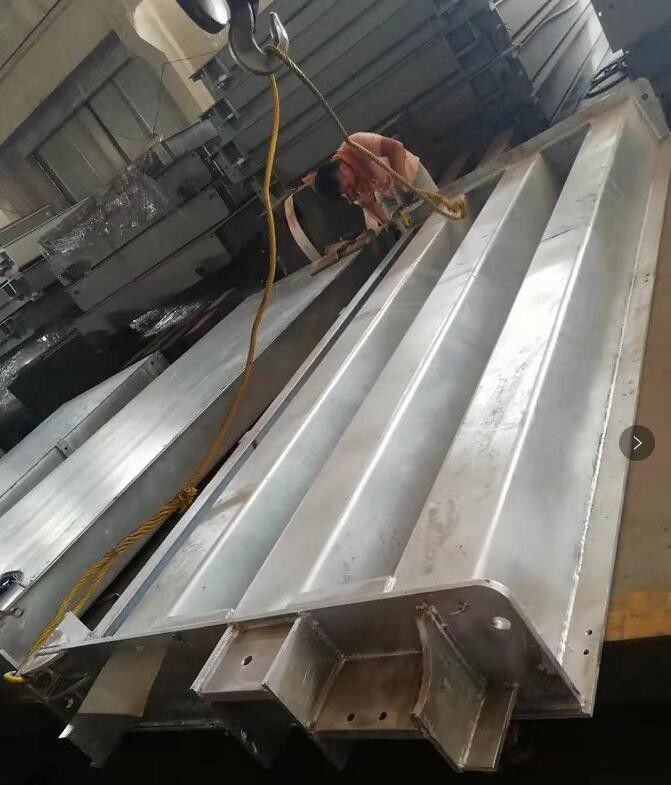

Truck Weighbridge Manufacturing Process

Hot Dipped Galvanized Heavy Duty Weighbridge Scale Test Truck Modular Movable 3
