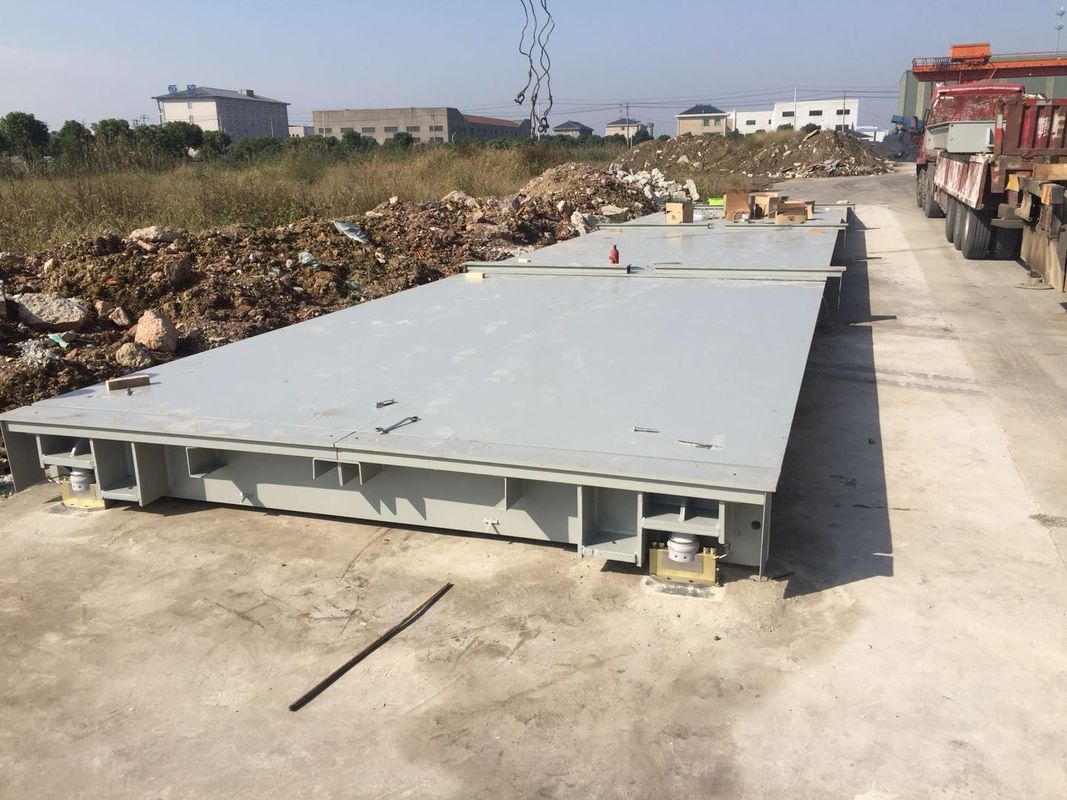

Lorry Dump Truck Scales 80 Ton 100 Ton Weighbridge 21 Meter Platform Length

Thương hiệu: SMARTWEIGH
Tình trạng: Còn hàng
Liên hệ

Product Details:

Place of Origin: CHINA
Brand Name: SMARTWEIGH
Certification: ISO/CE/SGS
Model Number: HWTS 7570

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Scales body with plastic film package, electronic parts with carton box
Delivery Time: 3-8 weeks
Payment Terms: LC,TT, Weston Union, MoneyGram
Supply Ability: 100 sets per month

Detailed Product Description

Max Capacity: 10-300T Verification Scale Value: 5-100Kg
Weighing Platform Width: 3/3.4/4/4.5( Can Customized) Weighing Platform Length: 6-24m (can Customized)
Civil Work Type: Pitless Foundation CLC: Max Axle Load 30% Of Total Capacity
Over Load: 150%F.S Weighing Mode: Analog
High Light:

pit mounted weighbridge, weighbridge load cell

 Heavy Duty Weighbridges 100 Ton Weighbridge Dump Truck Scales 80 Ton Lorry Weighbridge

     Truck scales in this category are designed for trucks that are used for heavy-capacity weighing. Superior craftsmanship and our High accuracy load cells put SMARTWEIGH pitless type weighbridges ahead of the competition. Make sure you are asking all the right questions when looking for a scale best for your application



Specification of Dump Truck Scales :

Model SCS-30 SCS-40 SCS-50 SCS-60 SCS-80 SCS-100 SCS-120 SCS-150
Capacity 30T 40T 50T 60T 80T 100T 120T 150T
Graduation Value 10kg 10kg 20kg 20kg 20kg 20kg 20kg 20kg
3.0×7M
3.0×9M
3.0×10M
3.0×12M
3.0×14M
3.0×15M
3.0×16M
3.0×18M
3.0×20M
3.2×12M
3.2×14M
3.2×16M
3.2×18M
3.2×20M
3.4×14M
3.4×16M
3.4×18M
3.4×21M

                                   Lorry Dump Truck Scales 80 Ton 100 Ton Weighbridge 21 Meter Platform Length 0



Features and Advantages of the Weighbridge Solutions:

  1. The modular design of these products allow for customization to suit your exact needs.
  2. Every new weighbridge design undergoes rigorous lifecycle testing.
  3. Proven design of the bridge type U-type welded ribs help direct the pressure of a heavy load away from areas.
  4. Automatic professional welding along the seam of each rib to the deck ensure lasting strength.
  5. High performance load cells, good accuracy and reliability make clients maximum income.
  6. Stainless house of the controller, stable and reliable, different kinds of interfaces
  7. Many storage functions: Vehicle number, Tare storage, Accumulation storage and many data report output.

 Our High Accuracy ball type loadcells HM9B:

  1. Nickel plated alloy steel IP68 dual shear beam load cell
  2. High accuracy OIML R60 C3
  3. Capacity:10-50t
  4. Current calibrated

Lorry Dump Truck Scales 80 Ton 100 Ton Weighbridge 21 Meter Platform Length 1

Digital Indicator A9P with LED backlight:

  1. AC/DC power supply.
  2. User-defined printing content and format:
  3. User-defined printing format, and be able to connect with serial printing interface and thermal printer
  4. Reliable shield and anti-jamming:
  5. Adopts hardware for shielding and reduces external-jamming and damage of interface.                                                                                        Lorry Dump Truck Scales 80 Ton 100 Ton Weighbridge 21 Meter Platform Length 2



Standard accessories of electronic parts:

  1. High Precision Load cells
  2. Digital Weight Indicator
  3. Stainless Junction Box with signal cables



Optional accessories of electronic parts:



  1. Big scoreboard.
  2. PC and Printer or Weight Bill
  3. Management weighing system software
  4. Unattended Systems for the vehicle sale (Camera, traffic lights, barrier gate, louder speaker etc) .



Optional parts for the weighing platforms:

  1. Two side rails for protection of the trucks driving.
  2. Climb steel ramps for trucks easy get on and off the weighing platforms.
  3. Temporary Frame to make the weighbridge portable easily
  4. Man hole plates customized.
