Concrete Platform Truck Scale Weighbridge / 3×10M 150 Ton Heavy Duty Weighing Scale

Thương hiệu: SMARTWEIGH
Tình trạng: Còn hàng
Liên hệ

Product Details:

Place of Origin: CHINA
Brand Name: SMARTWEIGH
Certification: ISO/CE/SGS
Model Number: HWTS 7570

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Scales body with plastic film package, electronic parts with carton box
Delivery Time: 3-8 weeks
Payment Terms: LC,T/T, Weston Union, MoneyGram
Supply Ability: 100 sets per month

Detailed Product Description

Max Capacity: 60-150T Verification Scale Value: 10-20Kg
Weighing Platform Width: 3/3.4/4/4.5meter( Can Customized) Weighing Platform Length: 6-24meter (can Customized)
CLC: Over 30% Of Total Capacity Name: Built-In Concrete Weighbridge
USE: Weighing For Trucks
High Light:

electronic weighing bridge system, vehicle weighing solutions

Weighbridge Made Of Precast Concrete Concrete Platform Weighbridge Heavy Duty Concrete Truck Scales

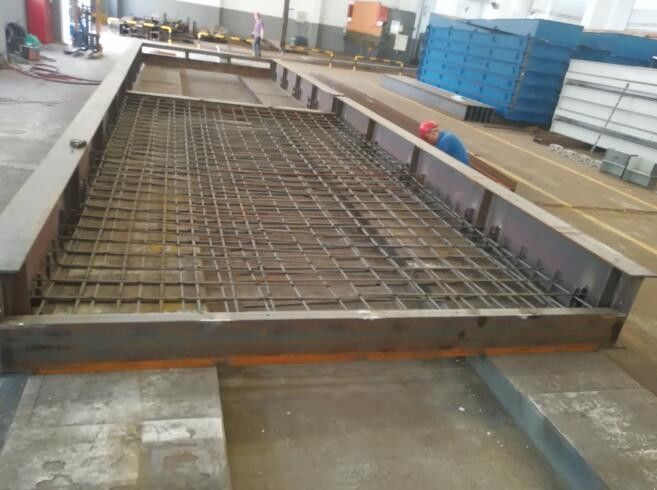

Model 7570 Road Weighbridge is a concrete-deck scale for weighing highway vehicles. It is designed for above-ground installation. Driving surface is reinforced concrete (250mm thick) with a modular steel framework. Steel I-beam framework is assembled on site and provides a built-in side rail for safety. Our high accuracy load cells transmit a powerful signal for accurate, reliable weighing.

                                    Specification Of Reinforced Concrete Weighbridge:

Model SCS-30 SCS-40 SCS-50 SCS-60 SCS-80 SCS-100 SCS-120 SCS-150
Capacity 30T 40T 50T 60T 80T 100T 120T 150T
Graduation Value 10kg 10kg 20kg 20kg 20kg 20kg 20kg 20kg
3.0×7M
3.0×9M
3.0×10M
3.0×12M
3.0×14M
3.0×15M
3.0×16M
3.0×18M
3.0×20M
3.2×12M
3.2×14M
3.2×16M
3.2×18M
3.2×20M
3.4×14M
3.4×16M
3.4×18M
3.4×21M



Features and Advantages Road Weighbridge reinforced concrete weighbridge:

1. The concrete deck exists no indentation after long time use.

2. The decks are non-conductive, can protect from the lighting effectively, avoiding the load cells from damage.
3. Anti-rust, anti-oxidation, anti-wet, and full adapt to the full chemical rust environment.
4. Applied in rusted chemical companies, sea port and construction sites.
5. Measure linearity is good and especially suitable for high weight trucks requirement.
6. The concrete can be pre-fabricated in modulars or poured in end user’s installation sites
7. Explosive proof weighing system (full take advantage of concrete platforms physical features).
8. Special long deck sizes weighing system (can extend the deck length and no affect from the natural conditions).
9. All purposed universal truck scale weighing functions.
10. Convenient for container shipping.



              Road Weighbridge Truck Weight Scale Civil Work Foundation Types:

1. Pitless Foundation: Multi Deck Weighbridge Weighing Caravan On Weighbridge Truck Weight Machine
  1. Least Expensive
  2. Piers support each load bearing point
  3. Wash-out slabs sometimes included
2. Shallow Foundation: Multi Deck Weighbridge Weighing Caravan On Weighbridge Truck Weight Machine
  1. Additional beams of concrete run the length and width of the scale
  2. Stronger than pier style foundation
3. Pit Style Foundation: Multi Deck Weighbridge Weighing Caravan On Weighbridge Truck Weight Machine
  1. Depth of pit varies per project and is often a custom solution
  2. Must allow minimum depth for technician to access components beneath the weighbridge
  3. Can require additional care for cleaning as pit can collect debris



 Truck Weighbridge Manufacturing Process

. Bending Machine to Shape the Under Beams 2. CNC Cutting machine to satisfy the customized requests 3. Arching Machine
Multi Deck Weighbridge Weighing Caravan On Weighbridge Truck Weight Machine Multi Deck Weighbridge Weighing Caravan On Weighbridge Truck Weight Machine Multi Deck Weighbridge Weighing Caravan On Weighbridge Truck Weight Machine
4. Automatic Welding Machine 5.Ball Blasting Machine 6. Make the surface more neatly
Multi Deck Weighbridge Weighing Caravan On Weighbridge Truck Weight Machine Multi Deck Weighbridge Weighing Caravan On Weighbridge Truck Weight Machine Multi Deck Weighbridge Weighing Caravan On Weighbridge Truck Weight Machine
7. Baking paint Room 8. Installation and pre-calibration before shipping 9. Shipping Container by Sea or Railway
Multi Deck Weighbridge Weighing Caravan On Weighbridge Truck Weight Machine Multi Deck Weighbridge Weighing Caravan On Weighbridge Truck Weight Machine Multi Deck Weighbridge Weighing Caravan On Weighbridge Truck Weight Machine



      Our High Accuracy compression type loadcells :

  1. Nickel plated alloy steel IP68 dual shear beam load cell
  2. High accuracy OIML R60 C3
  3. Capacity:10-50t
  4. Current calibrated



Concrete Platform Truck Scale Weighbridge / 3×10M 150 Ton Heavy Duty Weighing Scale 12

          Digital Indicator D2008 with LCD backlight:



1.A built-in constand current float charging circuit can protect the battery better;

 2. Fast storage design to solve the problem of full record store;

3.Support custom fill typeset and printing function;

4. Ioslation and anti-static design prevent loadcell from device electric.

5. Support E custom made dynamic encryption protocol and K protocol, improve anti cheating device

Concrete Platform Truck Scale Weighbridge / 3×10M 150 Ton Heavy Duty Weighing Scale 13



Stardard Accessories of Electronic Parts Weight Indicator/ Controller                 Concrete Platform Truck Scale Weighbridge / 3×10M 150 Ton Heavy Duty Weighing Scale 14
Loadcells/ Load Sensors                        Concrete Platform Truck Scale Weighbridge / 3×10M 150 Ton Heavy Duty Weighing Scale 15
Junction Boxes with Cables Concrete Platform Truck Scale Weighbridge / 3×10M 150 Ton Heavy Duty Weighing Scale 16Concrete Platform Truck Scale Weighbridge / 3×10M 150 Ton Heavy Duty Weighing Scale 17
Screw bolts with tools                Concrete Platform Truck Scale Weighbridge / 3×10M 150 Ton Heavy Duty Weighing Scale 18

Optional accessories of electronic parts:

Management weighing system software                Concrete Platform Truck Scale Weighbridge / 3×10M 150 Ton Heavy Duty Weighing Scale 19

 Big scoreboard.

               Concrete Platform Truck Scale Weighbridge / 3×10M 150 Ton Heavy Duty Weighing Scale 20
Printer or Weight Bill                 Concrete Platform Truck Scale Weighbridge / 3×10M 150 Ton Heavy Duty Weighing Scale 21
Optional parts for the weighing platforms:

Two side rails for protection of the trucks driving.

                   Concrete Platform Truck Scale Weighbridge / 3×10M 150 Ton Heavy Duty Weighing Scale 22

Climb steel ramps for trucks easy get on and off the weighing platforms.

                 Concrete Platform Truck Scale Weighbridge / 3×10M 150 Ton Heavy Duty Weighing Scale 23



                                                   Truck Scale Customization



SMARTWEIGH has a team of engineers dedicated to custom vehicle weighing applications.

Common customizations and specialty projects have included:

                                     · Additional length/width

                                     · Grain dump grating (full-length or partial)

                                     · Special finishes (galvanization, coating, or color requests)

                                     · Added deck plate thickness

                                     · Wear plates (fully welded)

                                     · Stainless steel

                                     · Special side-rails

                                     · Special filling applications

                                     · Axle scales

                                     · Vehicle scale refurbishing
