Trailer Weigh Station Heavy Duty Weighbridge Digital Ultra Width 5 Meter

Thương hiệu: SMARTWEIGH
Tình trạng: Còn hàng
Liên hệ

Product Details:

Place of Origin: CHINA
Brand Name: SMARTWEIGH
Certification: ISO/CE/SGS
Model Number: HWTS 7576

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Scales body with plastic film package, electronic parts with carton box
Delivery Time: 3-8 weeks
Payment Terms: LC,TT, Weston Union, MoneyGram
Supply Ability: 100 sets per month

Detailed Product Description

Max Capacity: 200T Verification Scale Value: 20Kg
Weighing Platform Width: Ultra-width 5Meter Weighing Platform Length: 24Meter
Civil Work Type: Pit Type Foundation Weighing Mode: Digital
Name: Ultra-width Truck Scales Use: Weighing For Trucks
High Light:

mettler toledo truck scale, weighbridge load cell



Ultra-width Truck Scales For Dump Trucks Farm Weighbridge Trailer Scale Weigh Avery Tronix Truck Scale

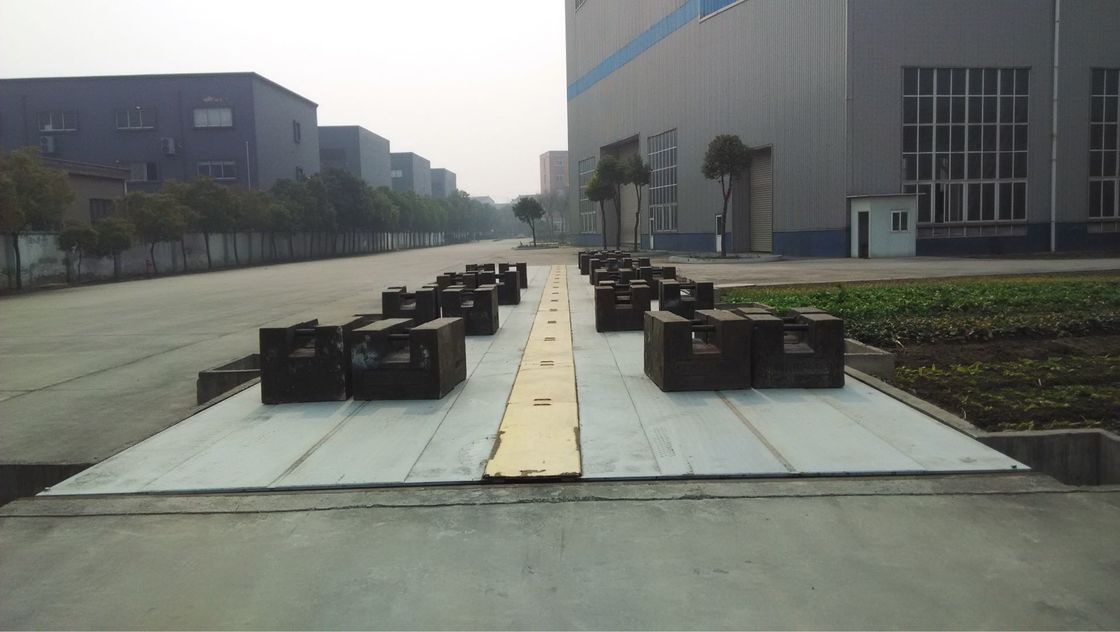

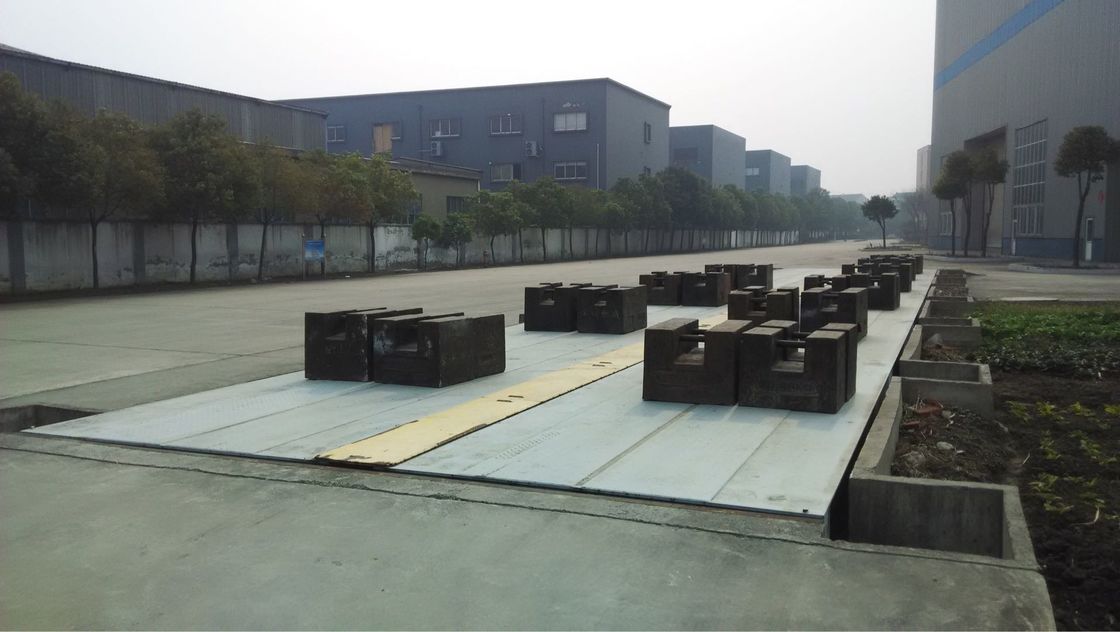

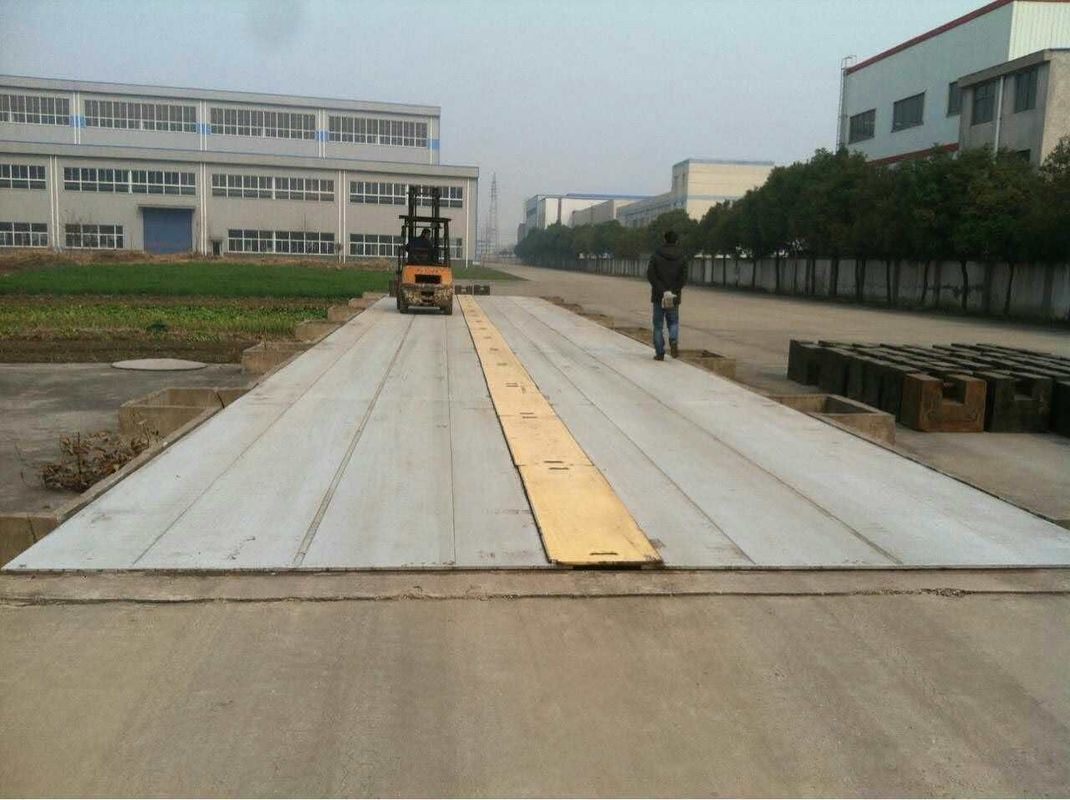

Model 7570 is a steel-deck scale for weighing vehicles used in mining, steel, aggregate, forestry, and other similar operations. This rugged scale is built to provide dependable performance for extreme duty applications. It is available as a 3 Meter to 6 Meter wide scale capable of handling the industry's largest construction vehicles and are designed for the large trucks that are typically used in under ground applications where the loads can range from 50 to 500t. The orthotropic design provides reliable weighing over a long service life, while our load cells transmit an extremely powerful signal for accurate, dependable weighing.



Specification of Ultra-width Truck Scales:



Model SCS-30 SCS-40 SCS-50 SCS-60 SCS-80 SCS-100 SCS-120 SCS-150
Capacity 30T 40T 50T 60T 80T 100T 120T 150T
Graduation Value 10kg 10kg 20kg 20kg 20kg 20kg 20kg 20kg
3.0×7M
3.0×9M
3.0×10M
3.0×12M
3.0×14M
3.0×15M
3.0×16M
3.0×18M
3.0×20M
3.2×12M
3.2×14M
3.2×16M
3.2×18M
3.2×20M
3.4×14M
3.4×16M
3.4×18M
3.4×21M



Features and Advantages of the Weighbridge Solutions:

  1. The modular design of these products allow for customization to suit your exact needs.
  2. Every new weighbridge design undergoes rigorous lifecycle testing.
  3. Full steel stronger structure designed for concentrated loads and frequent use.
  4. Proven design of the bridge type U-type welded ribs help direct the pressure of a heavy load away from areas.
  5. Divide into several panels, easy to move platforms and container transportation.
  6. Easy installation, calibration, and maintenance.
  7. Automatic professional welding along the seam of each rib to the deck ensure lasting strength.
  8. High performance load cells, good accuracy and reliability make clients maximum income.
  9. Explosion proof types suitable for working in hazardous areas available upon request
  10. Many storage functions: Vehicle number, Tare storage, Accumulation storage and many data report output.

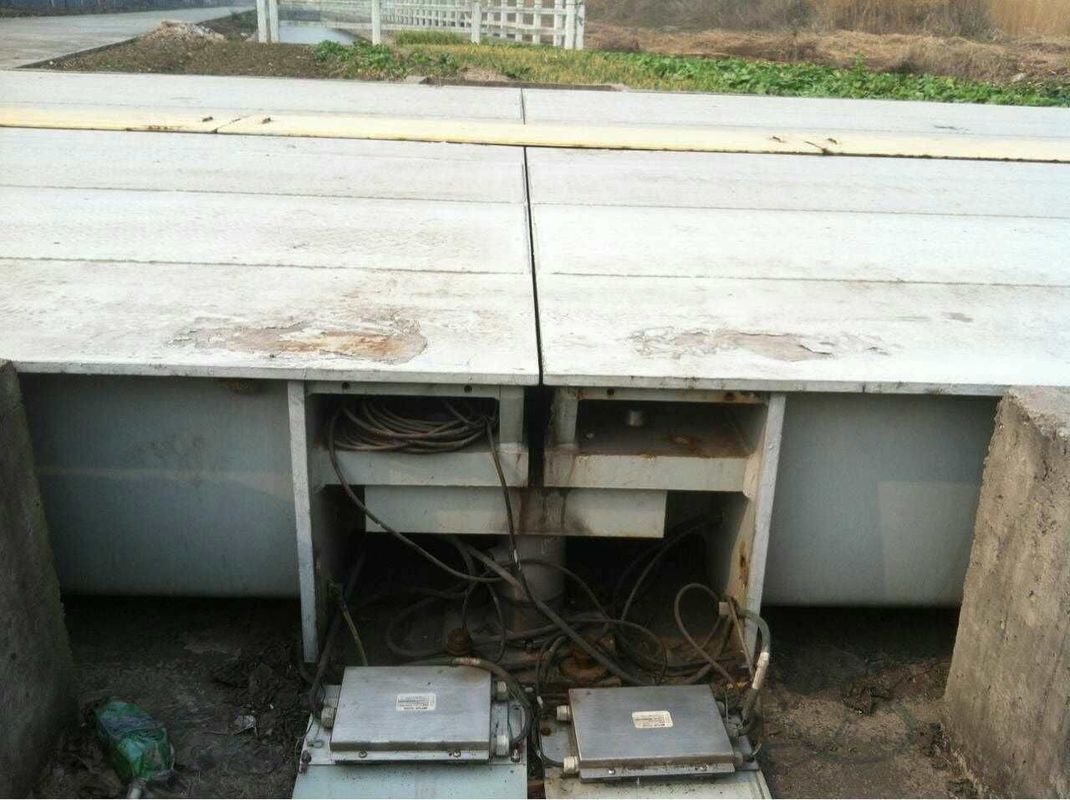

 Our High Accuracy ball type loadcells :

  1. Nickel plated alloy steel IP68 dual shear beam load cell
  2. High accuracy OIML R60 C3
  3. Capacity:10-50t
  4. Current calibrated

Trailer Weigh Station Heavy Duty Weighbridge Digital Ultra Width 5 Meter 0



Digital Indicator DS10 with LCD backlight:

  1. AC/DC power supply.
  2. User-defined printing content and format:
  3. User-defined printing format, and be able to connect with serial printing interface and thermal printer
  4. Reliable shield and anti-jamming:
  5. Adopts hardware for shielding and reduces external-jamming and damage of interface.                                                                                        Trailer Weigh Station Heavy Duty Weighbridge Digital Ultra Width 5 Meter 1

Standard accessories of electronic parts:

1. High Precision Load cells

2. Digital Weight Indicator

3. Stainless Junction Box with signal cables



Optional accessories of electronic parts:

1. Big scoreboard.

2. PC and Printer or Weight Bill

3. Management weighing system software

4. Unattended Systems for the vehicle sale (Camera, traffic lights, barrier gate, louder speaker etc) .



Optional parts for the weighing platforms:

1. Two side rails for protection of the trucks driving.

2. Climb steel ramps for trucks easy get on and off the weighing platforms.

3. Temporary Frame to make the weighbridge portable easily

4. Man hole plates customized.
