Optimize Your Production Processes
The Straight Weighing solution optimizes your production processes in Straight Weighing applications.
Durable and Rugged
Tough enough for industrial environments with aluminum die cast housing and robust foil keypad.
Dust Proof
Optimal for usage in dusty environment thanks to IP65 ingress protected housing.
Material No.: 64087988001

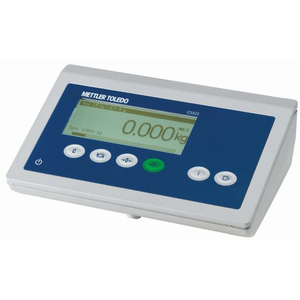

Specifications - ICS425
| Scale | Precision Analog IDNet |
| Communication | RS232 WLAN Ethernet TCP/IP USB device/host Digital I/O RS422/485 |
| Mounting Flexibility | Wall Column Desk |
| Voltage | 100 - 240 VAC Internal Battery |
| Display | Graphic LCD with backlight |
| Dimensions (LxHxW) | 6.5 in x 3.1 in x 9.8 in (164 mm x 78 mm x 284 mm) |
| Housing | Aluminum Die Casting |
| Interfaces | RS232 WLAN USB device/host Ethernet TCP/IP Digital I/O RS422/485 |
| Protection Rating | IP65 |
| Hazardous Approval | Non-Hazardous Area |
| Scale Channels | 1 |
| Power Supply | 100 - 240 VAC, Internal Battery |
| Display Size | 5 in |
| Housing material | Aluminum |
| Application Area | Bench, Portable, and Floor |
| Automation | Interactive Weighing |
| Material | Aluminum die casting |
| Platform Type | Terminals and Indicators |
| Scale Interface | Precision Analog IDNet |
| Mounting Type | Wall Column Desk |
| Interfaces (Optional) | USB Ethernet RS422 RS485 WLAN Discrete I/O |
| Weighing Platform | Precision Analog IDNet |
| Application | Straight Weighing |
| Hygienic Design | No |
| Custom programmable | No |
| Legal for Trade | NTEP OIML |
| Applications | Straight Weighing |
ICS4x5 & ICS685 Datasheet Terminal
Auxiliary display with large LCD backlit display, powered by the balance (RS232 interface)
Material No.: 12122381
Dot matrix printer, RS232 interface, print speed 2.3 lines per second, built-in real-time clock, zero/tare key
Material No.: 11124313
Dot matrix printer, RS232 interface, print speed 2.3 lines per second, date and time function, zero/tare key, statistics and totaling application
Material No.: 11124314
