SmartTrac Shows It All
Enhanced graphical display providing improved process visualization for material transfer or over/under weighing to increase productivity and quality.
Multi-channel Concurrent Weighing
Concurrent measurement channels in one terminal and fast A/D performance at 366 Hz promote hardware cost savings at increased throughput and accuracy.
Embedded Maintenance Technician
Embedded diagnostic tools help avoid costly unscheduled breakdowns and quality defects by predicting failures and maintaining calibration compliance.
Material No.: 64087983003

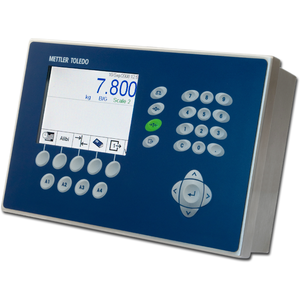

Specifications - Weighing Terminal IND780
| Scale | SICS POWERCELL PDX IDNet Analog |
| Communication | PROFIBUS DP ProfiNet USB Host Ethernet TCP/IP EtherNet/IP |
| Voltage | Universal power supply (85-264 VAC) |
| Dimensions (HxWxD) | 235 mm x 200 mm x 299 mm |
| Housing | Harsh Stainless Steel |
| Protection Rating | IP69k |
| Hazardous Approval | Zone 2/22 Division 2 |
| Scale Channels | 4 |
| Automation | Automation Controller |
| Mounting Type | Wall Column Desk Harsh Standalone |
| Display Size | 6 in |
| Housing material | Stainless Steel |
| Application Area | Tank, Silo, Hopper, and Bin Hazardous Area Vehicle and Rail Custom Programmable OEM and System Integrators Bench and Floor |
| Weighing Platform | Flow Meter Analog IDNet, SICS POWERCELL SICSpro |
| Application | Dosing Net Content Control Checkweighing Batching Vehicle Weighing Filling |
| Custom programmable | Yes |
| Legal for Trade | NTEP OIML |
Installation Manual - IND780 (11 MB)
