Performance and Compliance
Designed for use in Zone 1/21 & Div. 1 approved areas. Approvals from ATEX, FM, IECEx and NEPSI. IND560x meets the latest EMC requirements (10 V/m).
Speed
Fast A/D performance (366 Hz) supports a best-in-class target update rate of 50 Hz. Multi-stage filters optimize the performance.
Control
Excels in process control. Active and passive I/O options available for direct control of the device inside the hazardous area.
Material No.: 64087982001

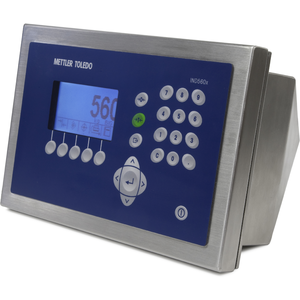

Specifications - Weighing Terminal IND560x
| Scale | Precision Analog IDNet |
| Communication | EtherNet IP DeviceNet PROFIBUS DP RS232/422/485 RS232 Ethernet TCP/IP Digital I/O Analog Output |
| Mounting Flexibility | Wall Column Desk |
| Voltage | 100 - 240 VAC |
| Dimensions (HxWxD) | 6.7 in x 11.4 in x 7.2 in (170 mm x 289 mm x 183 mm) |
| Housing | Harsh Stainless Steel |
| Interfaces | DeviceNet PROFIBUS DP RS232 EtherNet/IP Ethernet TCP/IP Digital I/O Analog Output RS422/485 |
| Protection Rating | IP66 IP69k IP68 |
| Hazardous Approval | Zone 1/21 Division 1 |
| Scale Channels | 1 |
| Automation | Automation Controller |
| A/D Update Rate | 366 Hz |
| Mounting Type | Wall Column Desk |
| Power Supply | 100 - 240 VAC, Internal Battery |
| Displayed Resolution | 100,000d (max) |
| Display Size | 5 in |
| Housing material | Stainless Steel |
| Application Area | Tank, Silo, Hopper, and Bin Vehicle and Rail Hazardous Area Bench, Portable, and Floor Custom Programmable OEM and System Integrators |
| Weighing Platform | Precision Analog IDNet |
| Application | Dosing Blending Checkweighing Vehicle Weighing Filling |
| Custom programmable | Yes |
| Applications | Dosing Blending Check weighing Filling |
| Legal for Trade | NTEP OIML |
Advanced Communication and Programming
Intrinsically safe interface modules & a wide range of supported PLC and communication protocols ensure secure integration with high level control systems. Specialized application software options satisfy the unique and specific needs of end users.
