Highly Visible Display

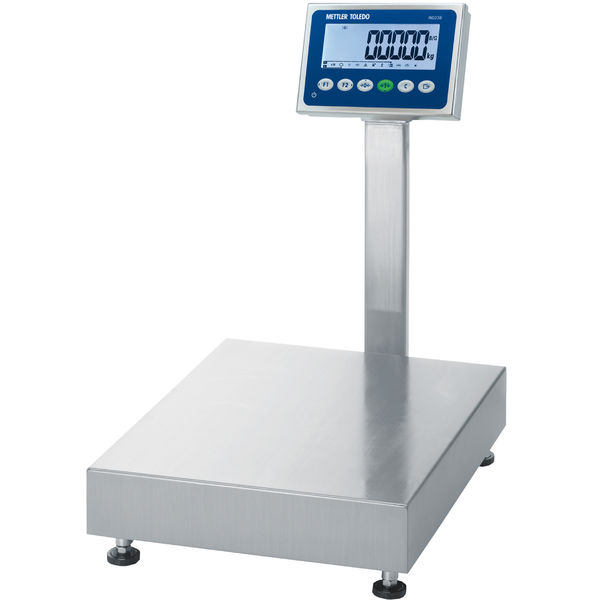

For excellent readability under any light condition, the BBA236 scale features a large, 60mm high LCD display with an adjustable white backlight.
Easy to Clean - IP65
The open, sturdy and straightforward platform design allows for efficient cleaning and helps to reduce possible bacterial contamination.
Immediate Status Indication
Over/under checkweighing is easy and accurate with immediate status indication. Target-weight setup is simple to improve process accuracy.
| Type | BBA236-B30 | BBA236-B60 | BBA236-B150 |
| Material No | 30598207006 | 30598207007 | 30598207008 |
Specifications - BBA236
| Maximum Capacity | 50 lb (30 kg) | 100 lb (60 kg) | 250 lb (150 kg) |
| Readability | 0.005 lb (2 g) | 0.01 lb (5 g) | 0.02 lb (10 g) |
| Readability (Certified) | 0.01 lb (5 g 10 g) |
0.02 lb (10 g 20 g) |
0.05 lb (20 g 50 g) |
| Material | Stainless Steel V2A (AISI 304) | ||
| Repeatability (sd) | 0.0018 lb (0.8 g) | 0.004 lb (1.8 g) | 0.005 lb (2.2 g) |
| Protection Rating | IP66/67 Terminal IP65 Platform |
||
| Scale Interface | Analog | ||
| Platform Size (LxHxW) | 15.7 in x 3.94 in x 19.7 in (400 mm x 100.1 mm x 500 mm) | ||
| Repeatability | 0.005 lb | 0.01 lb | 0.02 lb |
| Repeatability, typical | 0.8 g | 1.8 g | 2.2 g |
| Repeatability, (typical) | 0.0018 lb | 0.004 lb | 0.005 lb |
| Environment | Dusty & Light Wet (IP65) | ||
| Legal for Trade | NTEP OIML |
||
| Hazardous Area | Non-hazardous area | ||
| Hygienic Design | Yes | ||
| Platform Type | Bench Platforms | ||
Innovative and User Friendly
In addition to the 5 tactile and responsive standard keys (On/Off, Zero, Tare, Clear, Print) the BBA236 is the first of its class to feature two freely definable function keys. These allow for fast and easy switching between different available functions.
Excellent Overload Protection
Optimally placed and specifically adjusted overload stops grant the best possible protection against load cell damage. Easily adjustable feet allow for reliable and precise scale leveling.
Full Control at All Times
All functions (directly selected using the function keys) and current scale status are always in easy sight providing a good overview for ergonomic operation.
