Strain Gauge Technology
The ICS685 solution stands for total flexibility. Benefit from its wide range of applications, easy user management and powerful internal database.
Durable and Rugged
Tough enough for use in industrial environments with aluminum die cast housing, overload protection and robust foil keypad.
Easy to operate
User-definable function keys, large colored TFT display and customizable user prompting make everyday operations fast and more precise.
Material No.: 22023052

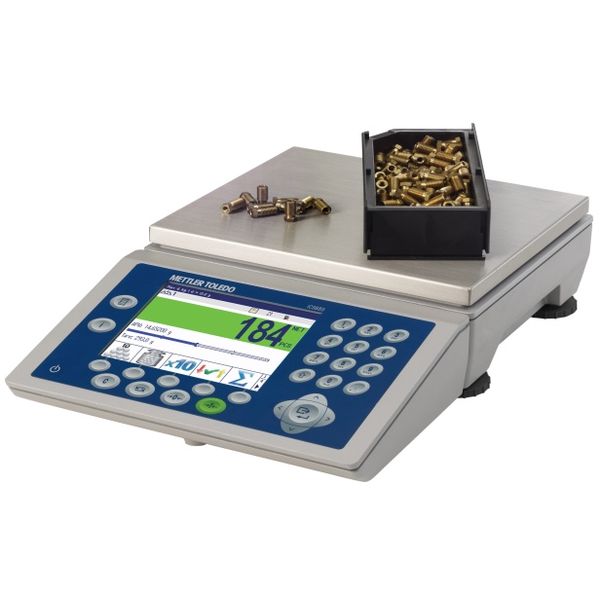

Specifications - Compact Scale ICS685s-3SM/f
| Maximum Capacity | 6 lb (3 kg) |
| Readability | 0.0005 lb (0.05 g) |
| Repeatability (sd) | 0.00007 lb (0.03 g) |
| Platform Size (LxHxW) | 7.9 in x 3.7 in x 9.5 in (200 mm x 95 mm x 240 mm) |
| Readability (Certified) | 0.001 lb (0.5 g) |
| Material | Aluminum die casting |
| Protection Rating | IP54 |
| Repeatability | 0.0001 lb |
| Hazardous Approval | No |
| Housing | Aluminum Die Casting |
| Interfaces | RS232 |
| Display | Color TFT screen |
| Repeatability, typical | 0.03 g |
| Repeatability, (typical) | 0.00007 lb |
| Application Software | Formulation Dynamic Weighing Counting Simple weighing Over Under Checkweighing |
| Data Interface | Serial USB Ethernet |
| Environment | Dry (<IP65) |
| Legal for Trade | NTEP OIML |
| Hazardous Area | Non-hazardous area |
| Applications | Simple Weighing Dynamic weighing Formulation Counting Over Under Checkweighing |
| Voltage | Battery Version AC Version |
| Scale Interface | SICSpro |
| Interfaces (Optional) | USB Ethernet RS422 RS485 Discrete I/O |
| Hygienic Design | No |
| Platform Type | Counting Scales |
