Simple & Intuitive
The IP66 and IP67-rated scale is easy to operate. The straightforward setup of different functions requires minimal operator training.
Easy to Clean
The open and sturdy stainless-steel platform design, built according to hygienic standards, allows fast, thorough and easy cleaning.
Execution

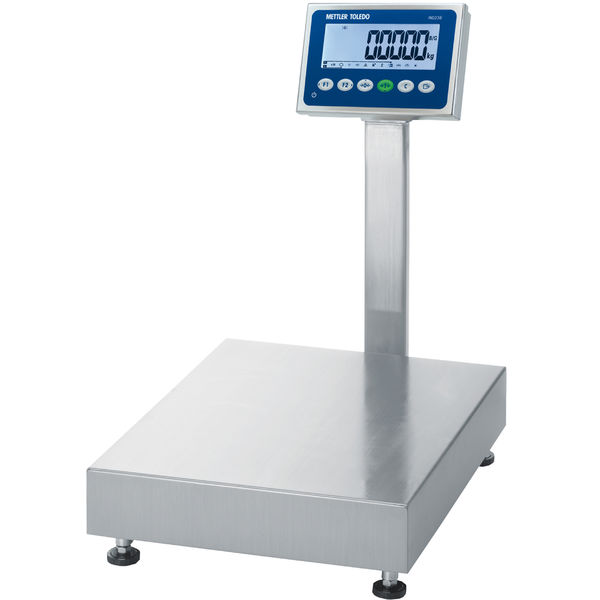

The scale features a hermetically sealed load cell, is AC-powered and comes with a stand.
| Type | BBA238-8CC60R/S | BBA238-8CC150R/S | BBA238-8CC300R/S | BBA238-8CC600R/S |
| Material No | 30080059 | 30080060 | 30080061 | 30080062 |
Specifications - Bench Scale BBA238
| BBA238-8CC60R/S | BBA238-8CC150R/S | BBA238-8CC300R/S | BBA238-8CC600R/S | |
| Maximum Capacity | 60 kg | 150 kg | 300 kg | 600 kg |
| Readability | 10 g | 20 g | 50 g | 100 g |
| Material | Stainless Steel | |||
| Protection Rating | IP67 terminal IP69k Platform |
|||
| Repeatability (sd) | 4.1 g | 6.6 g | 19.4 g | 40 g |
| Scale Interface | Analog | |||
| Platform Size (LxHxW) | 600 mm x 140 mm x 800 mm | |||
| Display | 7 segment LCD with backlight | |||
| Interfaces | RS232 | |||
| Housing | Stainless Steel | |||
| Repeatability, typical | 4.1 g | 6.6 g | 19.4 g | 40 g |
| Weighing Pan Dimensions (LxHxW) | 600 mm x 90 mm x 800 mm | |||
| Hazardous Approval | No | |||
| Application Software | Dynamic Weighing Counting Simple weighing Over Under Checkweighing |
|||
| Data Interface | Serial USB Discrete I/O |
|||
| Environment | Wet & Harsh Wet (≥IP66) | |||
| Hazardous Area | Non-hazardous area | |||
| Applications | Simple Weighing Dynamic weighing Counting Over Under Checkweighing |
|||
| Voltage | Battery Version AC Version |
|||
| Interfaces (Optional) | USB RS422 RS485 Discrete I/O |
|||
| Hygienic Design | No | |||
| Cable | 2.5 m | |||
| Platform Type | Bench Scale | |||
Cart S.S 600x800
Material No.: 72225940
