Multi-Functional
Fast, economical and multi-functional for any straight weighing, simple counting, or simple checkweighing application in a dry environment.
Visible and Fast
The terminal, with its large LCD display, is easy to operate and features a built-in RS232 interface to communicate with a printer or PC.
Lasting Battery Power
The scale is powered by 100-240 VAC or 6 AA dry batteries for >80 hours of stand-alone operation.
| Type | BBA231-3CC60A/S | BBA231-3CC150A/S | BBA231-3CC300A/S |
| Material No | 30079981 | 30079982 | 30079983 |

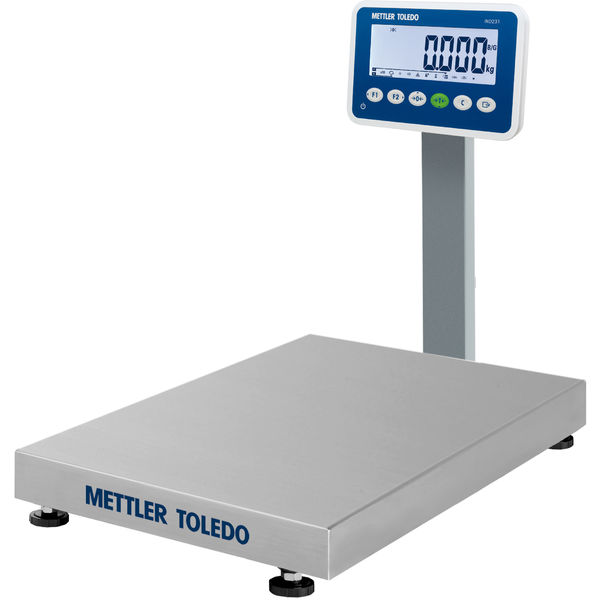

Specifications - Bench Scale BBA231
| Maximum Capacity | 100 lb (60 kg) | 250 lb (150 kg) | 500 lb (300 kg) |
| Readability | 0.01 lb (5 g) | 0.02 lb (10 g) | 0.05 lb (20 g) |
| Readability (Certified) | 0.02 lb (20 g) | 0.05 lb (50 g) | 0.1 lb (100 g) |
| Material | Platform: Carbon Steel Terminal: Plastic |
||
| Protection Rating | IP54 Terminal IP65 Platform |
||
| Repeatability (sd) | 0.0095 lb (4.3 g) | 0.015 lb (6.8 g) | 0.025 lb (11 g) |
| Scale Interface | Analog | ||
| Platform Size (LxHxW) | 23.6 in x 5.12 in x 31.5 in (600 mm x 130 mm x 800 mm) | ||
| Display | 7 segment LCD with backlight | ||
| Interfaces | RS232 | ||
| Housing | Platform: Carbon Steel Terminal: Plastic |
||
| Repeatability | 0.01 lb | 0.02 lb | 0.05 lb |
| Repeatability, typical | 4.3 g | 6.8 g | 11 g |
| Repeatability, (typical) | 0.0095 lb | 0.04 lb | 0.025 lb |
| Weighing Pan Dimensions (LxHxW) | 23.6 in x 3.54 in x 31.5 in (600 mm x 90 mm x 800 mm) | ||
| Hazardous Approval | No | ||
| Data Interface | Serial USB Discrete I/O |
||
| Environment | Dry (<IP65) | ||
| Legal for Trade | NTEP OIML |
||
| Hazardous Area | Non-hazardous area | ||
| Voltage | Battery Version AC Version |
||
| Interfaces (Optional) | USB RS422 RS485 Discrete I/O |
||
| Hygienic Design | No | ||
| Cable | 6.5 ft (2 m) | ||
| Platform Type | Bench Scale | ||
