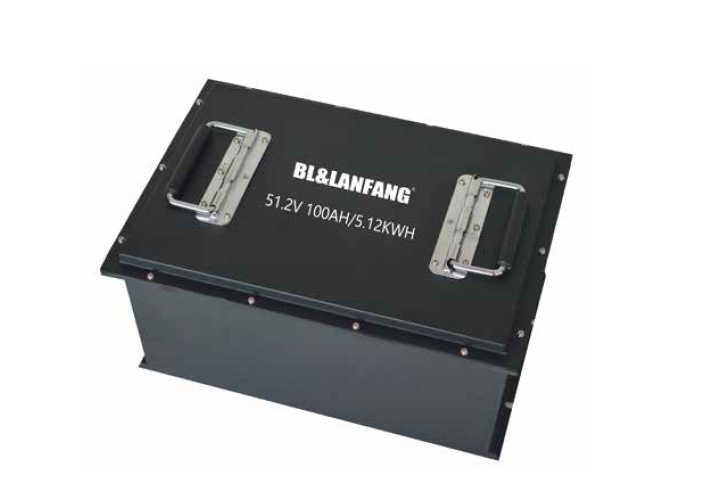

Golf Cart Battery
Basic Specifications
| Nominal voltage | 51.2V |
| Nominal capacity | 100Ah/5.12KWh |
| Composition | 16S1P |
| Battery cycle life | ≥6000（25°C±2°C，0.5C charge-discharge，DOD≥80%） |
| Charging protection voltage | 56.8V |
| Discharge protection voltage | 46.4V |
| Recommended charging current | ≤10~20A |
| Maximum charging current | ≤200A |
| Recommended discharge current | ≤100A |
| Maximum discharge current | ≤200A |
| Charging temperature range | 5~55℃ |
| Discharge temperature range | -20~60ºC |
| Product size | 480*334*235mm |
| Product weight | 46.5kg |
| Options | screen、charger、charge socket |
| *Can be customized according to the needs, the final interpretation of this product is owned by the company, subject to change without prior notice |
|
Product Advantages
• Built in power type lithium iron phosphate power battery. Large capacity, long cycle life, high
safety, green and environmentally friendly；IP65
• Customizable design with multiple communication options
• Built in fire protection module, 15S fast flame retardant
