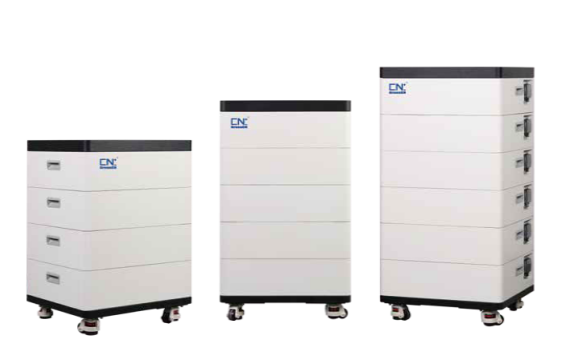

European standard-Stackable Battery Packs
Basic Specifications
| Power supply model | LF-PS-51.2V100AH | 4 Modul | 5 Modul | 6 Modul |
| Nominal voltage | 51.2V | |||
| Nominal capacity | 100Ah/5.12KWh | 400Ah/20.48KWh | 500Ah/25.60KWh | 600Ah/30.72KWh |
| Charging protection voltage | 56.8V | |||
| Discharge protection voltage | 46.4V | |||
| Recommended charging current | ≤50A | |||
| Maximum charging current | ≤95A | |||
| Recommended discharge current | ≤50A | |||
| Maximum discharge current | ≤105A | |||
| Battery cycle life | ≥6000（25°C±2°C，0.5C charge-discharge，DOD≥80%） | |||
| Charging temperature | 5~55℃ | |||
| Operating temperature | -20~60℃ | |||
| Battery weight | ≈53.5kg | ≈243kg | ≈296.5kg | ≈350kg |
| Battery size | 580*490*200mm (Adjustable） |
580*490*855mm (Adjustable） |
580*490*1025mm (Adjustable） |
580*490*1195mm (Adjustable） |
| Certification | CE、CB、TUV Mark、MSDS、UN38.8 | |||
| Communication mode | RS485/RS232/CAN | |||
| Adaptable inverter (can customized) |
485：PYLONTECH、TOPBAND、GROWATT、LUXPOWER、CPSYPOWER、SRNE、Felicity solar、ANC、 Shark TopSu CAN：PYLONTECH、Deye、TOPBAND、GROWATT、LUXPOWER、GOODWE、SOFAR、INVT、 MEGAREVO、GINLONG、AFORE、SOROUPS、CFAT、BEITT、MUST、SMA、SACOLAR、TBB |
|||
| *Can be customized according to the needs, the final interpretation of this product is owned by the company, subject to change without prior notice |
||||
Product Advantages
• Intelligent Battery Management System (BMS), Intelligent Current Blocker, Quadruple Safety
Protection: Voltage Protection, Temperature Protection, and Current Dual Protection；IP54
• Built in fire protection module, 15S fast flame retardant
• Modular stacked design, capable of stacking 16 modules
Applications
• Electricity at home, shopping malls, supermarkets, hotels and other
public places
