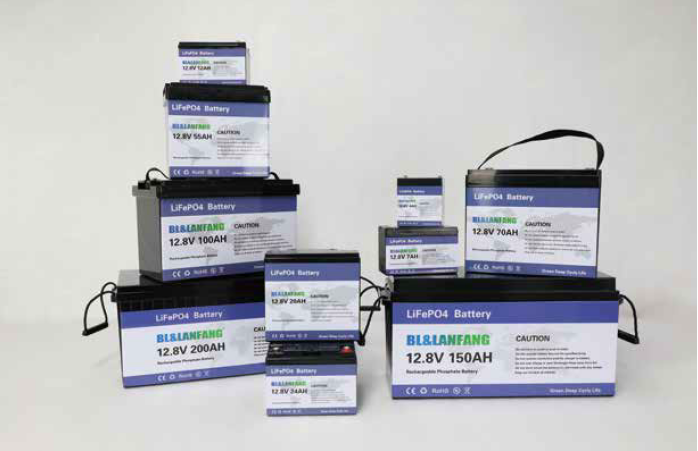

12V/24V LiFePO4 Battery Packs
Basic Specifications
| Power supply model | LF-HPS-12V7Ah | LF-HPS-12V100Ah | LF-HPS-12V200Ah |
| Nominal voltage | 12.8V | 12.8V | 12.8V |
| Nominal capacity | 7AH/89.6Wh | 100AH/1280Wh | 200AH/2560Wh |
| Charge Current | ≤0.05C | ≤0.05C | ≤0.05C |
| Maximum Charge Current | 5A | 100A | 200A |
| Recommended Charge Voltage | 14.6V | 14.6V | 14.6V |
| BMS Charge Voltage Cut-Off | 14.6V (3.65±0.025vpc) |
14.6V (3.65±0.025vpc) |
14.6V (3.65±0.025vpc) |
| Reconnect Voltage | 14.2V (3.55 ±0.10vpc) |
14.2V (3.55 ±0.10vpc) |
14.2V (3.55 ±0.10vpc) |
| Maximum Continuous Discharge Current |
5A | 100A | 200A |
| BMS Discharge Current Cut-Off | 5A | 100A | 200A |
| Discharge Temperature | -20 to 60ºC (-4 to 140 ºF) |
-20 to 60ºC (-4 to 140 ºF) |
-20 to 60ºC (-4 to 140 ºF) |
| Operating temperature | -20~60℃ | ||
| Product weight | ≈1.58Kg | ≈10.33Kg | ≈19.05Kg |
| Product size | 151*65*95mm | 330*173*221mm | 522*238*222mm |
| *Can be customized according to the needs, the final interpretation of this product is owned by the company, subject to change without prior notice |
|||
Product Advantages
• Built-in LiFePO4 Battery cells. Large capacity, long cycle life, high safety, environmental protec-
tion；IP65
• Intelligent communication
• Fashionable appearance
Applications
Electricity at home, shopping malls, supermarkets, hotels and other
public places
