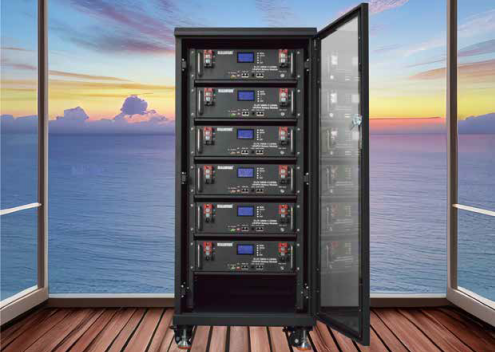

Low Voltage Rack-mounted Battery Packs
Basic Specifications
| Power supply model | LF-GS-51.2V600AH | ||
| Single battery pack Maximum discharge current |
105A | Recommended discharge current | ≤50A |
| Nominal voltage | 51.2V | Battery cycle life | ≥6000（25°C±2°C，0.5C charge- discharge，DOD≥80%） |
| Nominal capacity | 600Ah/30.72KWh | Communication mode | RS485/RS232/CAN |
| Charging protection voltage | 56.8V | Charging temperature | 5~55 C |
| Discharge protection voltage | 46.4V | Operating temperature | -20~60 C |
| Recommended charging current | ≤50A | Product weight | ≈355Kg |
| Maximum charging current | ≤95A | Product size | 605*605*1370mm(Adjustable） |
| Certification | CE、MSDS、UN38.3 | ||
| Communication mode | RS485/RS232/CAN | ||
| Adaptable inverter (can customized) |
485：PYLONTECH、TOPBAND、GROWATT、LUXPOWER、CPSYPOWER、SRNE、Felicity solar、ANC、Shark TopSu CAN：PYLONTECH、Deye、TOPBAND、GROWATT、LUXPOWER、GOODWE、SOFAR、INVT、MEGAREVO、 GINLONG、AFORE、SOROUPS、CFAT、BEITT、MUST、SMA、SACOLAR、TBB |
||
| *Can be customized according to the needs, the final interpretation of this product is owned by the company, subject to change without prior notice |
|||
Product Advantages
• Built-in LiFePO4 Battery cells. Large capacity, long cycle life, high safety, environmental
protection；IP54
• Intelligent communication；Built in fire protection module, 15S fast flame retardant

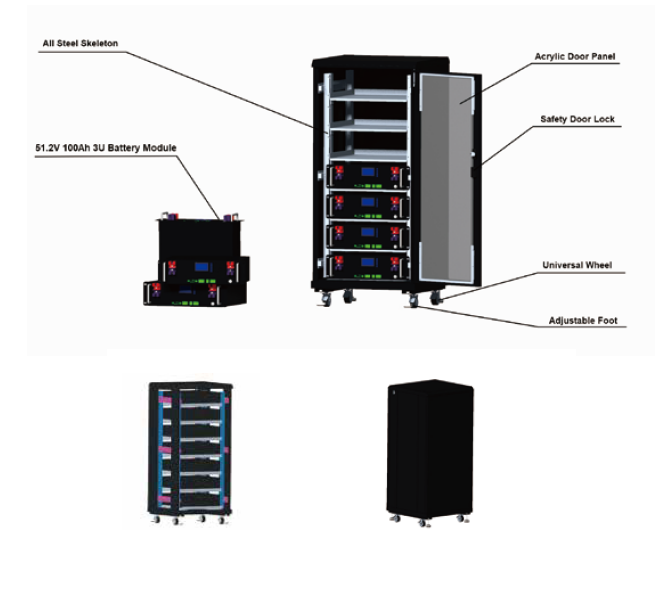

• Support parallel capacity expansion, frame design structure, to meet the demand of large
capacity power
Applications
Electricity at home, shopping malls, supermarkets, hotels and other public places
