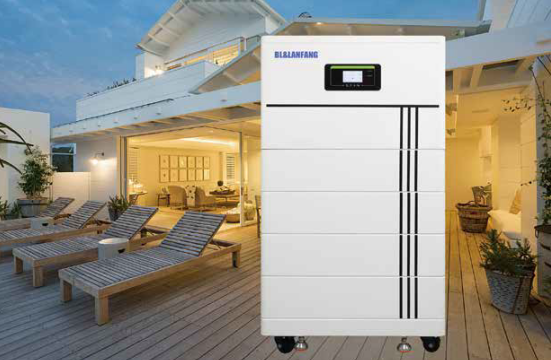

High Voltage Battery System
Basic Specifications
| Power supply model | LF-SS-10KW | AC Standard discharge current | 16A |
| Rated power | 10KW | AC Maximum discharge current | 30A |
| Peak power | 11KW | Battery cycle life | ≥6000（25°C±2°C，0.5C charge- discharge，DOD≥80%） |
| Nominal voltage | 217.6V | Communication mode | RS485/CAN |
| Nominal capacity | 40KWh | Charging temperature | 5~55℃ |
| Recommended Charge Voltage | 248.2V | Operating temperature | -20~60℃ |
| Discharge cut-off voltage | 183.6V | Product weight | ≈600Kg |
| AC Standard charging current | ≤29A | Product size | 740*710*1330mm(Adjustable） |
| *Can be customized according to the needs, the final interpretation of this product is owned by the company, subject to change without prior notice |
|||
Product Advantages

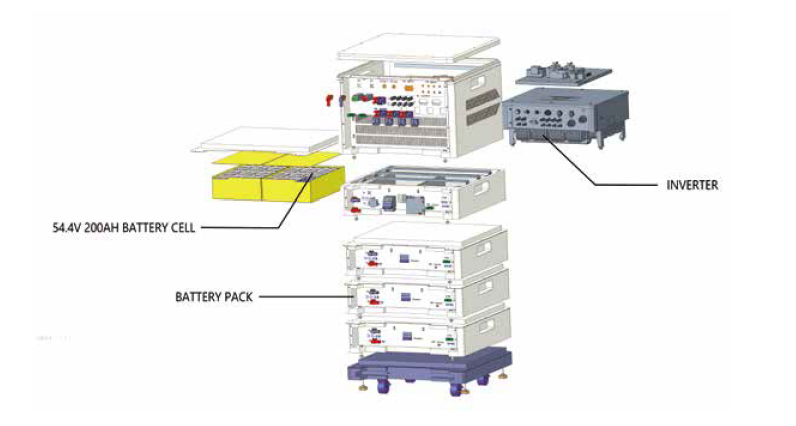

• Built-in LiFePO4 Battery cells. High energy and power, high energy density, wide operating
temperature range, long service life；IP54
• Adopt advanced high voltage inverter technology, greatly reduce energy consumption, improve
power efficiency, safe and reliable, designed for battery series high voltage and low current
mode, can better protect the battery, prolong the battery life, safety is also greatly improved
• Two-channel MPPT solar input setting, integrated PV PV and energy storage, more flexible
configuration
• Supports three-phase independent output
• Provides the UPS function to ensure stable operation of critical loads；Built in fire protection
module, 15S fast flame retardant
• Flexible monitoring mode, support RS485,Wifi, Ethernet, 4G(optional)
