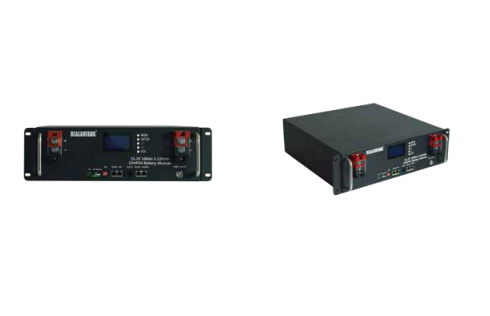

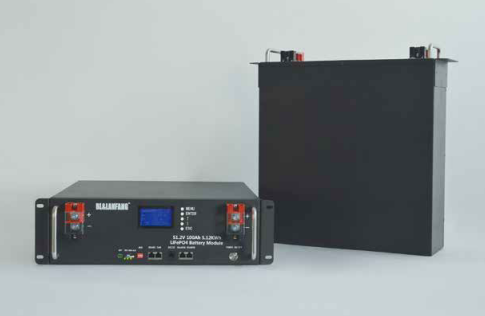

Rack Battery Packs
Basic Specifications
| Power supply model | LF-HPS-48V100AH | LF-HPS-48V200AH | LF-HPS-51.2V100AH | LF-HPS-51.2V200AH |
| Nominal voltage | 48V | 51.2V | ||
| Nominal capacity | 100Ah/4.8KWh | 200Ah/9.6KWh | 100Ah/5.12KWh | 200Ah/10.24KWh |
| Charging protection voltage | 53.25V | 56.8V | ||
| Discharge protection voltage | 43.5V | 46.4V | ||
| Recommended charging current | ≤50A | ≤100A | ≤50A | ≤100A |
| Maximum charging current | ≤100A | ≤200A | ≤100A | ≤200A |
| Recommended discharge current | ≤50A | ≤100A | ≤50A | ≤100A |
| Maximum discharge current | ≤105A | ≤200A | ≤105A | ≤200A |
| Battery cycle life | ≥6000（25°C±2°C，0.5C charge-discharge，DOD≥80%） | |||
| Charging temperature | 5~55℃ | |||
| Operating temperature | -20~60℃ | |||
| Battery weight | ≈41.5Kg | ≈83Kg | ≈43.5Kg | ≈87Kg |
| Battery size | 473*482*133mm (Adjustable） |
759*553*146mm (Adjustable） |
473*482*133mm (Adjustable） |
259*553*146mm (Adjustable） |
| Certification | CE、MSDS、UN38.3 | |||
| Communication mode | RS485/RS232/CAN | |||
| Adaptable inverter (can customized) |
485：PYLONTECH、TOPBAND、GROWATT、LUXPOWER、CPSYPOWER、SRNE、Felicity solar、ANC、 Shark TopSu CAN：PYLONTECH、Deye、TOPBAND、GROWATT、LUXPOWER、GOODWE、SOFAR、INVT、 MEGAREVO、GINLONG、AFORE、SOROUPS、CFAT、BEITT、MUST、SMA、SACOLAR、TBB |
|||
| *Can be customized according to the needs, the final interpretation of this product is owned by the company, subject to change without prior notice |
||||
Product Advantages
• Built-in LiFePO4 Battery cells. Large capacity, long cycle life, high safety, environmental
protection；IP54
• Intelligent communication；Built in fire protection module, 15S fast flame retardant
• Built-in BMS control board；Supports well connection, up to 16 units can be connected in
parallel
Applications
Home electricity, field work, tower base station
