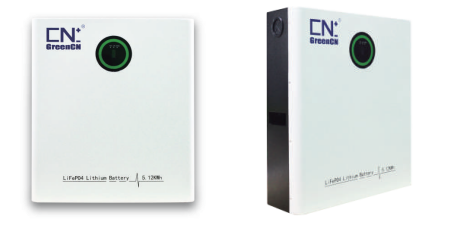

Wall-mounted energy storage power supply-C
Basic Specifications
| Power supply model | LF-WPS-51.2V100AH-C |
| Nominal voltage | 51.2V |
| Nominal capacity | 100AH/5.12KWH |
| Charging protection voltage | 56.8V |
| Discharge protection voltage | 46.4V |
| Recommended charging current | ≤50A |
| Maximum charging current | 100A |
| Recommended discharge current | ≤50A |
| Maximum discharge current | 100A |
| Battery cycle life | ≥6000（25°C±2°C，0.5C charge-discharge，DOD≥80%） |
| Charging temperature | 5~55℃ |
| Operating temperature | -20~60℃ |
| Battery weight | ≈49.7Kg |
| Battery size | 567*500*155mm (Adjustable） |
| Certification | CE、MSDS、UN38.8 |
| Communication mode | RS485/RS232/CAN |
| Adaptable inverter (can customized) |
485：PYLONTECH、TOPBAND、GROWATT、LUXPOWER、CPSYPOWER、SRNE、Felicity solar、ANC、 Shark TopSu CAN：PYLONTECH、Deye、TOPBAND、GROWATT、LUXPOWER、GOODWE、SOFAR、INVT、 MEGAREVO、GINLONG、AFORE、SOROUPS、CFAT、BEITT、MUST、SMA、SACOLAR、TBB |
| *Can be customized according to the needs, the final interpretation of this product is owned by the company, subject to change without prior notice |
|
Product Advantages
• Intelligent Battery Management System (BMS), Intelligent Current Blocker, Quadruple Safety Protection: Voltage Protection,
Temperature Protection, and Current Dual Protection；IP54
• Built in fire protection module, 15S fast flame retardant
• Convenient installation；Supports well connection, up to 16 units can be connected in parallel
Applications
Electricity at home, shopping malls, supermarkets, hotels and other public places
