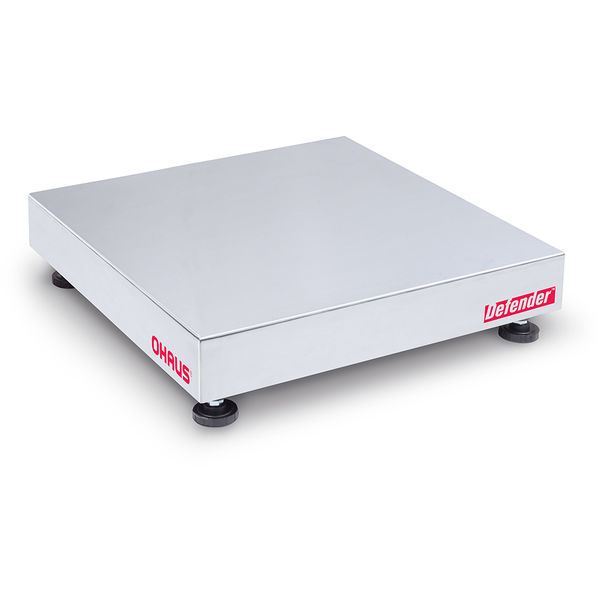

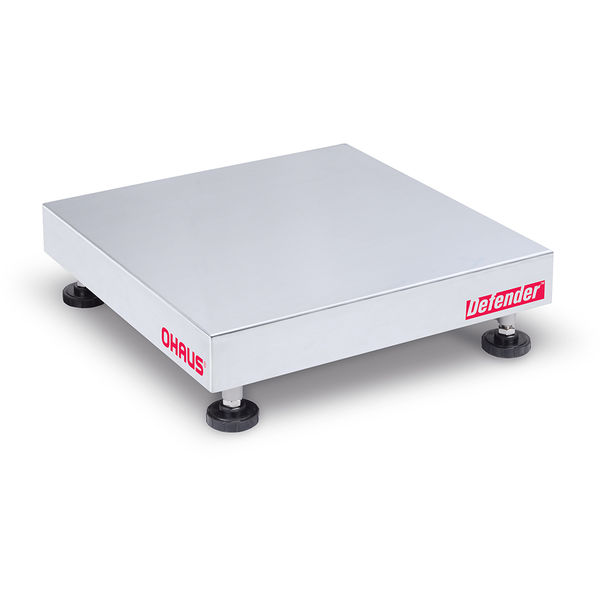

DEFENDER™ 5000 STAINLESS STEEL BASE
Durable Bases for the Most Demanding of Industrial Applications
| D150WQDX | D150WQDV | D150WTDV | D300WQDV | D300WTDV | D600WTDV | |
| Maximum Capacity | 60 kg/150 kg | 60 kg/150 kg | 60 kg/150 kg | 150 kg/300 kg | 150 kg/300 kg | 300 kg/600 kg |
| Readability | 5 g;10 g | 5 g;10 g | 5 g;10 g | 10 g;20 g | 10 g;20 g | 20 g;50 g |
| Platform Size | 500 mm x 500 mm | 610 mm x 610 mm | 800 mm x 600 mm | 610 mm x 610 mm | 800 mm x 600 mm | 800 mm x 600 mm |
| Item Number: | 30448418 | 30448423 | 30448428 | 30448424 | 30448429 | 30448430 |
OVERVIEW
| The OHAUS next generation Defender 5000 W Series base offers durability for the most demanding of industrial applications. The W series features moisture-protected single-point load cells, stainless steel construction, non-slip rubber adjustable feet, removable stainless steel weighing pans and integrated leveling bubbles. Maximum non-approved resolution of 1:15,000d meets the needs of industrial weighing applications that require extreme accuracy. |
Applications N/A |
|
Display N/A |
|
|
Operation N/A
|
|
|
Communication N/A |
|
|
Construction 304-grade stainless steel platform, stainless steel frame, IP67 load cell, non-slip adjustable rubber feet, level indicator |
|
|
Design Features 150% overload capacity protection |
SPECIFICATIONS
| D150WQDX | D150WQDV | D150WTDV | D300WQDV | D300WTDV | D600WTDV | |
| Maximum Capacity | 60 kg/150 kg | 60 kg/150 kg | 60 kg/150 kg | 150 kg/300 kg | 150 kg/300 kg | 300 kg/600 kg |
| Readability | 5 g;10 g | 5 g;10 g | 5 g;10 g | 10 g;20 g | 10 g;20 g | 20 g;50 g |
| Platform Size | 500 mm x 500 mm | 610 mm x 610 mm | 800 mm x 600 mm | 610 mm x 610 mm | 800 mm x 600 mm | |
| Legal for Trade | EC Type Approvable; OIML | |||||
| Protection Rating | IP67 | |||||
| Dimensions | 523 mm x 120 mm x 500 mm (LxHxW) | 633 mm x 130 mm x 610 mm (LxHxW) | 822 mm x 132 mm x 600 mm (LxHxW) | 633 mm x 130 mm x 610 mm (LxHxW) | 822 mm x 132 mm x 600 mm (LxHxW) | |
| Net Weight | 17 kg | 31 kg | 39 kg | 31 kg | 39 kg | |
| Platform Construction | Stainless Steel | |||||
| Working | -10°C – 40°C, 80%RH, non-condensing | |||||
ACCESSORIES
|
Item Number 30424409 Description Cable Extension 9m D52 |
|||
|
Item Number 30429931 Description Cable Kit Extension for base |
|||
|
Item Number 30424410 Description Column Kit 35 cm CS D52xx |
|||
|
Item Number 30424413 Description Column Kit 35 cm SST D52xx |
|||
|
Item Number 30424411 Description Column Kit 68 cm CS D52xx |
|||
|
Item Number 30424414 Description Column Kit 68 cm SST D52xx |
|||
|
Item Number 30424412 Description Column Kit 98 cm CS D52xx |
|||
|
Item Number 30424415 Description Column Kit 98 cm SST D52xx |
|||
|
Item Number 30424025 Description Holder Kit Printer SST |
|||
|
Item Number 30424024 Description Mounting Set Front SST D52 |
|||
|
Item Number 30372146 Description Wheel Kit, Defender Series |
|||
