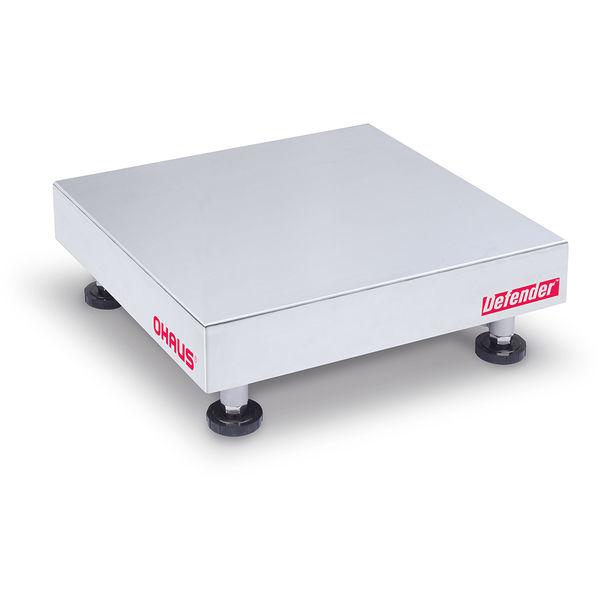

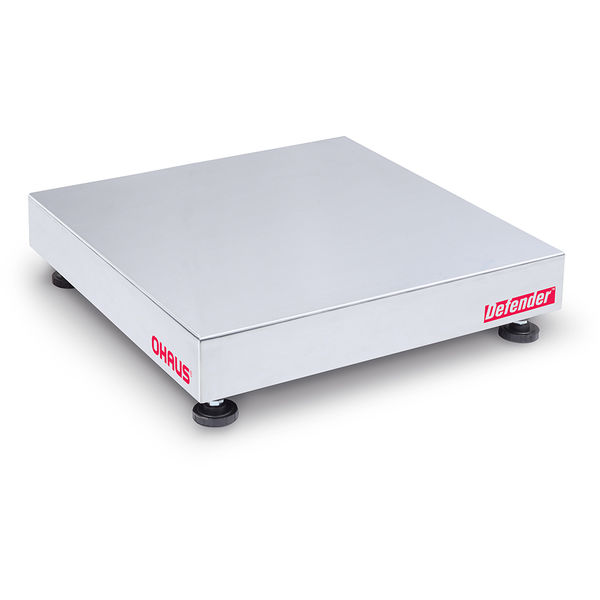

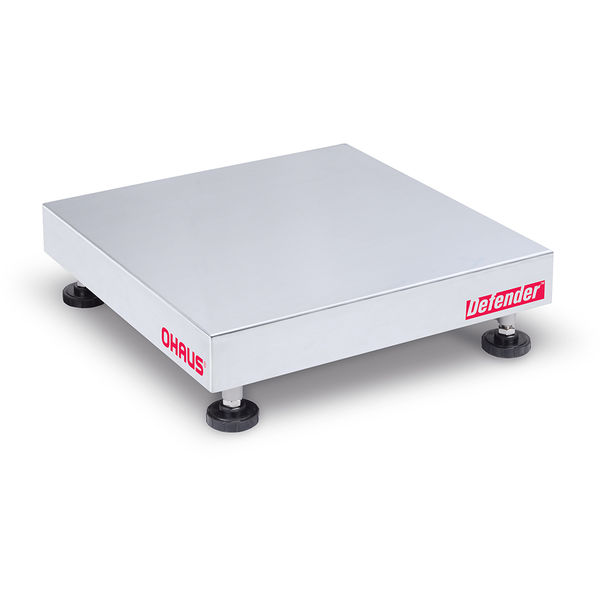

DEFENDER™ 5000 STAINLESS STEEL BASE
Durable Bases for the Most Demanding of Industrial Applications
| D6WQDR | D15WQDR | D15WQDL | D30WQDL | D60WQDL | D60WQDX | D60WQDV | |
| Maximum Capacity | 3 kg/6 kg | 6 kg/15 kg | 6 kg/15 kg | 15 kg/30 kg | 30 kg/60 kg | 30 kg/60 kg | 30 kg/60 kg |
| Readability | 0.2 g;0.5 g | 0.5 g;1 g | 0.5 g;1 g | 1 g;2 g | 2 g;5 g | 2 g;5 g | 2 g;5 g |
| Platform Size | 305 mm x 305 mm | 305 mm x 305 mm | 400 mm x 400 mm | 400 mm x 400 mm | 400 mm x 400 mm | 500 mm x 500 mm | 610 mm x 610 mm |
| Item Number: | 30448407 | 30448408 | 30448412 | 30448413 | 30448414 | 30448417 | 30448422 |
OVERVIEW
| The OHAUS next generation Defender 5000 W Series base offers durability for the most demanding of industrial applications. The W series features moisture-protected single-point load cells, stainless steel construction, non-slip rubber adjustable feet, removable stainless steel weighing pans and integrated leveling bubbles. Maximum non-approved resolution of 1:15,000d meets the needs of industrial weighing applications that require extreme accuracy. |
Applications N/A |
|
Display N/A |
|
|
Operation N/A
|
|
|
Communication N/A |
|
|
Construction 304-grade stainless steel platform, stainless steel frame, IP67 load cell, non-slip adjustable rubber feet, level indicator |
|
|
Design Features 150% overload capacity protection |
SPECIFICATIONS
| D6WQDR | D15WQDR | D15WQDL | D30WQDL | D60WQDL | D60WQDX | D60WQDV | |
| Maximum Capacity | 3 kg/6 kg | 6 kg/15 kg | 6 kg/15 kg | 15 kg/30 kg | 30 kg/60 kg | 30 kg/60 kg | 30 kg/60 kg |
| Readability | 0.2 g; 0.5 g | 0.5 g; 1 g | 0.5 g; 1 g | 1 g; 2 g | 2 g; 5 g | 2 g; 5 g | 2 g;5 g |
| Platform Size | 305 mm x 305 mm | 400 mm x 400 mm | 500 mm x 500 mm | 610 mm x 610 mm | |||
| Legal for Trade | EC Type Approvable; OIML | ||||||
| Protection Rating | IP67 | ||||||
| Dimensions | 338 mm x 99 mm x 305 mm (LxHxW) | 423 mm x 120 mm x 400 mm (LxHxW) | 523 mm x 120 mm x 500 mm (LxHxW) | 633 mm x 130 mm x 610 mm (LxHxW) | |||
| Net Weight | 6 kg | 8.6 kg | 17 kg | 31 kg | |||
| Platform Construction | Stainless Steel | ||||||
| Working | -10°C – 40°C, 80%RH, non-condensing | ||||||
ACCESSORIES
|
Item Number 30424409 Description Cable Extension 9m D52 |
|||
|
Item Number 30429931 Description Cable Kit Extension for base |
|||
|
Item Number 30424410 Description Column Kit 35 cm CS D52xx |
|||
|
Item Number 30424413 Description Column Kit 35 cm SST D52xx |
|||
|
Item Number 30424411 Description Column Kit 68 cm CS D52xx |
|||
|
Item Number 30424414 Description Column Kit 68 cm SST D52xx |
|||
|
Item Number 30424412 Description Column Kit 98 cm CS D52xx |
|||
|
Item Number 30424415 Description Column Kit 98 cm SST D52xx |
|||
|
Item Number 30424025 Description Holder Kit Printer SST |
|||
|

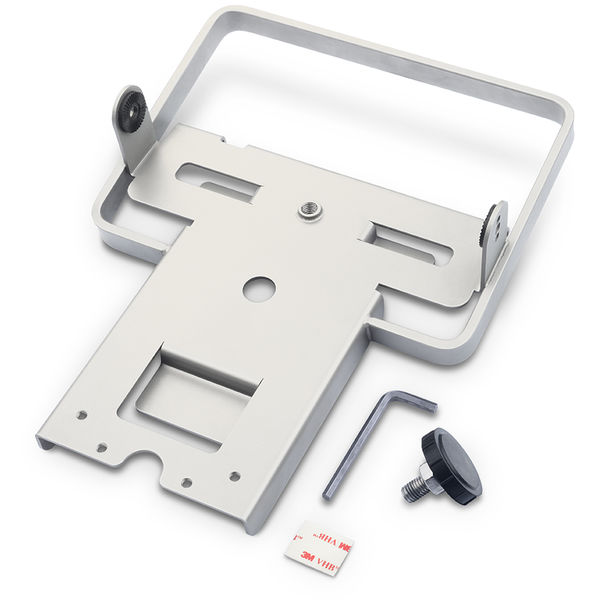

Item Number 30424024 Description Mounting Set Front SST D52 |
|||
|
Item Number 30372146 Description Wheel Kit, Defender Series |
|||
