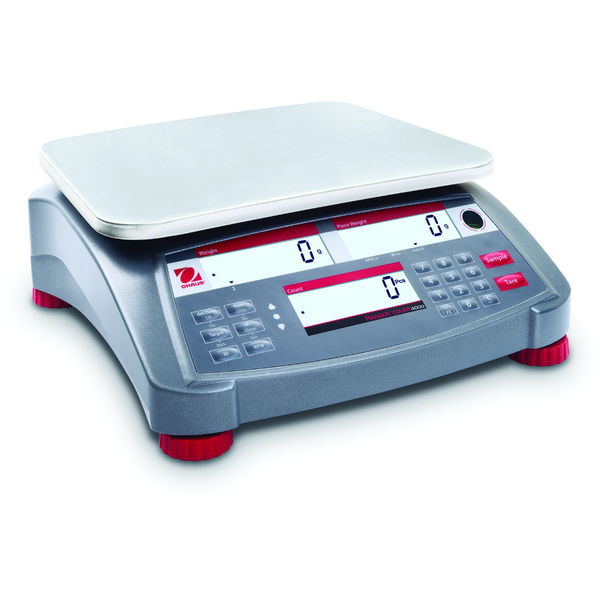

RANGER™ COUNT 4000
Top-of-the-Line Counting Scales for Even the Toughest Industrial Weighing Conditions.
| RC41M3 | RC41M6 | RC41M15 | RC41M30 | |
| Maximum Capacity | 6 lb (3 kg) | 15 lb (6 kg) | 30 lb (15 kg) | 60 lb (30 kg) |
| Readability | 0.0002 lb (0.1 g) | 0.0005 lb (0.2 g) | 0.001 lb (0.5 g) | 0.002 lb (1 g) |
| Readability (Certified) | 0.002 lb (1 g) | 0.005 lb (2 g) | 0.01 lb (5 g) | 0.02 lb (10 g) |
| Item Number: | 30231118 | 30231119 | 30231120 | 30231121 |
OVERVIEW
| Ranger Count 4000 is the ideal tool for tough industrial counting jobs that require durability and accuracy at a great value. Portable with die-cast metal housing and a rechargeable battery, this scale is equipped with weighing, parts counting, check counting, and accumulation functions, and can produce results for a variety of industrial weighing, counting, and measurement needs. |
Applications Weighing, Parts Counting with Auto Optimization, Checkweighing, Accumulation |
|
Display 3 window backlit liquid crystal display (LCD), 3 color checkweighing LEDs |
|
|
Operation AC power (included) or rechargeable battery (included)
|
|
|
Communication Easy access communication port including standard RS232 (included) and second RS232, USB or Ethernet (accessories sold separately) |
|
|
Construction Rugged Cast Aluminum Housing, Stainless Steel Platform |
|
|
Design Features Cast Aluminum Housing, stainless steel platform, sealed front panel, menu lockswitch, up front level indicator, adjustable leveling feet, selectable environmental and auto-print settings, stability indicator, overload and underload indicators, low battery indicator, auto shut-off, auto tare |
SPECIFICATIONS
| RC41M3 | RC41M6 | RC41M15 | RC41M30 | |
| Maximum Capacity | 6 lb (3 kg) | 15 lb (6 kg) | 30 lb (15 kg) | 60 lb (30 kg) |
| Readability | 0.0002 lb (0.1 g) | 0.0005 lb (0.2 g) | 0.001 lb (0.5 g) | 0.002 lb (1 g) |
| Readability (Certified) | 0.002 lb (1 g) | 0.005 lb (2 g) | 0.01 lb (5 g) | 0.02 lb (10 g) |
| Platform Size | 8.9 in x 11.8 in (225 mm x 300 mm) | |||
| Battery Life | 210 Hours with Rechargeable Battery | |||
| Communication | 2nd RS232 (Available as an Accessory); Ethernet (Available as an Accessory); RS232 (Included); USB (Available as an Accessory) | |||
| Counting Resolution | 1:1,500,000 internal resolution | |||
| Dimensions | 12.9 in x 4.8 in x 12.4 in (327 mm x 122 mm x 315 mm) (LxHxW) | |||
| Display | 3-window backlight LCD + 3 LED | |||
| In-Use Cover | Included | |||
| Legal for Trade | NTEP Certified; Measurement Canada Approved; OIML | |||
| Linearity ± | 0.2 g | 0.4 g | 1 g | 2 g |
| Net Weight | 13 lb (5.9 kg) | |||
| Platform Construction | Stainless Steel | |||
| Power | AC Power (Included); Rechargeable Battery (Included) | |||
| Protection Rating | Not Applicable | |||
| Second Scale Input | Yes | |||
| Tare Range | To capacity by subtraction | |||
| Transportation Case | Not applicable | |||
| Units of Measurement | Gram; Kilogram; Pound; Ounce; Pound:Ounce | |||
| Working Environment | 14°F – 104°F, 85%RH, non-condensing (-10°C – 40°C, 85%RH, non-condensing) | |||
ACCESSORIES
|
Item Number 30472064 Description Auxiliary display AD7-RS |
|
|
Item Number 30045641 Description Printer, Impact, SF40A |
|
|
Item Number 80500525 Description Cable RS232 IBM 9P Male-to-Female |
|
|
Item Number 30037447 Description Ethernet Kit R31 RC31 R41 RC41 R71 V71 |
|
|

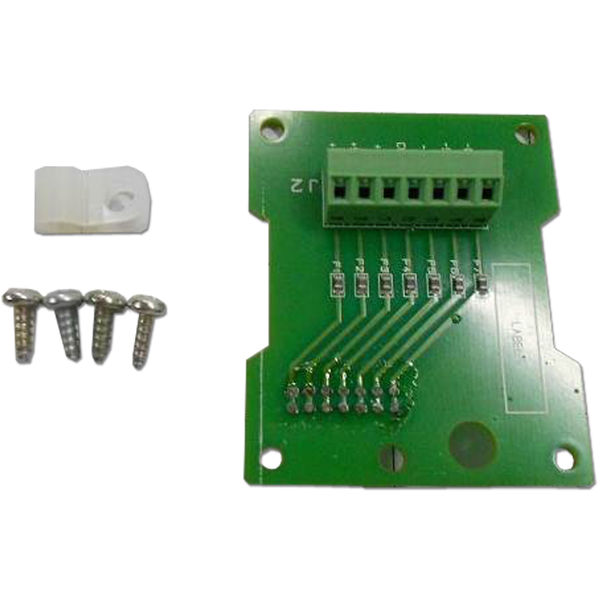

Item Number 30037446 Description PCBA Kit 2nd Platform RC31 R41 RC41 |
|
|
Item Number 30037448 Description RS232 Kit R31 RC31 R41 RC41 R71 V71 |
|
|

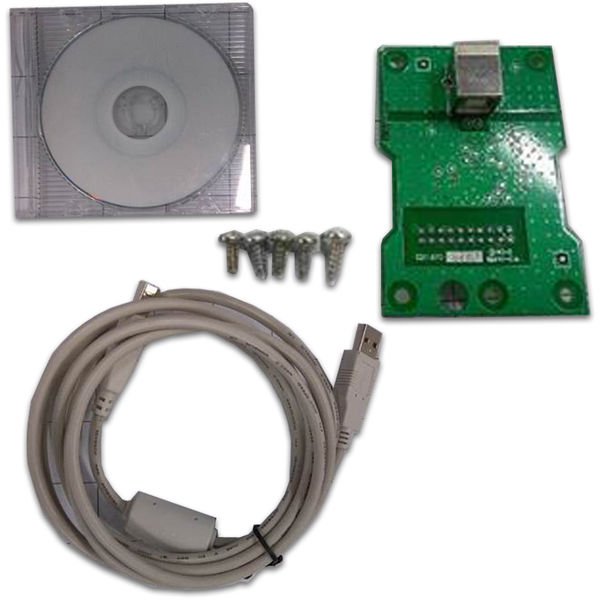

Item Number 30037449 Description USB Kit R31 RC31 R41 RC41 V71 |
