D6RQDR-D15RQDR-D15RQDL-D30RQDL-D60RQDL-D60RQDX-D60RQDV

Thương hiệu: Ohaus

Tình trạng: Còn hàng

Liên hệ

Description
Specifications
Documents

DEFENDER™ 5000 BASE

Durable Bases for the Most Demanding of Industrial Applications

	D6RQDR	D15RQDR	D15RQDL	D30RQDL	D60RQDL	D60RQDX	D60RQDV
Maximum Capacity	3 kg/6 kg	6 kg/15 kg	6 kg/15 kg	15 kg/30 kg	30 kg/60 kg	30 kg/60 kg	30 kg/60 kg
Readability	0.2 g;0.5 g	0.5 g;1 g	0.5 g;1 g	1 g;2 g	2 g;5 g	2 g;5 g	2 g;5 g
Platform Size	305 mm x 305 mm	305 mm x 305 mm	400 mm x 400 mm	400 mm x 400 mm	400 mm x 400 mm	500 mm x 500 mm	610 mm x 610 mm
Item Number:	30448405	30448406	30448409	30448410	30448411	30448415	30448419

OVERVIEW

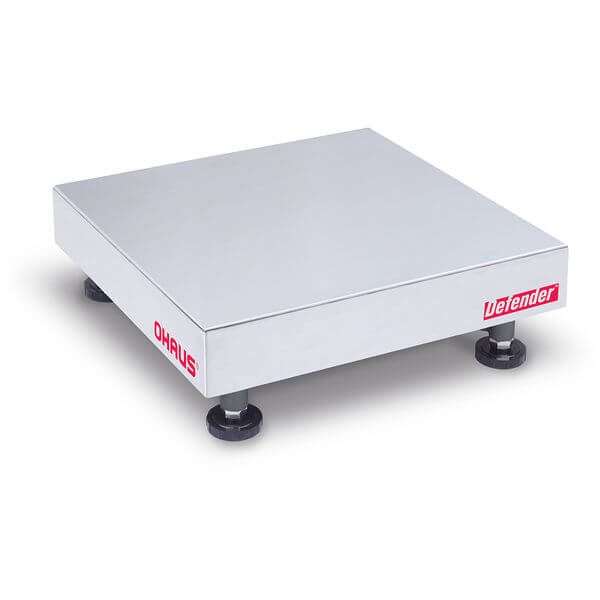

The OHAUS next generation Defender 5000 R Series base offers durability for the most demanding of industrial applications. The R series features moisture-protected single-point load cells, powder-coated steel construction, non-slip rubber adjustable feet, removable stainless steel weighing pans and integrated leveling bubbles. Maximum non-approved resolution of 1:15,000d meets the needs of industrial weighing applications that require extreme accuracy.

Applications

N/A

Display

N/A

Operation

N/A

Communication

N/A

Construction

304-grade stainless steel platform, sand grey powder-coated steel frame, aluminum load cell, non-slip adjustable rubber feet, level indicator

Design Features

150% overload capacity protection

SPECIFICATIONS

	D6RQDR	D15RQDR	D15RQDL	D30RQDL	D60RQDL	D60RQDX	D60RQDV
Maximum Capacity	3 kg/6 kg	6 kg/15 kg	6 kg/15 kg	15 kg/30 kg	30 kg/60 kg	30 kg/60 kg	30 kg/60 kg
Readability	0.2 g;0.5 g	0.5 g;1 g	0.5 g;1 g	1 g;2 g	2 g;5 g	2 g;5 g	2 g;5 g
Platform Size	305 mm x 305 mm		400 mm x 400 mm			500 mm x 500 mm	610 mm x 610 mm
Legal for Trade	EC Type Approvable; OIML
Protection Rating	IP67
Dimensions	338 mm x 99 mm x 305 mm (LxHxW)		428 mm x 120 mm x 400 mm (LxHxW)			523 mm x 120 mm x 500 mm (LxHxW)	633 mm x 130 mm x 610 mm (LxHxW)
Net Weight	6.5 kg		8.6 kg			19 kg	31 kg
Platform Construction	Stainless Steel
Working	-10°C – 40°C, 80%RH, non-condensing

ACCESSORIES

	Item Number 30424409 Description Cable Extension 9m D52
	Item Number 30429931 Description Cable Kit Extension for base
	Item Number 30424410 Description Column Kit 35 cm CS D52xx
	Item Number 30424413 Description Column Kit 35 cm SST D52xx
	Item Number 30424411 Description Column Kit 68 cm CS D52xx
	Item Number 30424414 Description Column Kit 68 cm SST D52xx
	Item Number 30424412 Description Column Kit 98 cm CS D52xx
	Item Number 30424415 Description Column Kit 98 cm SST D52xx
	Item Number 30424025 Description Holder Kit Printer SST
	Item Number 30424024 Description Mounting Set Front SST D52
	Item Number 30372146 Description Wheel Kit, Defender Series
