T32M
Economical Metal Indicator for Basic Industrial Applications
| Resolution | 20,000 |
| Resolution (Certified) | 6,000 |
| Battery Life | Not Applicable |
| Item Number: | 80252868 |
T32M
Economical Metal Indicator for Basic Industrial Applications
| Resolution | 20,000 |
| Resolution (Certified) | 6,000 |
| Battery Life | Not Applicable |
| Item Number: | 80252867 |
OVERVIEW
The OHAUS T32MC and T32ME indicators are ideal for general weighing and simple applications in production, packaging, warehouse, inventory, shipping and receiving areas. Both feature a painted steel housing with high-impact ABS faceplate, steel mounting bracket, bi-directional RS232 and software for weighing, simple parts counting, basic checkweighing, dynamic weighing and accumulation of results. T32ME features an LED display while T32MC features an LCD display.
Applications
Weighing, Parts Counting, Checkweighing, Dynamic, Accumulation
Display

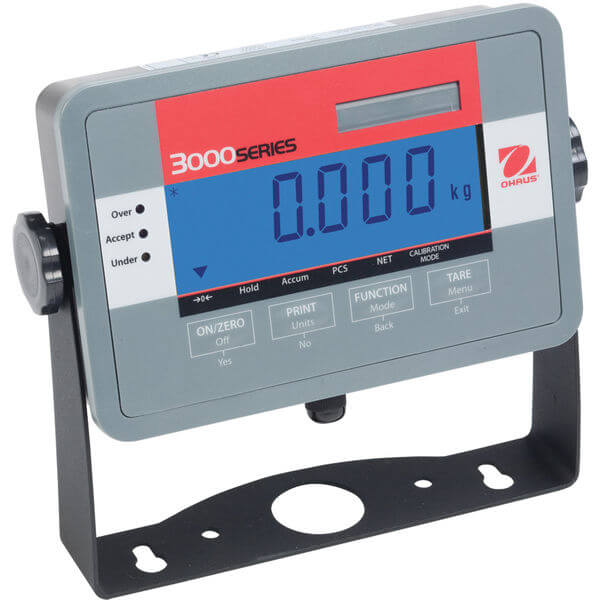

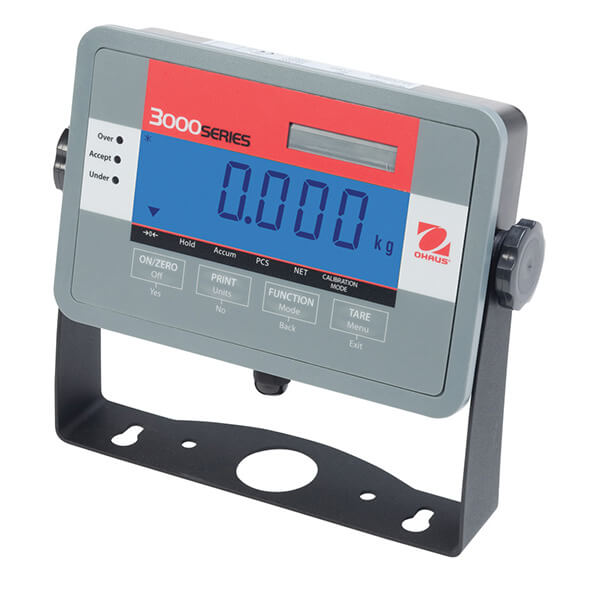

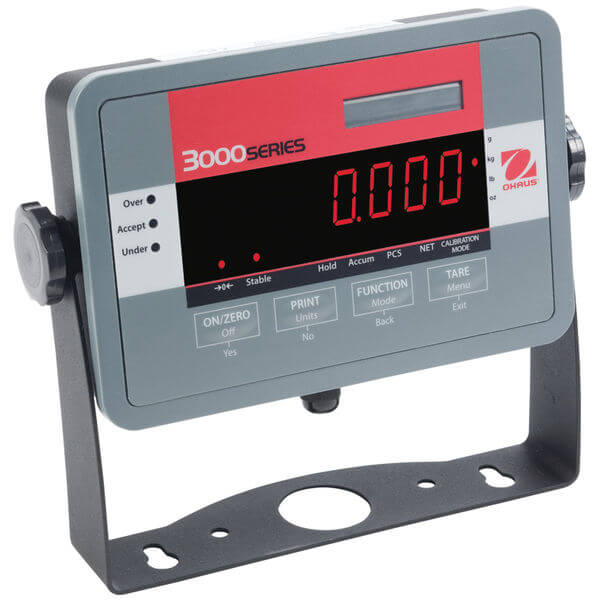

T32MC: Backlit liquid crystal display (LCD) T32ME: Light-emitting diode display (LED)
Operation
AC adapter (included)
Communication
Easy access communication port including RS232 interface (included)
Construction
Front ABS/rear painted steel housing and painted steel mounting bracket
Design Features
User-configurable resolution up to 20,000d/6,000e, OIML Approved, NTEP Certified and Measurement Canada Approved
SPECIFICATIONS
| T32MC | T32ME | |||
| Resolution | 20,000 | |||
| Resolution (Certified) | 6,000 | |||
| Battery Life | Not Applicable | |||
| Outputs | Not Applicable | |||
| Second Scale Input | Not Applicable | |||
| Protection Rating | Not Applicable | |||
| Communication | RS232 (Included) | |||
| Dimensions | 1.8 in x 7.6 in x 8.7 in (46 mm x 192 mm x 222 mm) (LxHxW) | |||
| Display | LCD with white LED backlight | Red LED | ||
| In-Use Cover | No | |||
| Legal for Trade | NTEP Certified; EC Type Approvable; Measurement Canada Approved | |||
| Net Weight | 1.5 lb (0.7 kg) | |||
| Power | AC Adapter (Included) | |||
| Protection Rating | Not Applicable | |||
| Stabilization Time | 2 s | |||
| Tare Range | To capacity by subtraction | |||
| Units of Measurement | Gram; Kilogram; Ounce; Pound:Ounce | |||
| Working Environment | 14°F – 104°F, 85%RH, non-condensing (-10°C – 40°C, 85%RH, non-condensing) | |||
ACCESSORIES
|
Item Number 30045641 Description Printer, Impact, SF40A |
|||
|

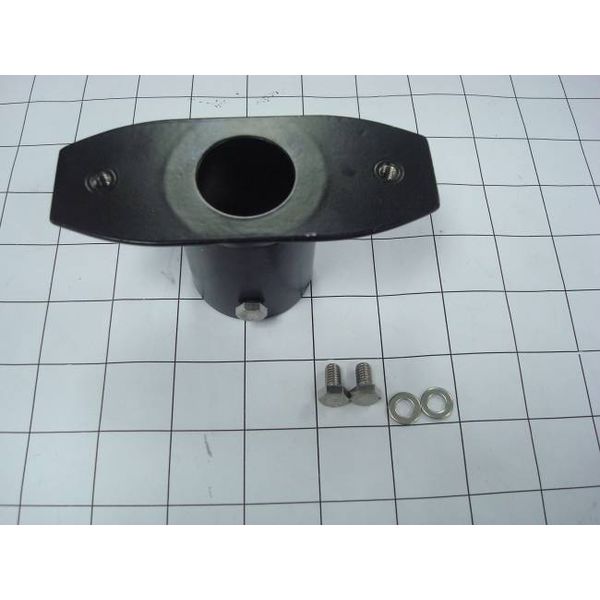

Item Number 72209339 Description Column Adapter, Painted, T31P T51P T71P |
|||
|
Item Number 30304102 Description Interface Kit, RS232-Ethernet |
|||
|
Item Number 30304101 Description Interface Kit, RS232-USB |
|||
