I-DT33P

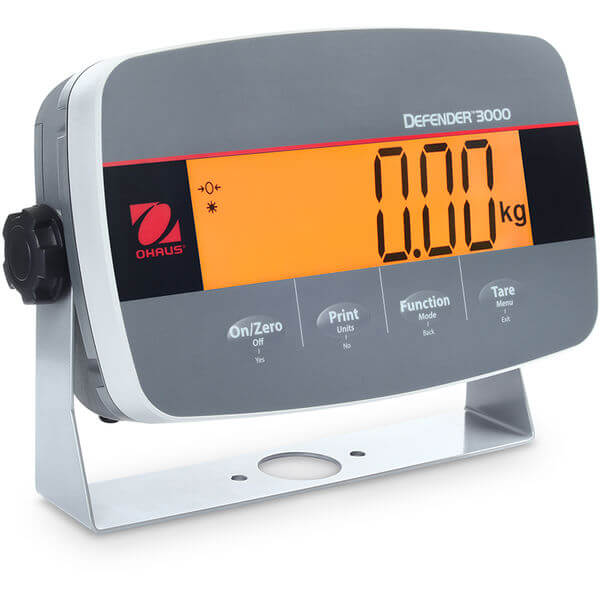

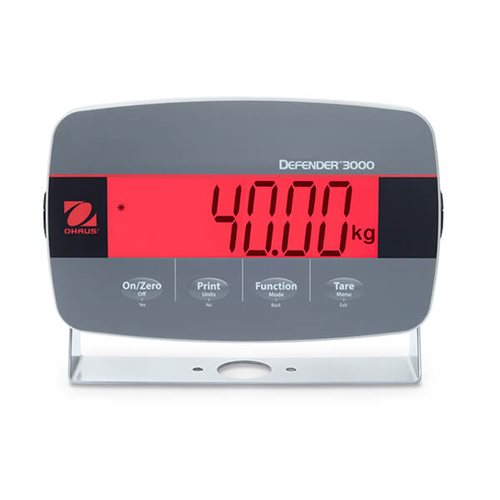

ABS Plastic Indicator for Basic Industrial Applications
| Resolution | 30,000 |
| Resolution (Certified) | 10,000 |
| Battery Life | 100 Hours with Rechargeable Battery |
| Item Number: | 30676318 |
OVERVIEW
Designed with affordability in mind for basic industrial applications, the i-DT33P indicator combines high-impact ABS housing with a large multicolor backlit LCD display and bi-directional RS232. The i-DT33P also features software for Weighing, Parts Counting, Checkweighing and Totalization.
Applications
Weighing, Parts Counting, Checkweighing and Totalization
Display
7 Segment LCD with multicolor backlight
Operation
Internal power supply with power cord (included), 6C (LR14) Batteries (not included) or Rechargeable Battery
Communication
Standard RS232 and optional USB Device or Ethernet
Construction
ABS housing and powder-coated steel mounting bracket
SPECIFICATIONS
| Resolution | 30,000 |
| Resolution (Certified) | 10,000 |
| Battery Life | 100 Hours with Rechargeable Battery |
| Outputs | Not applicable |
| Second Scale Input | Not applicable |
| Protection Rating | Not applicable |
| Units of Measurement | Metric Tons; Gram; Kilogram; Pound; Ounce; Pound:Ounce |
| Legal for Trade | Not applicable |
| Dimensions | 251.6 mm x 177 mm x 81 mm (LxHxW) |
| Display | 7 Segment LCD with multicolor backlight |
| Working Environment | -10°C – 40°C, 85%RH, non-condensing |
| Tare Range | To capacity by subtraction |
| Net Weight | 1.8 kg |
| Power | AC Power (Included); Rechargeable Battery (Included) |
| Communication | Ethernet (Available as an Accessory); RS232 (Included); USB (Available as an Accessory) |
ACCESSORIES
|
Item Number 30045641 Description Printer, Impact, SF40A |
|||
|
Item Number 80500525 Description Cable RS232 IBM 9P Male-to-Female |
|||
|
Item Number 30699121 Description Dust Cover Set(5) i-DT33 |
|||
|
Item Number 30429666 Description Ethernet kit Defender Series |
|||
|
Item Number 30699122 Description Rechargeable battery Kit i-DT33P |
|||
|
Item Number 30699120 Description USB Device Interface Kit i-DT33 |
|||
