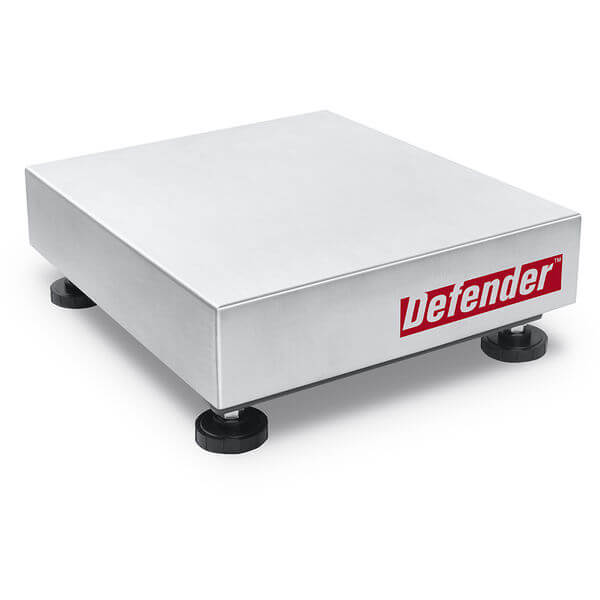

DEFENDER™ 3000 BASE
Bench Scale Bases for Basic Industrial Applications
| D15B1R | D30B1R | D60B1R | D60B1L | D150B1L | D150B1X | D300B1X | D300B1V | D600B1V | |
| Maximum Capacity | 15 kg | 30 kg | 60 kg | 60 kg | 150 kg | 150 kg | 300 kg | 300 kg | 600 kg |
| Readability | 2 g | 5 g | 10 g | 10 g | 20 g | 20 g | 50 g | 50 g | 100 g |
| Readability (Certified) | 5 g | 10 g | 20 g | 20 g | 50 g | 50 g | 100 g | 100 g | 200 g |
| Item Number: | 30683710 | 30683711 | 30683712 | 30683716 | 30683717 | 30683720 | 30683721 | 30683724 | 30683725 |
OVERVIEW
| The Defender 3000 Bases provide economical yet durable performance for industrial weighing. With Legal-for-Trade certifications, these bases can be used for both general applications as well as where legal-for-trade performance is required. |
Applications Weighing, Checkweighing, Counting, Totalization. |
|
Construction 304-grade stainless steel platform, powder-coated steel tubular frame, aluminum load cell. |
SPECIFICATIONS
| D15B1R | D30B1R | D60B1R | D60B1L | D150B1L | D150B1X | D300B1X | D300B1V | D600B1V | |
| Maximum Capacity | 15 kg | 30 kg | 60 kg | 60 kg | 150 kg | 150 kg | 300 kg | 300 kg | 600 kg |
| Readability | 2 g | 5 g | 10 g | 10 g | 20 g | 20 g | 50 g | 50 g | 100 g |
| Readability (Certified) | 5 g | 10 g | 20 g | 20 g | 50 g | 50 g | 100 g | 100 g | 200 g |
| Platform Size | 355 mm x 305 mm | 550 mm x 420 mm | 650 mm x 500 mm | 800 mm x 600 mm | |||||
| Legal for Trade | Not Applicable | ||||||||
| Protection Rating | Not Applicable | ||||||||
| Platform Construction | Stainless Steel | ||||||||
| Dimensions | 355 mm x 122 mm x 305 mm (LxHxW) | 550 mm x 134 mm x 420 mm (LxHxW) | 650 mm x 150 mm x 500 mm (LxHxW) | 800 mm x 154 mm x 600 mm (LxHxW) | |||||
| Net Weight | 7.2 kg | 13.1 kg | 23.3 kg | 41.2 kg | |||||
| Working Environment | -10°C – 40°C, 85%RH, non-condensing | ||||||||
ACCESSORIES
|

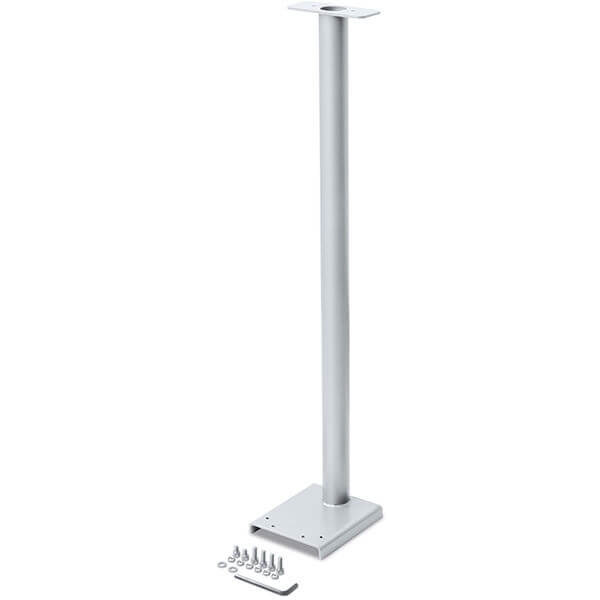

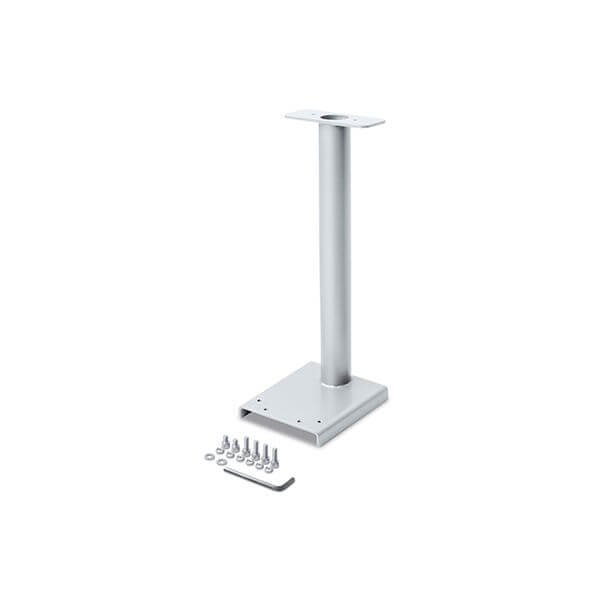

Item Number 30696597 Description Column Kit 330mm CS i-DT33 |
|||
|

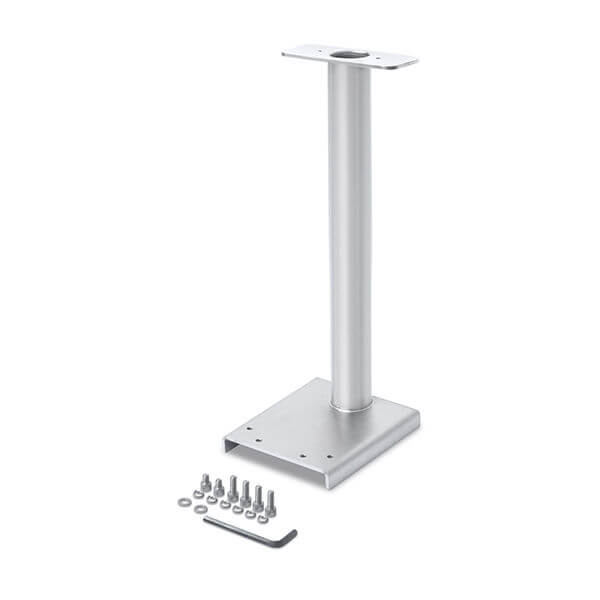

Item Number 30696595 Description Column Kit 330mm SST i-DT33 |
|||
|

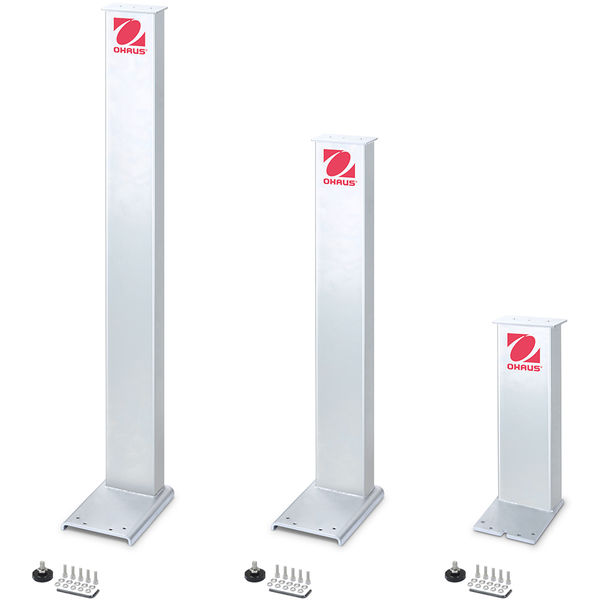

Item Number 30424410 Description Column Kit 35 cm CS D52xx |
|||
|

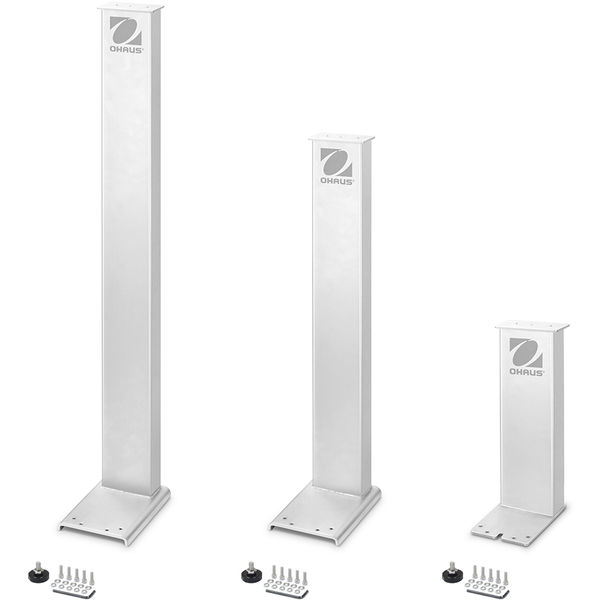

Item Number 30424413 Description Column Kit 35 cm SST D52xx |
|||
|
Item Number 30424411 Description Column Kit 68 cm CS D52xx |
|||
|
Item Number 30424414 Description Column Kit 68 cm SST D52xx |
|||
|
Item Number 30696598 Description Column Kit 680mm CS i-DT33 |
|||
|
Item Number 30696596 Description Column Kit 680mm SST i-DT33 |
|||
|
Item Number 30424412 Description Column Kit 98 cm CS D52xx |
|||
|

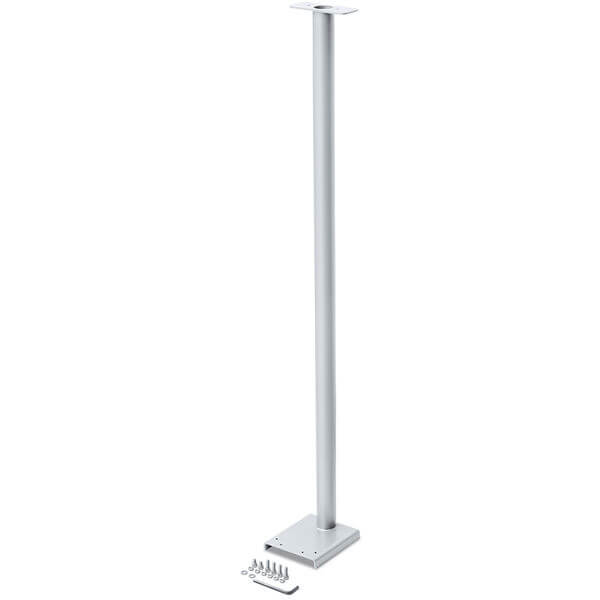

Item Number 30696599 Description Column Kit 980mm CS i-DT33 |
|||
|
Item Number 30696600 Description Handle Kit i-DT33 |
|||
|
Item Number 30616409 Description Wheel Kit SST Defender Series |
|||
|
Item Number 30372146 Description Wheel Kit, Defender Series |
|||
