Advanced Performance Stainless Steel Indicator with External Device Control Capabilities
| Resolution | 50,000 |
| Resolution (Certified) | 6,000 |
| Battery Life | Not applicable |
| Item Number: | 30215456 |
OVERVIEW

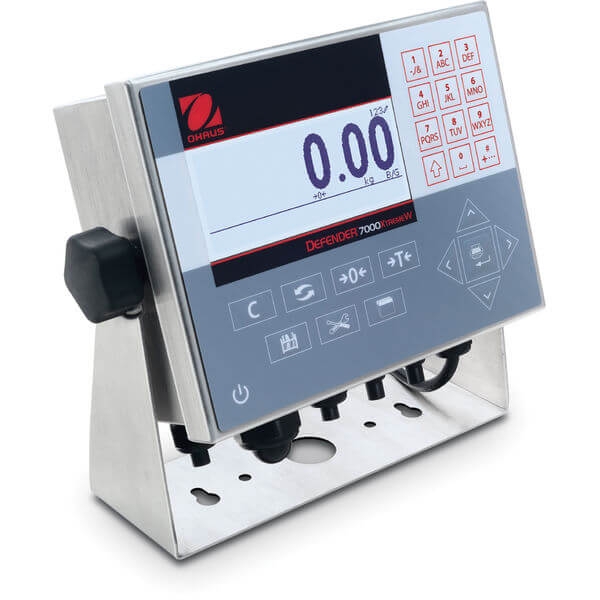

| The OHAUS T72XW indicator provides the flexibility, performance and operation necessary for specific applications with connectivity and data output capabilities - including vehicle weighing, over/under checkweighing, animal weighing and counting. The 7000 series indicator has multiple functions, intuitive software, multiple connectivity options, and the durability to stand up to the wear-and-tear in industrial settings. |

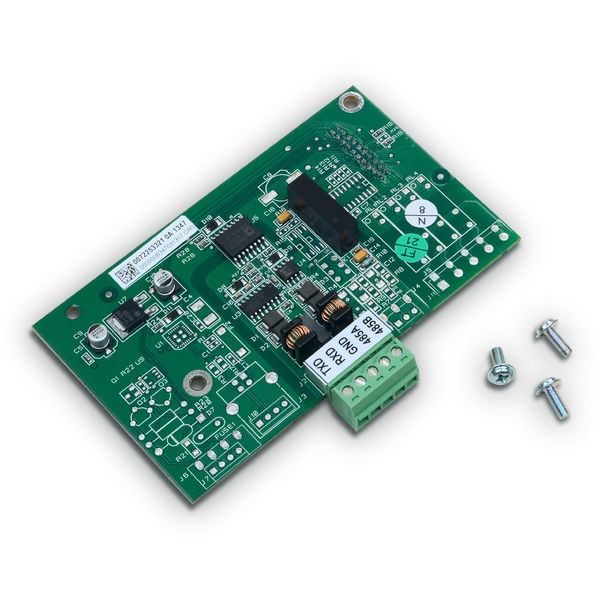

Applications Weighing, Parts Counting, Checkweighing, Animal/Dynamic Weighing, Vehicle Weighing Display Transflective graphic LCD with white backlight, 240 x 96 pixels Operation AC power (included) Communication Easy access communication port including RS232 (included), USB, Ethernet and second RS232 or RS485 (accessories sold separately). GLP/GMP data output with real-time clock. Construction IP66/NEMA 4X stainless steel housing and mounting bracket Design Features Checkweighing lights with selectable operation and audible signal settings, sealed front panel, 5 operating languages (English, Spanish, French, German and Italian), selectable environmental and auto-print settings, stability and overload/underload indicators |
SPECIFICATIONS
| Resolution | 50,000 |
| Resolution (Certified) | 6,000 |
| Battery Life | Not applicable |
| Outputs | 2 In/4 Out digital I/O |
| Second Scale Input | Not applicable |
| Protection Rating | IP66 |
| Communication | 2nd RS232 (Available as an Accessory); Ethernet (Available as an Accessory); RS232 (Included); USB (Available as an Accessory) |
| Dimensions | 3.4 in x 9.1 in x 11.1 in (86 mm x 232 mm x 283 mm) (LxHxW) |
| Display | graphic LCD |
| Legal for Trade | NTEP Certified; EC Type Approved; Measurement Canada Approved |
| Net Weight | 6.6 lb (3 kg) |
| Power | AC Power (Included) |
| Protection Rating | IP66 |
| Tare Range | To capacity by subtraction |
| Units of Measurement | Metric Tons; Kilogram; Gram; Pound; Ounce; Pound:Ounce |
| Working Environment | 14°F – 104°F, 85%RH, non-condensing (-10°C – 40°C, 85%RH, non-condensing) |
ACCESSORIES
|
Item Number 80500552 Description Cable RS232 XW Indicators |
|||
|
Item Number 30045641 Description Printer, Impact, SF40A |
|||
|

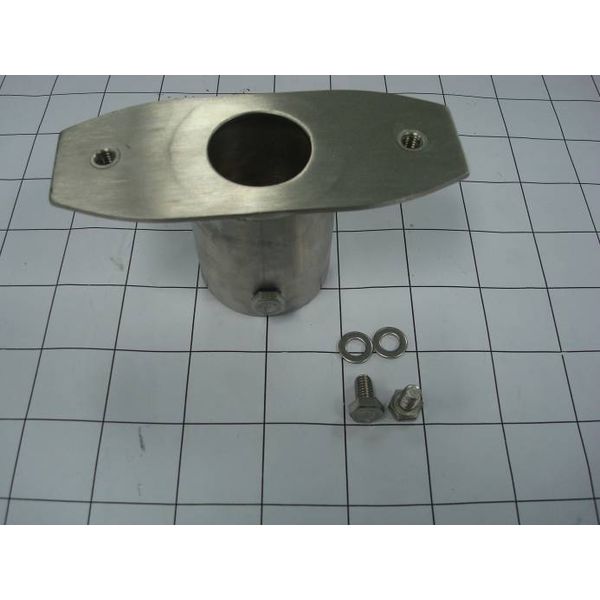

Item Number 72209340 Description Column Adapter, SST, T32XW T51XW T71XW |
|||
|
Item Number 30132165 Description COM2 Kit, T72XW |
|||
|

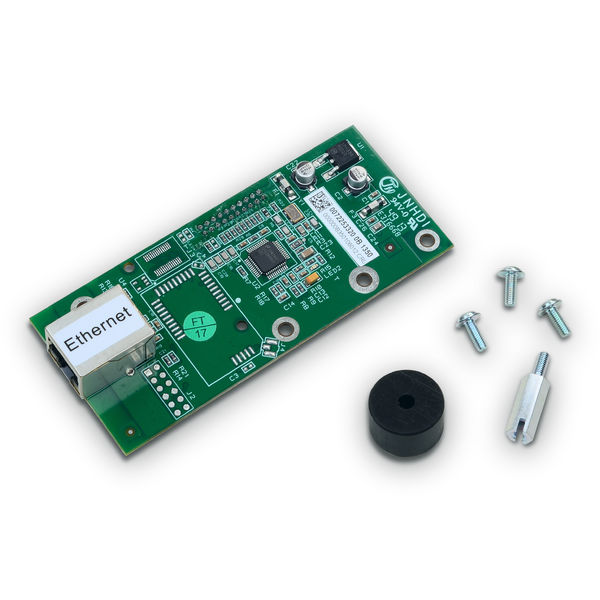

Item Number 30132163 Description Ethernet Kit, T72XW |
|||
|

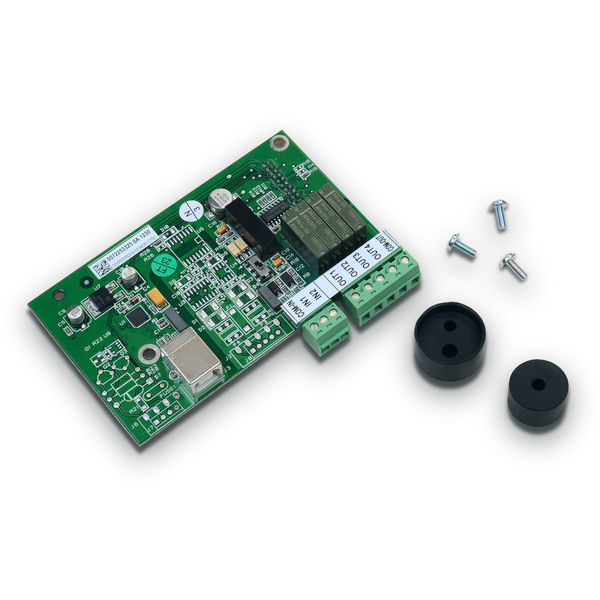

Item Number 30132164 Description USB with I/O Kit, T72XW |
|||
