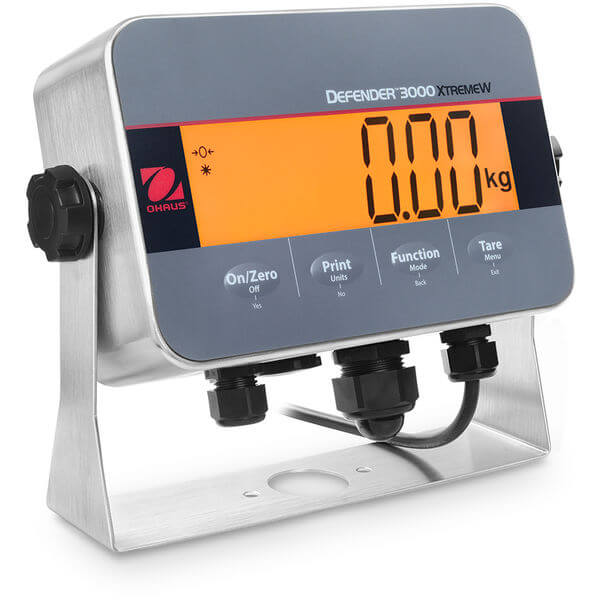

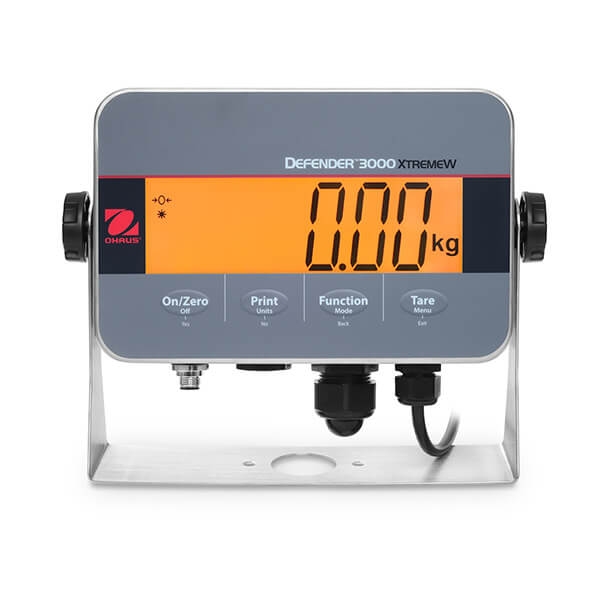

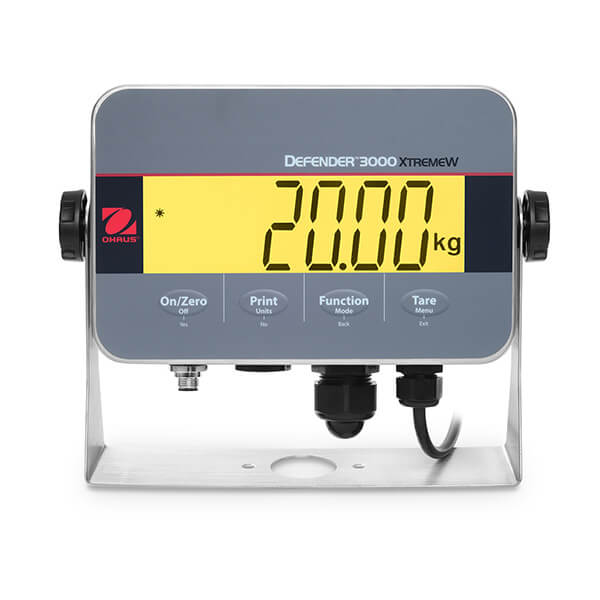

I-DT33XW
Stainless Steel Washdown Indicator for Basic Industrial Applications
| Resolution | 30,000 |
| Resolution (Certified) | 10,000 |
| Battery Life | 100 Hours with Rechargeable Battery |
| Item Number: | 30678597 |
OVERVIEW
i-DT33XW is the go-to indicator when simplicity and accuracy are necessary in wet environments, or where the ability to frequently wash down is a must. The IP66 washdown stainless steel housing indicator features software for Weighing, Parts Counting, Checkweighing and Totalization, a large multicolor backlit LCD display, a stainless steel mounting bracket, and a built-in bi-directional RS232C for printing or data connectivity.
Applications
Weighing, Parts Counting, Checkweighing and Totalization
Display
7 Segment LCD with multicolor backlight
Operation
Internal power supply with power cord (included) or Rechargeable Battery (included)
Communication
Standard RS232 and optional USB Device or Ethernet
Construction
ABS plastic housing
Design Features
IP66 stainless steel housing and mounting bracket
SPECIFICATIONS
| Resolution | 30,000 |
| Resolution (Certified) | 10,000 |
| Battery Life | 100 Hours with Rechargeable Battery |
| Outputs | Not applicable |
| Second Scale Input | Not applicable |
| Protection Rating | IP66 |
| Units of Measurement | Metric Tons; Gram; Kilogram; Pound; Ounce; Pound:Ounce |
| Legal for Trade | Not applicable |
| Dimensions | 256 mm x 204 mm x 74 mm (LxHxW) |
| Display | 7 Segment LCD with multicolor backlight |
| Working Environment | -10°C – 40°C, 85%RH, non-condensing |
| Tare Range | To capacity by subtraction |
| Net Weight | 3 kg |
| Power | AC Power (Included); Rechargeable Battery (Included) |
| Communication | Ethernet (Available as an Accessory); RS232 (Included); USB (Available as an Accessory) |
ACCESSORIES
|
Item Number 30045641 Description Printer, Impact, SF40A |
|||
|
Item Number 80500552 Description Cable RS232 XW Indicators |
|||
|
Item Number 30699121 Description Dust Cover Set(5) i-DT33 |
|||
|
Item Number 30429666 Description Ethernet kit Defender Series |
|||
|
Item Number 30699120 Description USB Device Interface Kit i-DT33 |
|||
