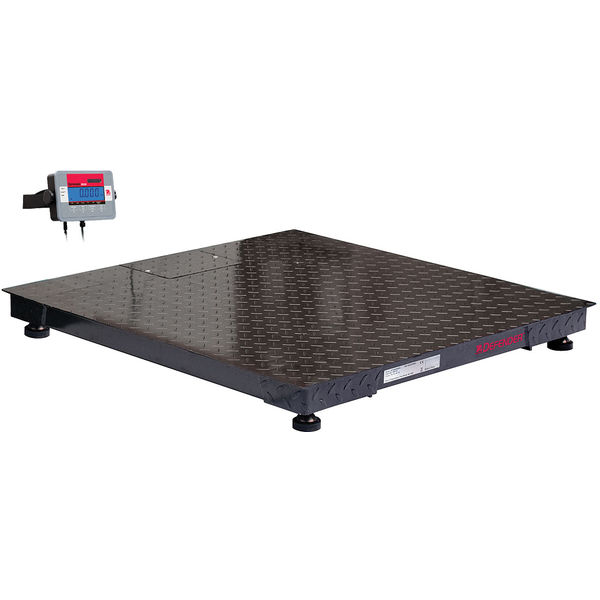

DF SERIES
Economical Floor Scale for Basic Industrial Applications
| DF32M1500BS | DF32M1500BR | DF32M1500BL | DF32M1500BLX | DF32M1500BX | |
| Maximum Capacity | 1,500 kg | 1,500 kg | 1,500 kg | 1,500 kg | 1,500 kg |
| Readability | 0.5 kg | 0.5 kg | 0.5 kg | 0.5 kg | 0.5 kg |
| Platform Size | 800 mm x 800 mm | 1,000 mm x 1,000 mm | 1,200 mm x 1,200 mm | 1,500 mm x 1,200 mm | 1,500 mm x 1,500 mm |
| Item Number: | 83032891 | 83032892 | 83032893 | 83033730 | 83032895 |
OVERVIEW
| OHAUS Defender 3000 Series of floor scales are the best value for all your heavy-duty weighing needs. Available in both square and rectangular designs, corresponding ramps and mounting accessories, and with the added benefit of pit mounting options, the OHAUS Defender 3000 floor platforms and scales offer a unique combination of value, quality and dependability that your company can rely on. |
Applications Weighing, Parts Counting, Checkweighing, Accumulation, Display Hold |
|
Display T32MC: Backlit liquid crystal display (LCD) T32ME: Light-emitting diode display (LED) |
|
|
Operation AC adapter (included)
|
|
|
Communication Easy access communication port including RS232 interface (included) |
|
|
Construction Front ABS/rear painted carbon steel indicator and mounting bracket, black painted steel treaded platform, IP65 stainless steel junction box, 5mm thick fixed top plate, 4 H8C IP67 OIML R60 alloy steel load cells, pit frames and ramps (accessories sold separately) |
|
|
Design Features 150% overload capacity protection |
SPECIFICATIONS
| DF32M1500BS | DF32M1500BR | DF32M1500BL | DF32M1500BLX | DF32M1500BX | |
| Maximum Capacity | 1,500 kg | 1,500 kg | 1,500 kg | 1,500 kg | 1,500 kg |
| Readability | 0.5 kg | 0.5 kg | 0.5 kg | 0.5 kg | 0.5 kg |
| Platform Size | 800 mm x 800 mm | 1,000 mm x 1,000 mm | 1,200 mm x 1,200 mm | 1,500 mm x 1,200 mm | 1,500 mm x 1,500 mm |
| Communication | RS232 (Included) | ||||
| Dimensions | 800 mm x 110 mm x 800 mm (LxHxW) | 1,000 mm x 110 mm x 1,000 mm (LxHxW) | 1,200 mm x 110 mm x 1,200 mm (LxHxW) | 1,500 mm x 110 mm x 1,200 mm (LxHxW) | 1,500 mm x 110 mm x 1,500 mm (LxHxW) |
| Display | LCD with white LED backlight | ||||
| Legal for Trade | EC Type Approvable | ||||
| Net Weight | 72 kg | 90 kg | 122 kg | 209 kg | 249 kg |
| Outputs | Not Applicable | ||||
| Platform Construction | Painted Steel Diamond Plate | ||||
| Power | AC Adapter (Included) | ||||
| Protection Rating | Not Applicable | ||||
| Tare Range | To capacity by subtraction | ||||
| Units of Measurement | Gram; Kilogram; Ounce; Pound:Ounce | ||||
| Working Environment | 14°F – 104°F, 85%RH, non-condensing (-10°C – 40°C, 85%RH, non-condensing) | ||||
ACCESSORIES
|
Item Number 30045641 Description Printer, Impact, SF40A |
|||||
|
Item Number 80500525 Description Cable RS232 IBM 9P Male-to-Female |
|||||
|

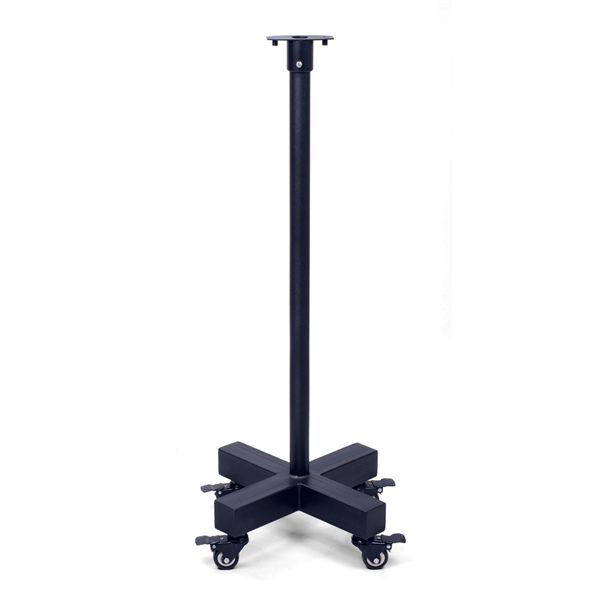

Item Number 30047153 Description Column Kit, Painted, Floor Scale |
|||||
|

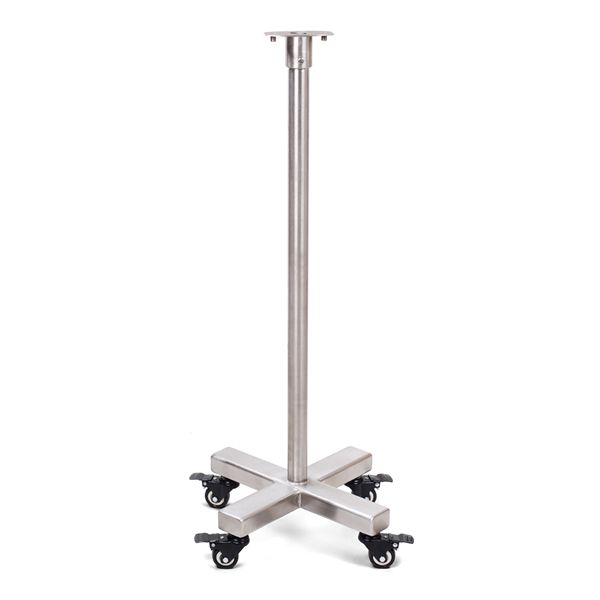

Item Number 30047154 Description Column Kit, SST, Floor Scale |
|||||
|
Item Number 30304102 Description Interface Kit, RS232-Ethernet |
|||||
|
Item Number 30304101 Description Interface Kit, RS232-USB |
|||||
|

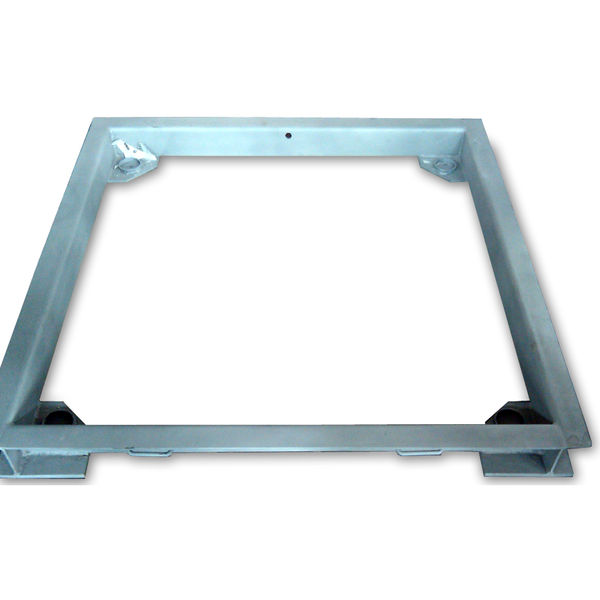

Item Number 83033708 Description Pit Frame, 800x800mm, Painted, DF-B |
Item Number 83033709 Description Pit Frame, 1000x1000mm, Painted, DF-B |
Item Number 83033710 Description Pit Frame, 1200x1200mm, Painted, DF-B |
Item Number 83033714 Description Pit Frame, 1200x1500mm, Painted, DF-B |
Item Number 83033711 Description Pit Frame, 1500x1500mm, Painted, DF-B |
|
|

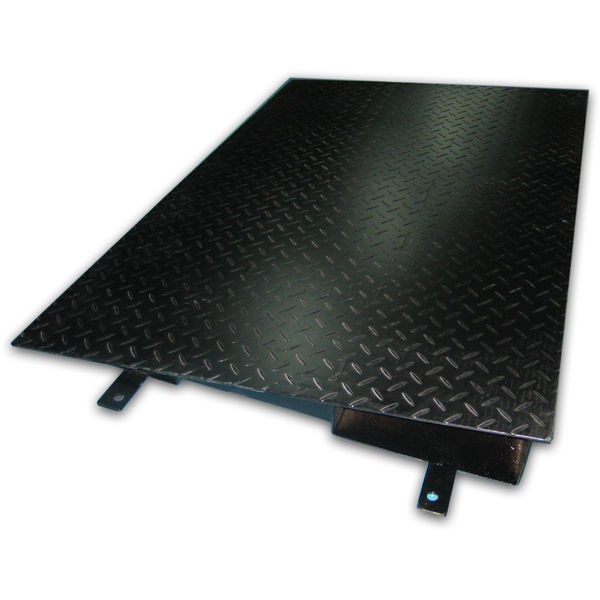

Item Number 80252722 Description Ramp DF-B CS 0.8 x 0.75m |
Item Number 80252723 Description Ramp DF-B CS 1 x 0.75m |
Item Number 80252724 Description Ramp DF-B CS 1.2 x 0.75m |
Item Number 80252724 Description Ramp DF-B CS 1.2 x 0.75m |
Item Number 80252725 Description Ramp DF-B CS 1.5 x 0.75m |
|
