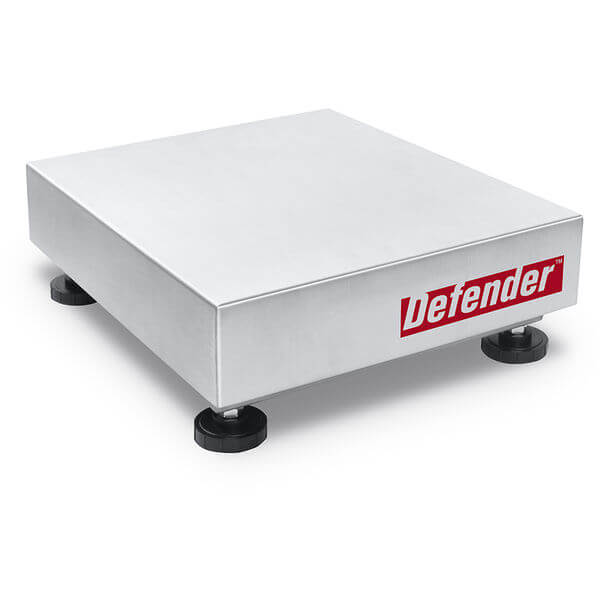

DEFENDER™ 3000 WASHDOWN BASE
Bench Scale Bases for Basic Industrial Washdown Applications
| D15C1R | D30C1R | D60C1R | D60C1L | D150C1L | D150C1X | D300C1X | |
| Maximum Capacity | 15 kg | 30 kg | 60 kg | 60 kg | 150 kg | 150 kg | 300 kg |
| Readability | 2 g | 5 g | 10 g | 10 g | 20 g | 20 g | 50 g |
| Readability (Certified) | 5 g | 10 g | 20 g | 20 g | 50 g | 50 g | 100 g |
| Item Number: | 30683713 | 30683714 | 30683715 | 30683718 | 30683719 | 30683722 | 30683723 |
OVERVIEW
| The Defender 3000 Stainless Steel Bases offer economical yet durable performance for industrial weighing in washdown environments. With NTEP certification, Measurement Canada and OIML approval, these bases can be used for both general applications as well as where legal-for-trade performance is required. |
Applications Weighing, Checkweighing, Counting, Totalization. |
|
Construction 304-grade stainless steel platform, stainless steel tubular frame, IP67 stainless steel load cell |
SPECIFICATIONS
| D15C1R | D30C1R | D60C1R | D60C1L | D150C1L | D150C1X | D300C1X | |
| Maximum Capacity | 15 kg | 30 kg | 60 kg | 60 kg | 150 kg | 150 kg | 300 kg |
| Readability | 2 g | 5 g | 10 g | 10 g | 20 g | 20 g | 50 g |
| Readability (Certified) | 5 g | 10 g | 20 g | 20 g | 50 g | 50 g | 100 g |
| Platform Size | 355 mm x 305 mm | 550 mm x 420 mm | 650 mm x 500 mm | ||||
| Legal for Trade | Not Applicable | ||||||
| Protection Rating | IP67 | ||||||
| Platform Construction | Stainless Steel | ||||||
| Dimensions | 355 mm x 122 mm x 305 mm (LxHxW) | 550 mm x 134 mm x 420 mm (LxHxW) | 650 mm x 150 mm x 500 mm (LxHxW) | ||||
| Net Weight | 7.8 kg | 14 kg | 26.6 kg | ||||
| Working Environment | -10°C – 40°C, 85%RH, non-condensing | ||||||
ACCESSORIES
|
Item Number 30696597 Description Column Kit 330mm CS i-DT33 |
|||
|
Item Number 30696595 Description Column Kit 330mm SST i-DT33 |
|||
|
Item Number 30424410 Description Column Kit 35 cm CS D52xx |
|||
|
Item Number 30424413 Description Column Kit 35 cm SST D52xx |
|||
|
Item Number 30424411 Description Column Kit 68 cm CS D52xx |
|||
|
Item Number 30424414 Description Column Kit 68 cm SST D52xx |
|||
|
Item Number 30696598 Description Column Kit 680mm CS i-DT33 |
|||
|
Item Number 30696596 Description Column Kit 680mm SST i-DT33 |
|||
|
Item Number 30424412 Description Column Kit 98 cm CS D52xx |
|||
|
Item Number 30696599 Description Column Kit 980mm CS i-DT33 |
|||
|
Item Number 30696600 Description Handle Kit i-DT33 |
|||
|
Item Number 30616409 Description Wheel Kit SST Defender Series |
|||
|
Item Number 30372146 Description Wheel Kit, Defender Series |
|||
