I-DT61XW

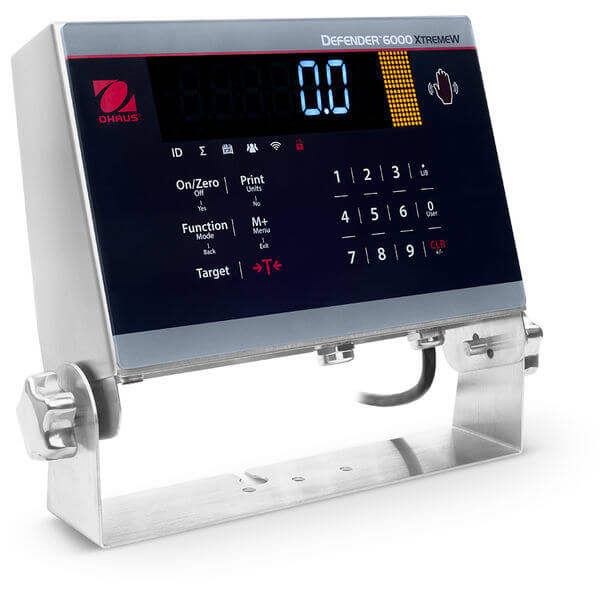

Advanced IP68/IP69K Washdown Indicator
| Resolution | 75,000 |
| Battery Life | Not Applicable |
| Outputs | 4 - 20mA;0–10V;2 In/4 Out digital I/O |
| Item Number: | 30575579 |
OVERVIEW

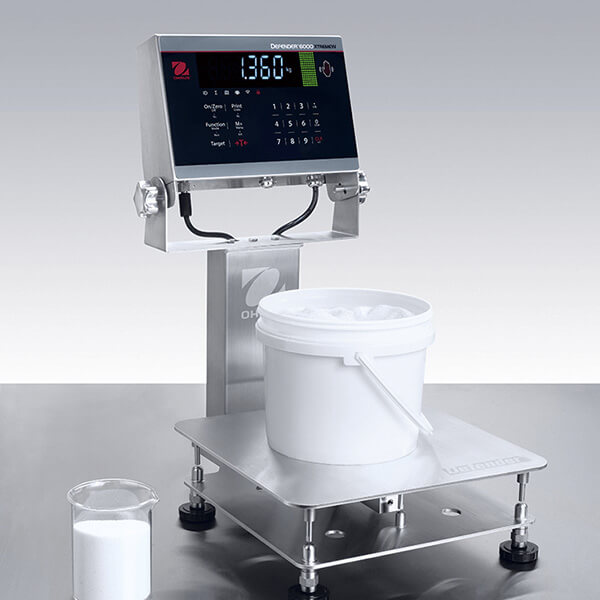

| The Defender 6000 Series Extreme Washdown Indicator is specifically designed for food, chemical and pharmaceutical applications including production, processing, and packaging. Defender 6000 handles the most demanding applications with a 316 stainless steel housing equipped with bar matrix check light, knife-proof front panel and EasyConnectTM. |
Applications Weighing, Counting with APW optimization, Percent Weighing, Checkweighing, Checkcounting, Filling, Dynamic Weighing/Display Hold Display 6-digit, 7-segment white LED, 20 mm high digits Operation 100-240 VAC / 50/60 Hz universal power supply, hardwired Communication Easy access communication ports including RS232 and USB Host, second RS232/RS485/USB device, Ethernet and WiFi/Bluetooth, Discrete I/O and Analog output (available as accessories); GLP/GMP data output with real-time clock Construction IP68/IP69K 316 stainless steel housing indicator and mounting bracket, knife-resistant front panel Design Features 3-color check light bar, menu and key lock, selectable environmental and auto-print settings, stability indicator, overload/underload indicators, low battery indicator, auto shut-off, auto tare |
SPECIFICATIONS
| Resolution | 75,000 |
| Battery Life | Not Applicable |
| Outputs | 4 - 20mA; 0–10V; 2 In/4 Out digital I/O |
| Second Scale Input | Not Applicable |
| Protection Rating | IP69k; IP68 |
| Communication | Ethernet (Available as an Accessory); 2nd RS232/RS485/USB (available as an accessory); RS232; USB Host; WiFi/Bluetooth (available as an accessory) |
| Dimensions | 11.4 in x 9.3 in x 3.1 in (290 mm x 235 mm x 80 mm) (LxHxW) |
| Display | 7-Segment white LED, height 20mm + 3 color checkweigh dot matrix LED |
| Legal for Trade | EC Type Approvable; OIML |
| Net Weight | 7 lb (3.2 kg) |
| Power | Rechargeable Battery (Not Included); AC Power (Included) |
| Tare Range | To capacity by subtraction |
| Units of Measurement | Gram; Kilogram; Pound; Ounce; Pound:Ounce |
| Working Environment | 14°F – 104°F, 80%RH, non-condensing (-10°C – 40°C, 80%RH, non-condensing) |
ACCESSORIES
|
Item Number 30424404 Description 2nd RS232/RS485/USB Kit TD52 DT61XW |
|||
|
Item Number 30045641 Description Printer, Impact, SF40A |
|||
|
Item Number 30424021 Description Alarm Beacon Kit 3 Colors 243mm OHAUS |
|||
|
Item Number 30424403 Description Analog Output Kit, TD52 DT61XW |
|||
|
Item Number 30472064 Description Auxiliary display AD7-RS |
|||
|
Item Number 30424409 Description Cable Extension 9m D52 |
|||
|
Item Number 80500552 Description Cable RS232 XW Indicators |
|||
|
Item Number 30097591 Description Discrete I/O Kit, R71 TD52 DT61XW |
|||
|
Item Number 30429666 Description Ethernet kit Defender Series |
|||
|
Item Number 30379716 Description Gland M16 D52 |
|||
|
Item Number 80500503 Description PCBA Kit, Alibi Memory, R71 T71 |
|||
|
Item Number 30572907 Description Sealing Kit External Power Bank |
|||
|
Item Number 30412537 Description Wireless Dongle MTICWD-200 |
|||
