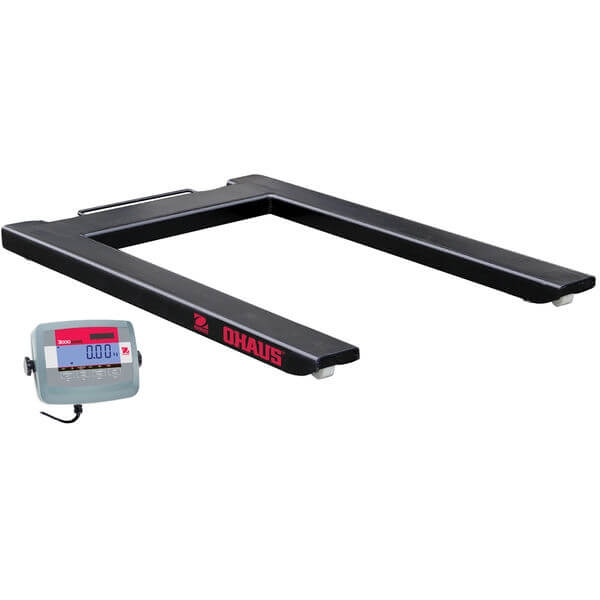

VE SERIES PALLET
Economical Painted Steel Pallet Scales for Basic Industrial Applications
| Maximum Capacity | 1,500 kg |
| Readability | 0.5 kg |
| Readability (Certified) | 0.5 kg |
| Item Number: | 80251858 |
OVERVIEW
| The OHAUS VE Series of U-frame pallet scales are the economical choice for cost-effective dry weighing needs in industrial and commercial applications. Together with mobility features such as a lifting handle and front-mounted rollers, the OHAUS VE Series offers a unique combination of convenience, value and quality that your company can depend on for years. |
Applications Weighing, Parts Counting |
|
Display Backlit liquid crystal display (LCD) |
|
|
Operation AC adapter (included) or rechargeable battery (included)
|
|
|
Communication Easy access communication port with RS232 interface (included) |
|
|
Construction ABS indicator with reversible rear cover and integrated key holes, painted carbon steel U-frame, IP65 stainless steel junction box, 4 H8C IP67 OIML R60 alloy steel load cells, handle and front wheels, foot plate kit (accessories sold separately) |
|
|
Design Features Geographical gravity adjustment, environmental filtering |
SPECIFICATIONS
| Maximum Capacity | 1,500 kg |
| Readability | 0.5 kg |
| Readability (Certified) | 0.5 kg |
| Platform Size | 1,260 mm x 840 mm |
| Communication | RS232 (Included) |
| Dimensions | 49.6 in x 3.5 in x 33.1 in (1,260 mm x 90 mm x 840 mm) (LxHxW) |
| Display | LCD with white LED backlight |
| Legal for Trade | EC Type Approvable |
| Net Weight | 53 kg |
| Outputs | Not applicable |
| Platform Construction | Painted Steel Diamond Plate |
| Power | Rechargeable Battery (Included); AC Adapter (Included) |
| Protection Rating | Not applicable |
| Units of Measurement | Gram; Kilogram; Pound; Ounce; Pound:Ounce |
| Working Environment | -10°C – 40°C, 85%RH, non-condensing |
ACCESSORIES
|
Item Number 30045641 Description Printer, Impact, SF40A |
|||
|
Item Number 80500525 Description Cable RS232 IBM 9P Male-to-Female |
|||
|
Item Number 30047153 Description Column Kit, Painted, Floor Scale |
|||
|
Item Number 30047154 Description Column Kit, SST, Floor Scale |
|||
|
Item Number 30304102 Description Interface Kit, RS232-Ethernet |
|||
|
Item Number 30304101 Description Interface Kit, RS232-USB |
|||
|
Item Number 30101017 Description In-Use-Cover, T24P T31P |
|||
|

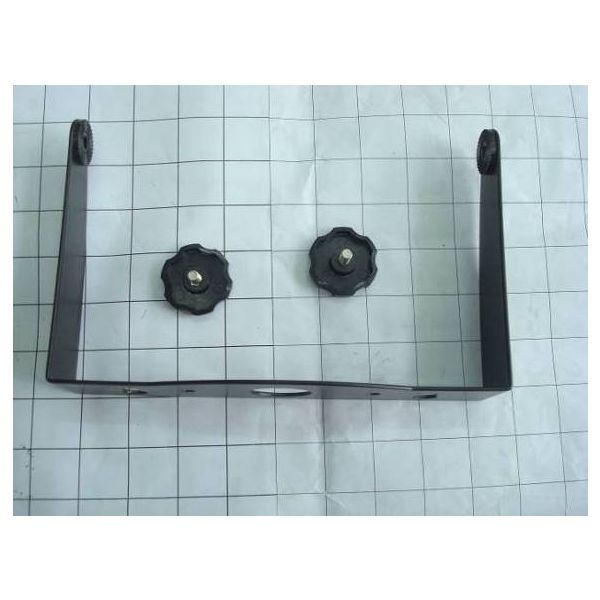

Item Number 80251747 Description Wall Mount Kit, Painted, T31P |
|||
