VE SERIES
Economical Painted Steel Floor Scales for Basic Industrial Applications
| VE1500S31P | VE1500R31P | VE1500L31P | |
| Maximum Capacity | 1,500 kg | 1,500 kg | 1,500 kg |
| Readability | 0.5 kg | 0.5 kg | 0.5 kg |
| Readability (Certified) | 0.5 kg | 0.5 kg | 0.5 kg |
| Item Number: | 80251846 | 80251847 | 80251849 |
OVERVIEW

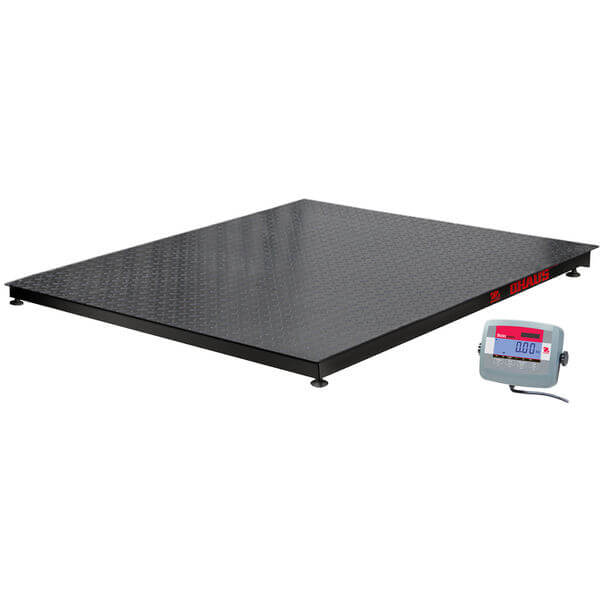

| The VE Series of Floor scales are the right choice for your basic dry weighing needs in industrial and commercial applications. Coupled with corresponding ramps, mounting accessories and T31P indicator, the VE Series offer a unique combination of value, quality and dependability that your company can rely on. |
Applications Weighing, Parts Counting |
|
Display Backlit liquid crystal display (LCD) |
|
|
Operation AC adapter (included) or rechargeable battery (included)
|
|
|
Communication Easy access communication port with RS232 interface (included) |
|
|
Construction ABS plastic indicator, 5mm fixed top plate, black treaded painted steel platform, IP65 stainless steel junction box with side access, 4 x H8C IP67 OIML R60 alloy steel load cells, two carbon steel eye bolts, available painted steel or stainless steel ramp kit and wall mount bracket kit (accessories sold separately) |
|
|
Design Features 125% overload protection |
SPECIFICATIONS
| VE1500S31P | VE1500R31P | VE1500L31P | |
| Maximum Capacity | 1,500 kg | 1,500 kg | 1,500 kg |
| Readability | 0.5 kg | 0.5 kg | 0.5 kg |
| Readability (Certified) | 0.5 kg | 0.5 kg | 0.5 kg |
| Platform Size | 1,000 mm x 1,000 mm | 1,250 mm x 1,250 mm | 1,500 mm x 1,500 mm |
| Battery Life | 100 Hours with Rechargeable Battery | ||
| Communication | RS232 (Included) | ||
| Dimensions | 39.4 in x 3.5 in x 60 in (1,000 mm x 90 mm x 1,000 mm) (LxHxW) | 49.2 in x 3.5 in x 60 in (1,250 mm x 90 mm x 1,250 mm) (LxHxW) | 59.1 in x 3.5 in x 60 in (1,500 mm x 90 mm x 1,500 mm) (LxHxW) |
| Display | LCD with white LED backlight | ||
| Legal for Trade | EC Type Approvable | ||
| Net Weight | 85 kg | 125 kg | 172 kg |
| Outputs | Not Applicable | ||
| Platform Construction | Painted Steel Diamond Plate | ||
| Power | Rechargeable Battery (Included); AC Adapter (Included) | ||
| Protection Rating | Not Applicable | ||
| Tare Range | To capacity by subtraction | ||
| Units of Measurement | Gram; Kilogram; Pound; Ounce; Pound:Ounce | ||
| Working Environment | 14°F – 104°F, 85%RH, non-condensing (-10°C – 40°C, 85%RH, non-condensing) | ||
ACCESSORIES
|
Item Number 30045641 Description Printer, Impact, SF40A |
|||
|
Item Number 80500525 Description Cable RS232 IBM 9P Male-to-Female |
|||
|
Item Number 30047153 Description Column Kit, Painted, Floor Scale |
|||
|
Item Number 30047154 Description Column Kit, SST, Floor Scale |
|||
|
Item Number 72198344 Description Foot plate kit Painted VE/DF-B1 |
|||
|
Item Number 30304102 Description Interface Kit, RS232-Ethernet |
|||
|
Item Number 30304101 Description Interface Kit, RS232-USB |
|||
|
Item Number 30101017 Description In-Use-Cover, T24P T31P |
|||
|
Item Number 80251747 Description Wall Mount Kit, Painted, T31P |
|||
|
Item Number 72198338 Description Ramp 1000mm Painted VE/DF-B1 |
Item Number 72198339 Description Ramp 1250mm Painted VE/DF-B1 |
Item Number 72198340 Description Ramp 1500mm Painted VE/DF-B1 |
|
