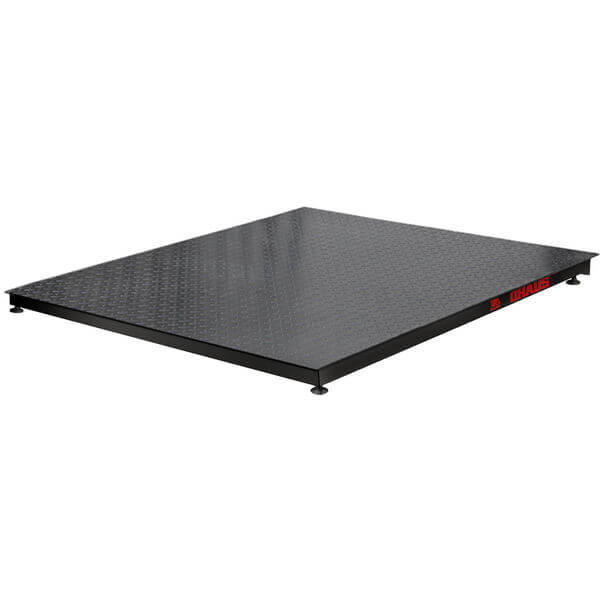

VE SERIES FLOOR SCALE PLATFORMS
Economical Painted Steel Platform
| VE1500S | VE1500R | |
| Maximum Capacity | 1,500 kg | 1,500 kg |
| Readability | 0.5 kg | 0.5 kg |
| Readability (Certified) | 0.5 kg | 0.5 kg |
| Item Number: | 80251471 | 80251472 |
OVERVIEW
| The OHAUS VE Series floor platforms the value solution to your dry weighing needs in industrial and commercial applications. Its high-quality material and construction are designed to minimize distortion under heavy loads, and ensures years of dependable performance. Available also with corresponding ramps, the OHAUS VE Series floor platforms offer a unique combination of value, quality and dependability that your company can rely on |
Applications N/A |
|
Display N/A |
|
|
Operation N/A
|
|
|
Communication N/A |
|
|
Construction Black painted steel platform, raised embossed treads, fixed top plate 5mm thick, 4 x H8C IP67 OIML R60 alloy steel load cells, IP65 stainless steel junction box with side access |
|
|
Design Features Painted platform, fixed top plate 5mm thick, 4 x H8C IP67 OIML R60 alloy steel load cells, IP65 Stainless steel junction box with side access |
SPECIFICATIONS
| VE1500S | VE1500R | |
| Maximum Capacity | 1500 kg | 1500 kg |
| Readability | 0.5 kg | 0.5 kg |
| Readability (Certified) | 0.5 kg | 0.5 kg |
| Platform Size | 1,000 mm x 1,000 mm | 1,250 mm x 1,250 mm |
| Dimensions | 39.4 in x 3.5 in x 60 in (1,000 mm x 90 mm x 1,000 mm) (LxHxW) | 49.2 in x 3.5 in x 60 in (1,250 mm x 90 mm x 1,250 mm) (LxHxW) |
| Legal for Trade | EC Type Approvable | |
| Net Weight | 83 kg | 123 kg |
| Platform Construction | Painted Steel Diamond Plate | |
| Protection Rating | IP67 | |
| Working Environment | 14°F – 104°F, 85%RH, non-condensing (-10°C – 40°C, 85%RH, non-condensing) | |
ACCESSORIES
|
Item Number 30047153 Description Column Kit, Painted, Floor Scale |
|||
|
Item Number 30047154 Description Column Kit, SST, Floor Scale |
|||
|
Item Number 72198344 Description Foot plate kit Painted VE/DF-B1 |
|||
|
Item Number 72198338 Description Ramp 1000mm Painted VE/DF-B1 |
Item Number 72198339 Description Ramp 1250mm Painted VE/DF-B1 |
||
