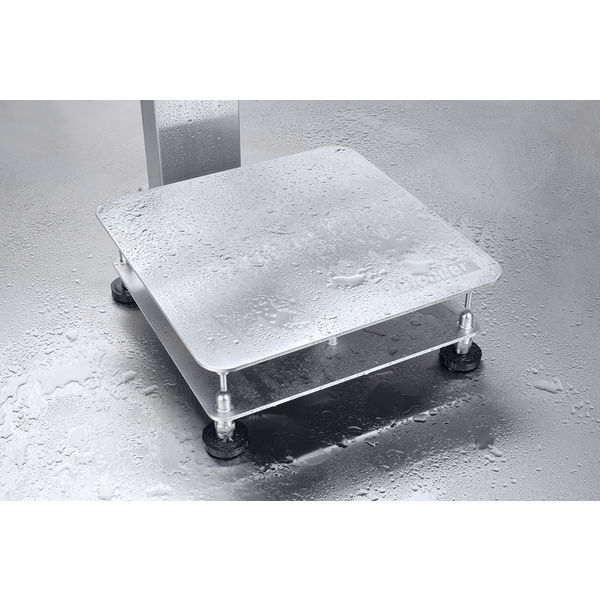

DEFENDER™ 6000 WASHDOWN BASE
Advanced IP68/IP69K Washdown Base
| D15K1R | D30K1R | |
| Maximum Capacity | 30 lb (15 kg) | 60 lb (30 kg) |
| Readability | 0.0002 lb (1 g) | 0.005 lb (2 g) |
| Platform Size | 300 mm x 300 mm | 300 mm x 300 mm |
| Item Number: | 30597960 | 30597961 |
OVERVIEW
| The Defender 6000 Series Extreme Washdown Base is specifically designed for food, chemical and pharmaceutical applications, including production and packaging. Defender 6000 handles the most demanding applications with 316 stainless steel platform and frame, and hermetically-sealed stainless steel IP69K load cell. Defender 6000 meets metrological approvals, NSF listing, and supporting HACCP systems. |
Applications N/A |
|
Display N/A |
|
|
Operation N/A
|
|
|
Communication N/A |
|
|
Construction 316 stainless steel platform and frame, hermetically-sealed stainless steel load cell, non-slip adjustable rubber feet, level indicator |
|
|
Design Features 150% overload capacity protection, open design to minimize build-up and support easy cleaning |
SPECIFICATIONS
| D15K1R | D30K1R | |
| Maximum Capacity | 30 lb (15 kg) | 60 lb (30 kg) |
| Readability | 0.0002 lb (1 g) | 0.005 lb (2 g) |
| Platform Size | 300 mm x 300 mm | |
| Legal for Trade | EC Type Approvable; OIML | |
| Protection Rating | IP69k; IP68 | |
| Dimensions | 4.2 in (300 mm x 106 mm x 300 mm) | |
| Net Weight | 7 kg | |
| Platform Construction | Stainless Steel | |
| Working Environment | 14°F – 104°F, 80%RH, non-condensing (-10°C – 40°C, 80%RH, non-condensing) | |
ACCESSORIES
|
Item Number 30424409 Description Cable Extension 9m D52 |
|||
|

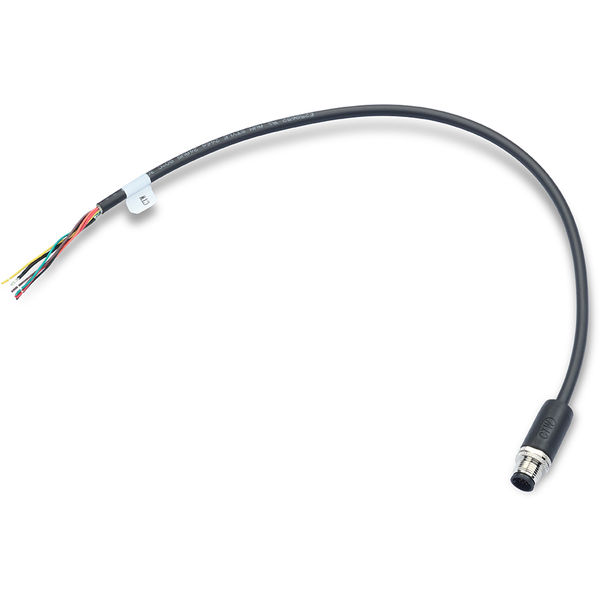

Item Number 30429931 Description Cable Kit Extension for base |
|||
|

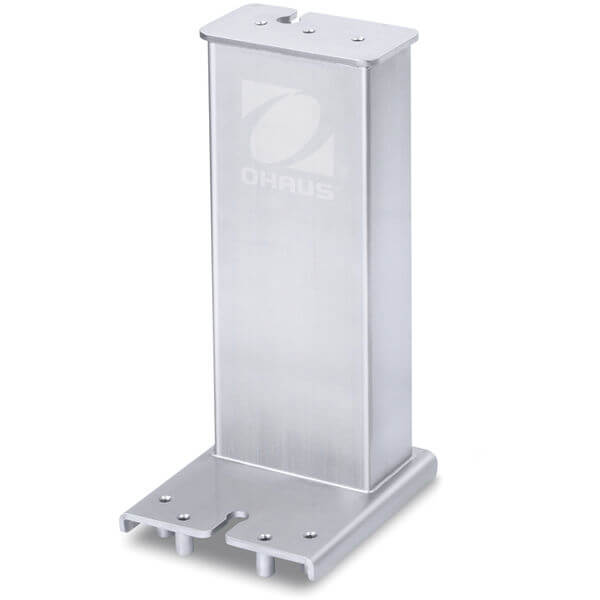

Item Number 30572908 Description Column Kit 260mm 316 D61 |
|||
|

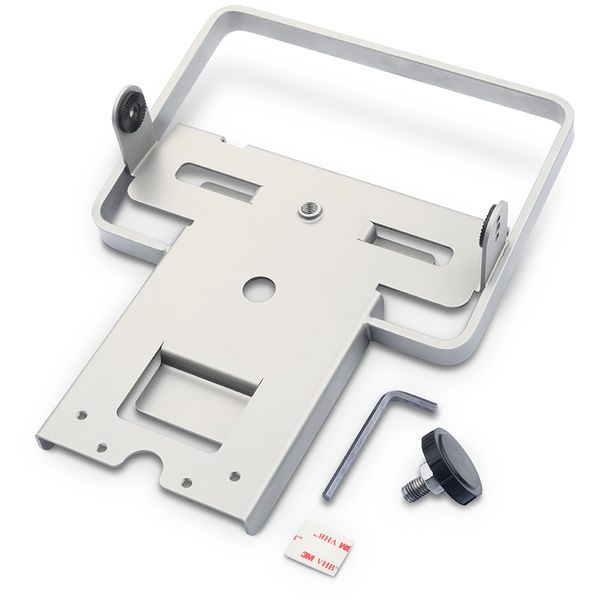

Item Number 30626654 Description Mounting Set Front SST DT61 |
|||
|
Item Number 30616409 Description Wheel Kit SST Defender Series |
|||
