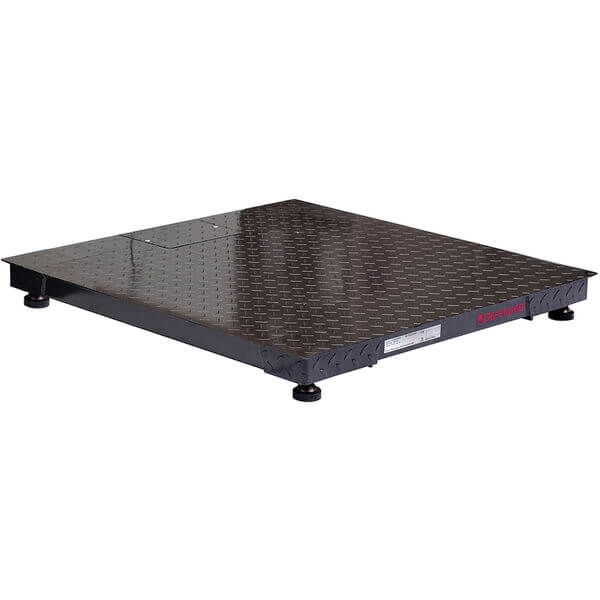

DF SERIES FLOOR SCALE PLATFORMS
Versatile, low cost floor scale platform
| DF3000BL | DF3000BLX | DF3000BX | |
| Maximum Capacity | 3,000 kg | 3,000 kg | 3,000 kg |
| Readability | 1 kg | 1 kg | 1 kg |
| Readability (Certified) | 1 kg | 1 kg | 1 kg |
| Item Number: | 83032908 | 83033739 | 83032910 |
OVERVIEW
| Versatile, low cost floor and pit platform with and without T32M indicator |
Applications N/A |
|
Display N/A |
|
|
Operation N/A
|
|
|
Communication N/A |
|
|
Construction Metal indicator, black painted steel platform, raised embossed treads, fixed top plate 5mm thick, 4 x H8C IP67 OIML R60 alloy steel load cells, IP65 stainless steel junction box |
|
|
Design Features Corresponding ramps and pit mounting options |
SPECIFICATIONS
| DF3000BL | DF3000BLX | DF3000BX | |
| Maximum Capacity | 3,000 kg | 3,000 kg | 3,000 kg |
| Readability | 1 kg | 1 kg | 1 kg |
| Readability (Certified) | 1 kg | 1 kg | 1 kg |
| Platform Size | 1,200 mm x 1,200 mm | 1,200 mm x 1,500 mm | 1,500 mm x 1,500 mm |
| Dimensions | 47.2 in x 4.3 in x 60 in (1,200 mm x 110 mm x 1,200 mm) (LxHxW) | 47.2 in x 4.3 in x 60 in (1,200 mm x 110 mm x 1,500 mm) (LxHxW) | 59.1 in x 4.3 in x 60 in (1,500 mm x 110 mm x 1,500 mm) (LxHxW) |
| Legal for Trade | EC Type Approvable | ||
| Net Weight | 122 kg | 209 kg | 249 kg |
| Platform Construction | Painted Steel Diamond Plate | ||
| Protection Rating | IP 65 | ||
| Working Environment | 14°F – 104°F, 85%RH, non-condensing (-10°C – 40°C, 85%RH, non-condensing) | ||
ACCESSORIES
|
Item Number 30047153 Description Column Kit, Painted, Floor Scale |
|||||
|
Item Number 30047154 Description Column Kit, SST, Floor Scale |
|||||
|
Item Number 72225239 Description Foot Plate, Set(2), Painted, DF-B |
|||||
|
Item Number 83033710 Description Pit Frame, 1200x1200mm, Painted, DF-B |
Item Number 83033714 Description Pit Frame, 1200x1500mm, Painted, DF-B |
Item Number 83033711 Description Pit Frame, 1500x1500mm, Painted, DF-B |
|||
|
Item Number 80252724 Description Ramp DF-B CS 1.2 x 0.75m |
Item Number 80252724 Description Ramp DF-B CS 1.2 x 0.75m |
Item Number 80252725 Description Ramp DF-B CS 1.5 x 0.75m |
|||
