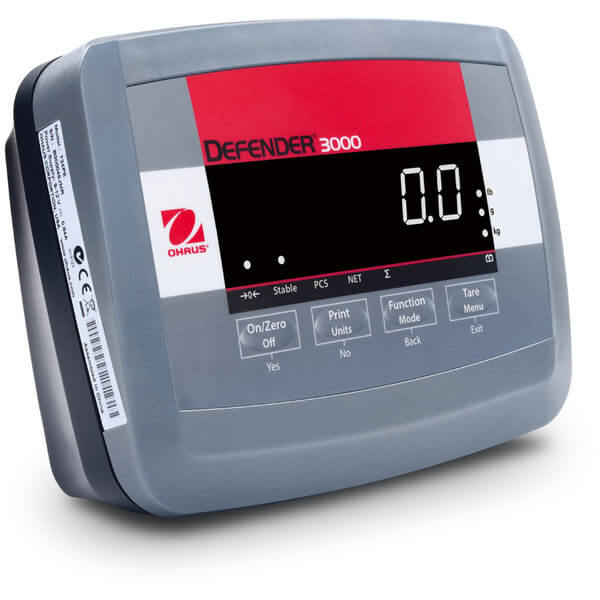

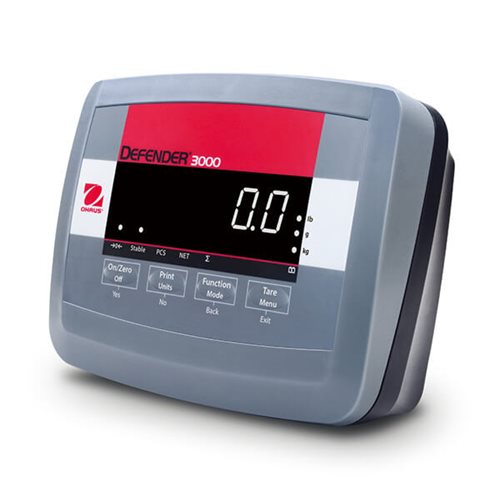

T32PE
Economical ABS Plastic Indicator for Basic Industrial Applications
| Resolution | 20,000 |
| Resolution (Certified) | 6,000 |
| Battery Life | 80 Hours with Rechargeable Battery |
| Item Number: | 30529750 |
OVERVIEW
Designed with affordability in mind for basic industrial applications, the T32PE combines high-impact ABS housing with a large white LED display, bi-directional RS232 and 80-hour internal rechargeable battery. The T32PE also features software for weighing, simple parts counting and accumulation.
Applications
Weighing, Parts Counting, Accumulation
Display
Light-emitting diode display (LED)
Operation
AC power (included) or rechargeable battery (included)
Communication
Easy Access RS232 communication port (included)
Construction
ABS housing
Design Features
ABS plastic housing, white LED display, tactile mechanical keys, standard RS232C with manual/continuous/interval printing, hardware configuration lockout switch, internal lead-acid rechargeable battery and AC power. Software included for parts counting mode with selectable sample sizes and weighing totalization (Accumulation) functions. Selectable span calibration points
SPECIFICATIONS
| Resolution | 20,000 |
| Resolution (Certified) | 6,000 |
| Battery Life | 80 Hours with Rechargeable Battery |
| Outputs | Not Applicable |
| Second Scale Input | Not Applicable |
| Protection Rating | Not Applicable |
| Communication | RS232 (Included) |
| Dimensions | 168 mm x 80 mm x 210 mm (LxHxW) |
| Display | LED Display |
| In-Use Cover | Available as an Accessory |
| Legal for Trade | Not Applicable |
| Net Weight | 1.4 kg |
| Power | AC Power (Included); Rechargeable Battery (Included) |
| Stabilization Time | 1 s |
| Tare Range | To capacity by subtraction |
| Units of Measurement | Kilogram; Gram |
| Working Environment | 14°F – 104°F, 85%RH, non-condensing (-10°C – 40°C, 85%RH, non-condensing) |
ACCESSORIES
|
Item Number 30045641 Description Printer, Impact, SF40A |
|||
|
Item Number 80500525 Description Cable RS232 IBM 9P Male-to-Female |
|||
|
Item Number 30304102 Description Interface Kit, RS232-Ethernet |
|||
|
Item Number 30304101 Description Interface Kit, RS232-USB |
|||
|
Item Number 30101017 Description In-Use-Cover, T24P T31P |
|||
