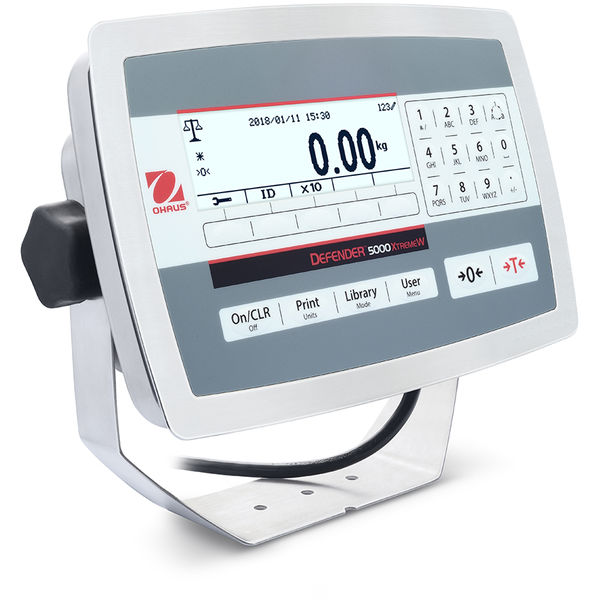

TD52XW
Multifunctional Indicator for Standard Industrial Applications
| Resolution | 75,000 |
| Resolution (Certified) | 10,000 |
| Battery Life | 20 Hours with Rechargeable Battery |
| Item Number: | 30424081 |
OVERVIEW
The OHAUS next generation Defender 5000 Series multifunctional indicator is ideal for use in conjunction with bench and floor scales for a multitude of applications including production, packaging, inventory and shipping. Built durably and equipped with advanced features such as maximum configurability print output, GMP/GLP data output, library/user management and multiple connectivity options - the Defender 5000 Series is designed to handle demanding industrial and commercial applications.
Applications
Weighing, Parts Counting, Percent Weighing, Check Weighing, Dynamic Weighing (Display Hold), Filling
Display
Backlit Liquid Crystal Display (LCD), 256 x 80 pixels
Operation
Internal power supply with power cord (included) or rechargeable battery (sold separately as an accessory)
Communication
Easy access communication ports including RS232 and Micro SD slot (included), second RS232/RS485/USB device, Ethernet and WiFi/Bluetooth, Discrete I/O and Analog Output (sold separately as accessories); GLP/GMP data output with real-time clock
Construction
IP68/NEMA 4X stainless steel housing and mounting bracket
Design Features
Check weighing symbols with selectable operation and audible signal settings, menu lock switch, multiple operating languages, selectable environmental and auto-print settings, stability indicator, overload/underload indicators, selectable adjust contrast settings, auto-dim, auto-off, auto tare, screensaver
SPECIFICATIONS
| Resolution | 75,000 |
| Resolution (Certified) | 10,000 |
| Battery Life | 20 Hours with Rechargeable Battery |
| Outputs | 4 - 20mA; 2 In/4 Out digital I/O |
| Second Scale Input | Not Applicable |
| Protection Rating | IP68 |
| Communication | Ethernet (Available as an Accessory); 2nd RS232/RS485/USB (available as an accessory); RS232 (Included); USB Host (Available as an Accessory); WiFi/Bluetooth (available as an accessory) |
| Dimensions | 10.6 in x 8.7 in x 3 in (270 mm x 222 mm x 76 mm) (LxHxW) |
| Display | Dot matrix LCD with white LED backlight |
| Legal for Trade | EC Type Approvable; OIML |
| Net Weight | 4.4 lb (2 kg) |
| Power | Rechargeable Battery (Not Included); AC Power (Included) |
| Protection Rating | IP68 |
| Tare Range | To capacity by subtraction |
| Units of Measurement | Metric Tons; Gram; Kilogram; Pound; Tonne; Custom; Ounce; Pound:Ounce |
| Working Environment | 14°F – 104°F, 85%RH, non-condensing (-10°C – 40°C, 85%RH, non-condensing) |
ACCESSORIES
|
Item Number 30424404 Description 2nd RS232/RS485/USB Kit TD52 DT61XW |
|||
|
Item Number 30045641 Description Printer, Impact, SF40A |
|||
|
Item Number 30424021 Description Alarm Beacon Kit 3 Colors 243mm OHAUS |
|||
|

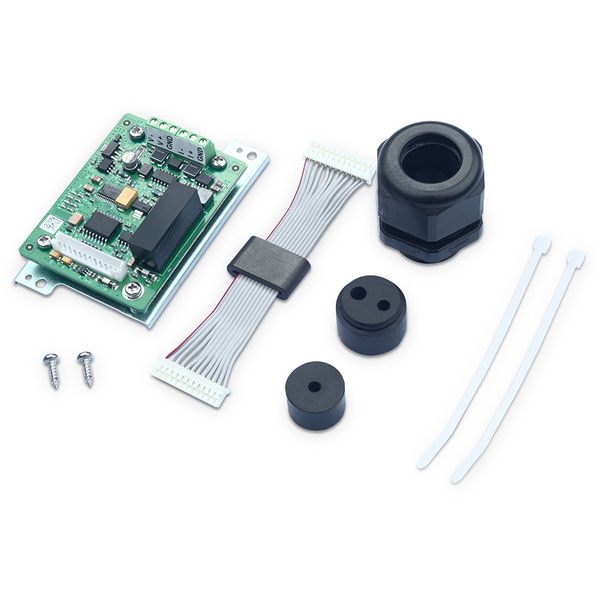

Item Number 30424403 Description Analog Output Kit, TD52 DT61XW |
|||
|
Item Number 30472064 Description Auxiliary display AD7-RS |
|||
|
Item Number 30424409 Description Cable Extension 9m D52 |
|||
|
Item Number 80500552 Description Cable RS232 XW Indicators |
|||
|
Item Number 30097591 Description Discrete I/O Kit, R71 TD52 DT61XW |
|||
|
Item Number 30429666 Description Ethernet kit Defender Series |
|||
|
Item Number 30379716 Description Gland M16 D52 |
|||
|
Item Number 30424023 Description In-Use-Cover, TD52XW |
|||
|
Item Number 30303533 Description Micro SD Card |
|||
|
Item Number 30424405 Description Rechargeable battery Li-ion TD52 |
|||
|
Item Number 30424406 Description USB Host Interface for Dongle TD52 |
|||
|
Item Number 30424026 Description Wall Mount Kit, SST, TD52XW |
|||
|
Item Number 30412537 Description Wireless Dongle MTICWD-200 |
|||
