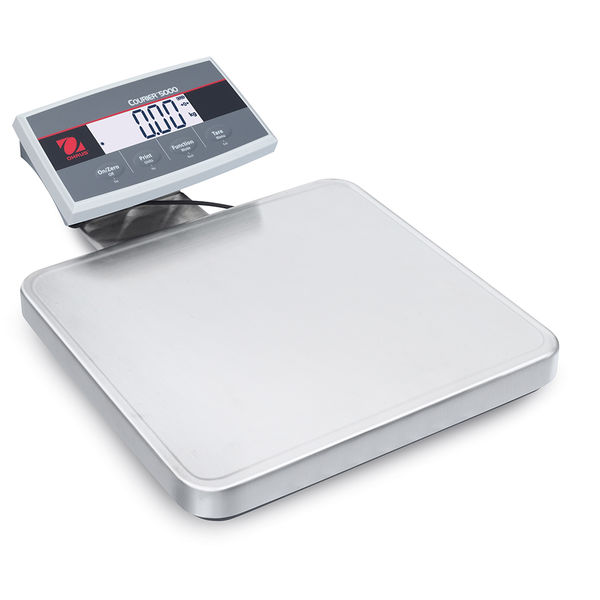

COURIER™ 5000
Low-Profile Scales Ideal for General Shipping and Animal Weighing Applications
| C52M6R | C52M30R | C52M50R | C52M100L | C52M200L | |
| Maximum Capacity | 6 kg | 30 kg | 50 kg | 100 kg | 200 kg |
| Readability | 0.002 kg | 0.01 kg | 0.02 kg | 0.05 kg | 0.1 kg |
| Platform Size | 319 mm x 329 mm | 319 mm x 329 mm | 319 mm x 329 mm | 400 mm x 520 mm | 400 mm x 520 mm |
| Item Number: | 30820402 | 30820403 | 30820404 | 30820406 | 30820407 |
OVERVIEW
| The Courier 5000 Series shipping scales feature a sturdy low-profile design with stainless steel top, making them tough enough for shipping applications and easy to clean for small veterinary applications. Data is clearly legible on a large, bright 1.1 in/28 mm display, and UPS system communication protocol is included. Our proprietary “Weight Alert” mode will warn users if packages are too heavy, for example, to be sent by post or truck. |
Applications Weighing, Dynamic Weighing/Display Hold, Weight Alert, Totalization |
|
Display 5-digit, 7-segment LCD display with white backlight, 1.1 in/28 mm-high digits |
|
|
Operation Standard AC adapter or USB type C cable (included) or 3 AA Batteries (not included) |
|
|
Communication Standard USB type C |
|
|
Construction ABS indicator, 304 stainless steel platform, powder-coated frame |
|
|
Design Features 150% overload protection |
SPECIFICATIONS
| C52M6R | C52M30R | C52M50R | C52M100L | C52M200L | |
| Maximum Capacity | 6 kg | 30 kg | 50 kg | 100 kg | 200 kg |
| Readability | 0.002 kg | 0.01 kg | 0.02 kg | 0.05 kg | 0.1 kg |
| Platform Size | 319 mm x 329 mm | 400 mm x 520 mm | |||
| Battery Life | 100 Hours with Disposable Batteries | ||||
| Legal for Trade | No | ||||
| Dimensions | 527 mm x 129.4 mm x 329 mm (LxHxW) | 632 mm x 131.9 mm x 520 mm (LxHxW) | |||
| Tare Range | To capacity by subtraction | ||||
| Working Environment | -10°C – 40°C, 85%RH, non-condensing | ||||
| Platform Construction | Stainless Steel | ||||
| Net Weight | 4.1 kg | 8.5 kg | |||
| Second Scale Input | Not Applicable | ||||
| Protection Rating | Not Applicable | ||||
| In-Use Cover | No | ||||
| Transportation Case | Not Applicable | ||||
| Communication | USB (Included) | ||||
| Power | USB Cable (Included); 3 AA (LR6) Batteries (Not Included); AC Adapter (Included) | ||||
| Units of Measurement | Gram; Kilogram | ||||
| Display | 7 segment LCD with backlight | ||||
| Outputs | Not Applicable | ||||
ACCESSORIES
|

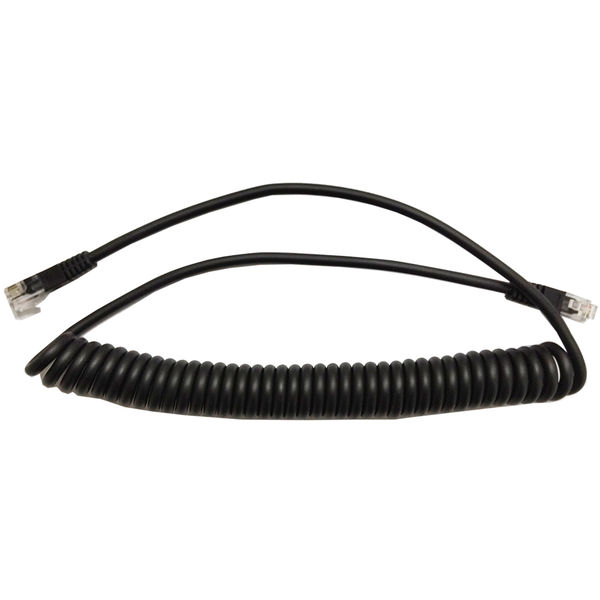

Item Number 30809920 Description Cable base indicator 9m i-C51 i-C31 |
|
|
Item Number 30800931 Description Remote Column Kit i-C71_i-C52 CS 330 mm |
|
|
Item Number 30795819 Description Remote Column Kit i-C71_i-C52 CS 980 mm |
|
|

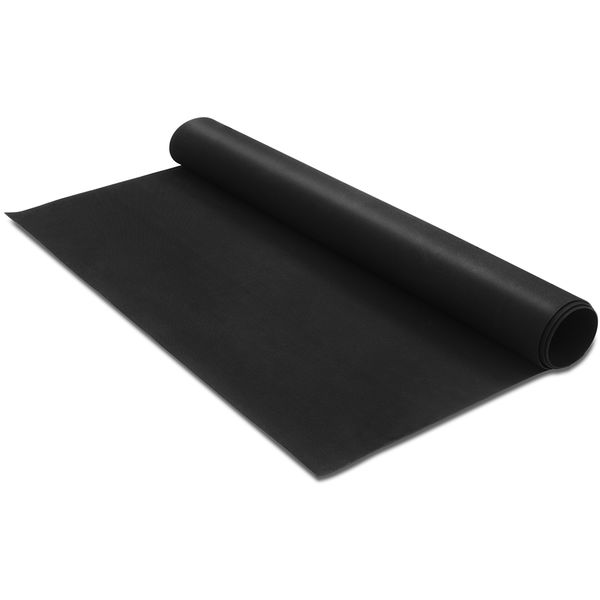

Item Number 30548975 Description Rubber Mat Kit Antiskid C52 600 x 900 |
